NuAire NU-640 Class II, Type A2 Animal Handling BioSafety Cabinet
Item#: NU-640The upgraded NuAire NU-640 Class II, Type A2 Animal Handling BioSafety Cabinet features a large work access opening needed to work with large cages in a low-profile configuration designed to fit in vivarium's with low ceiling heights. The versatile design motorized height adjustment eases installation into otherwise inaccessible vivariums and adaptation to individual cabinet users’ ergonomic needs. A built-in footrest enhances comfort for standing operators. Built for a broad range of cage changing applications, the hinged window with a 14-inch (356mm) access opening allows a technician to introduce rat cages into the work zone with ample arm room to reach the interior area of the cage. The flat work surface can be easily raised and rested on support rods to access and maintain the pre-filter located underneath. The steel construction of the biosafety cabinet forms a core structure that will endure years of use. Simultaneously, an Ultra-high efficiency motor located at the bottom of the console design ensures enough reserve power to compensate for filter loading. The Aeromax™ control system visualizes plenum pressure and cabinet performance through a series of LED lights, raising an alarm if necessary.

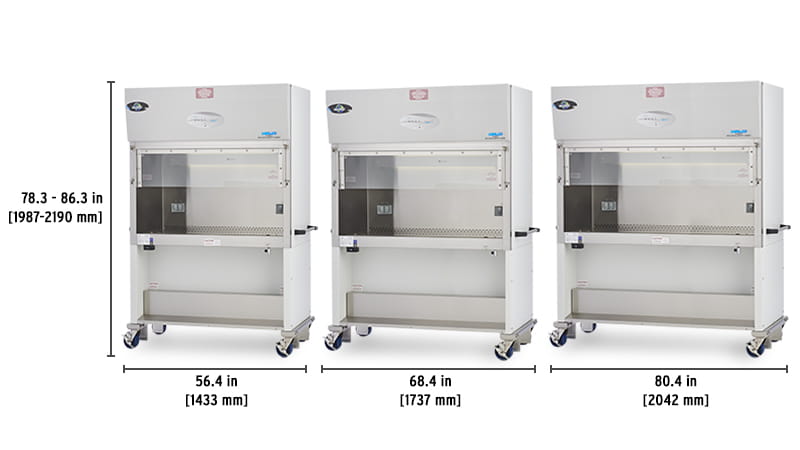

- Available in 4, 5 & 6 foot widths
- Air Cleanliness (ISO 14644)- ISO-Class-5
- Airflow Monitor - Pressure
- Bag In Bag Out- N/A
- Cabinet Construction- All welded stainless steel 16/18 gauge, Type 304 pressure tight design
- Casters- 5" (13mm) Casters Standard
- Control System- AeroMax
- Cord Pass Through- N/A
- Data Output Features- RS-232
- Decontamination Seal-able Window- N/A
- Diffuser - Metal, non-flammable
- Downflow fpm (m/s)- 60 fpm (0.30 m/s)
- Drain Valve Location- Front right
- Electrical Configuration - 115V60Hz, 230V5060Hz
- Front & Control Panel Material- Painted Steel
- Fumigation: per NIH/NSF Procedures- True
- HEPA Filter Seal Type- HEPEX Zero Leak Neoprene Seal, Spring-loaded
- Inflow fpm (m/s)- 105 fpm (0.53 m/s)
- IV Bar with 6 Hooks- N/A
- Light Intensity fc (Lux)- 90-120 (968-1291)
- Motorized Base Stand- Included
- Motorized Window- N/A
- Other Built-in Exhaust Option(s) - N/A
- Other Built-in Supply Filter Option(s)- N/A
- Outlet(s)- Standard, two backwall
- Performance Standard
- Plenum Type- HEPEX
- Power Cord Length Foot (Meter)- 12 (3.7)
- Pre-filter- Mesh, under work surface0
- Protection- Product, Personnel, Environmental
- Reach into workzone Inches (mm)- 6 (152)
- Remote Alarm Terminals- Standard
- Safety Certification
- Style- Console
- Ultraviolet (UV) Light- N/A
- Viewing Window Inches (mm)- 23.875 (607) Safety Glass/Hinged
- Work Access Opening(s) - 14-inches (356 mm)
- Work Surface- One-Piece Flat Stainless Steel with Prop-Up Rod
AEROMAX CONTROL SYSTEM
The AeroMax control system visualizes airflow plenum pressure through a series of multicolored lights and activates both an audible and visual alarm whenever cabinet performance departs from normal parameters.
ERGONOMIC EFFICIENCY
The NU-640 offers the trifecta of low cabinet height, high window opening, and ergonomic height adjustment to fit not only the space constraints of your lab but also the access needs of your cages and the preferences of your cabinet operators.

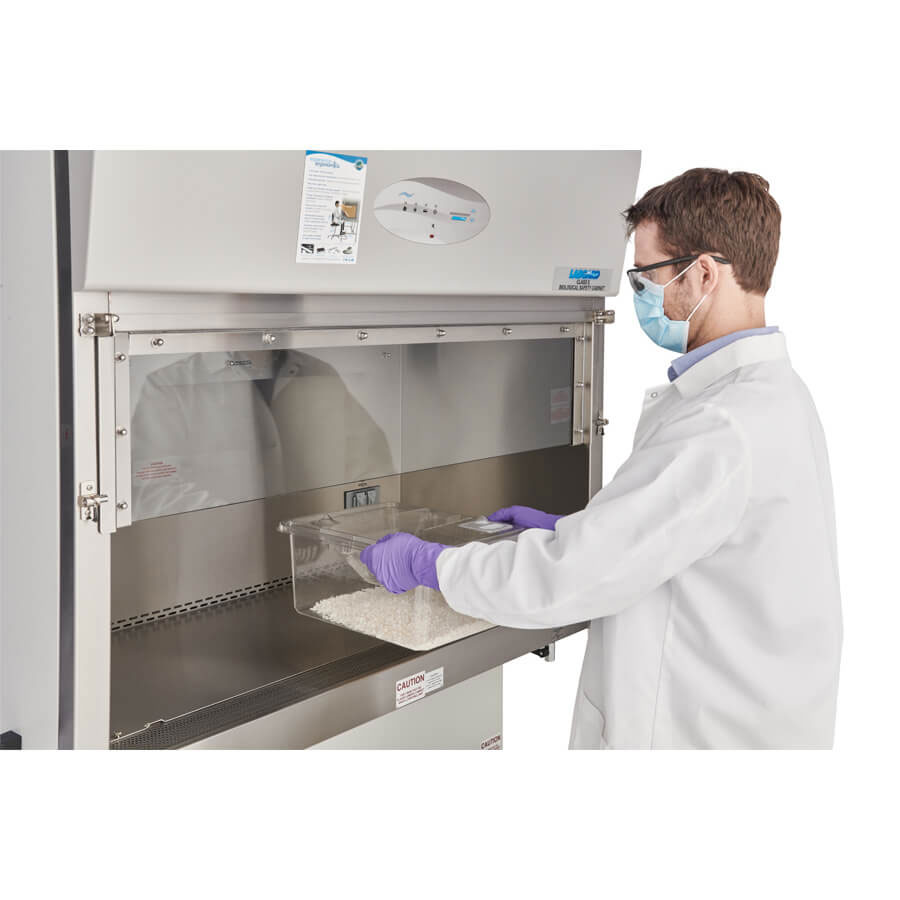

14-INCH FRONT ACCESS OPENING
The NU-640 offers the largest work access opening of any NuAire cabinet to meet the particular demands of vivarium needing to move larger rat cages in and out of their cabinets with ease. Once conveniently placed inside, the 14-inch (356mm) access height also allows operators to easily reach down into those opened cages to carry out their procedures with room to spare.

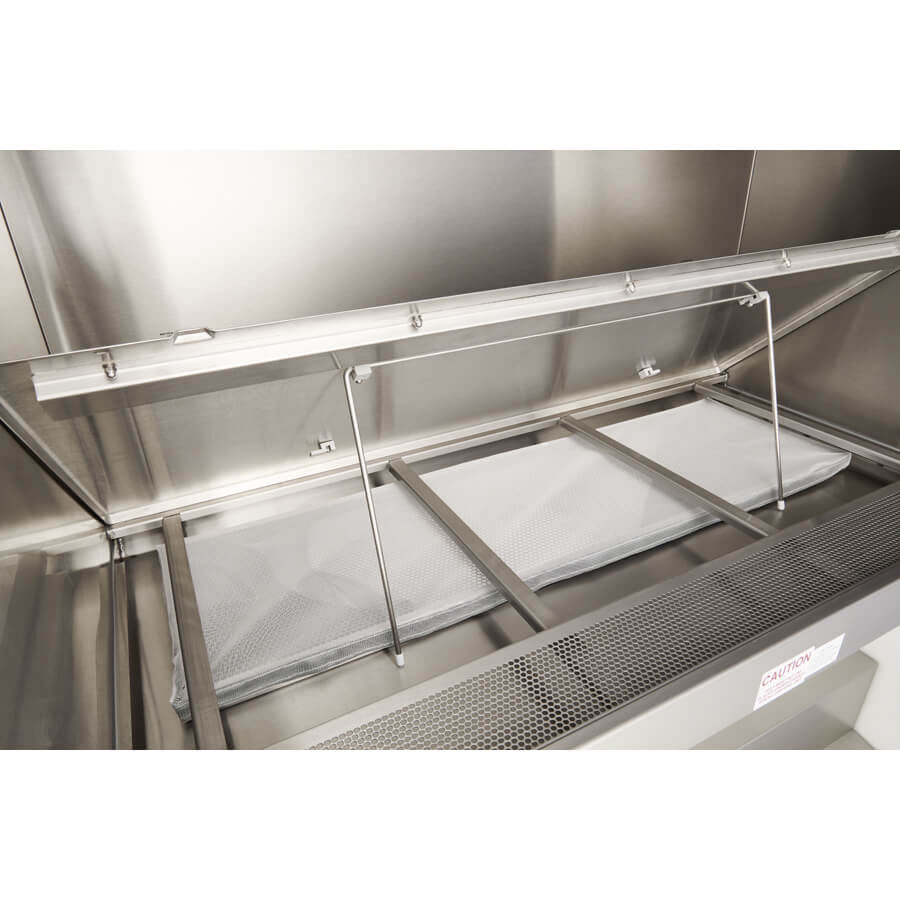

PREFILTER UNDER THE SURFACE
A normal biosafety cabinet’s HEPA filters may not last long in a vivarium, where hair and dander can more quickly saturate them. That is unless the cabinet is adapted for this particular environment by using a pre-filter to strain out the larger elements and leave the HEPA filters to contend with smaller particulate. The placement of this pre-filter under the work surface makes it easy to remove and maintain as needed.
WARRANTY
5 Years Parts & Labor (Filters Included, Excluding Pre-Filter) (United States and Canada)
STANDARD FEATURES
- Single DC ECM Motor
- Flexible HEPEX™ Plenum
- Nite Care Mode
- Stainless Steel Work Zone Side & Back Walls
- Stainless Steel Flat Work Surface
- 14 inch (356mm) Hinged Work Access Opening
- Two Outlets on Back Wall
- LED Lighting
- Digital Pressure Sensor
- Aeromax™ Control System
- Prop Up Work Tray
- Prefilter Under Work Surface
- Motorized Height Adjustment
- CastorsPull Bars on Both Sides

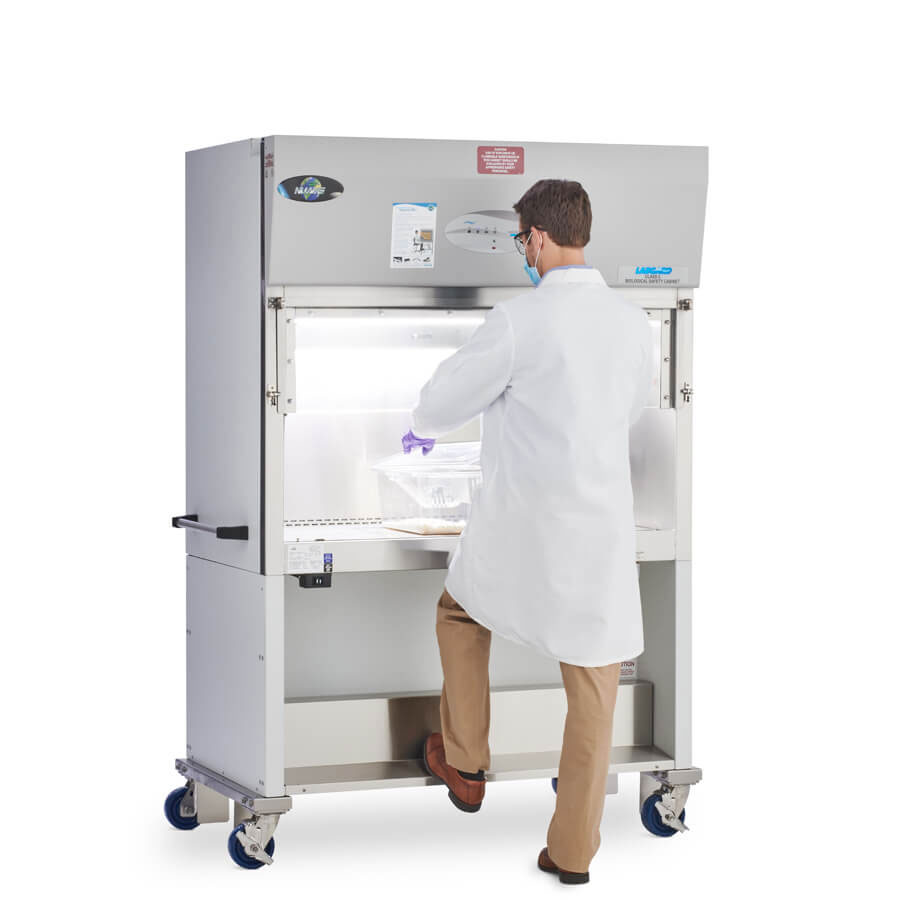

- Built in Footrest
