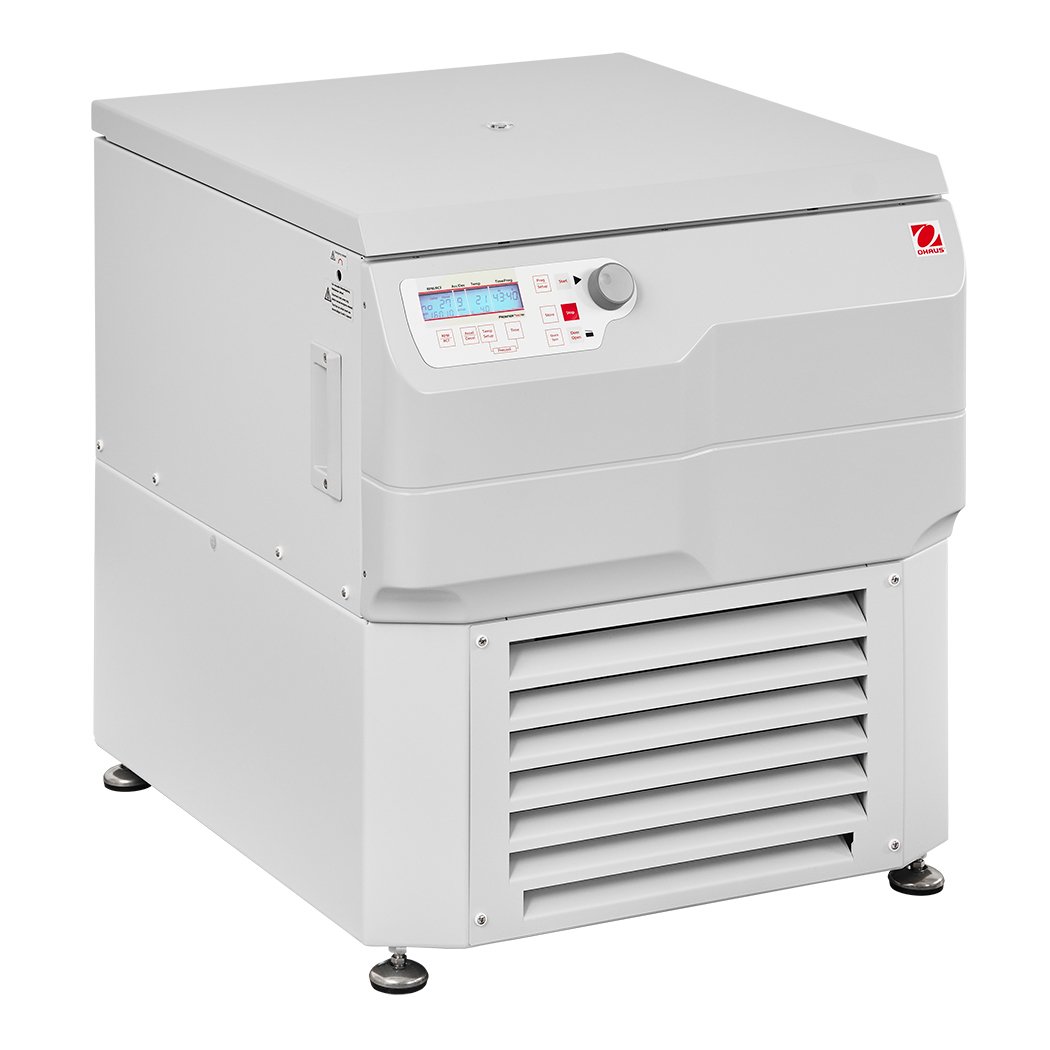

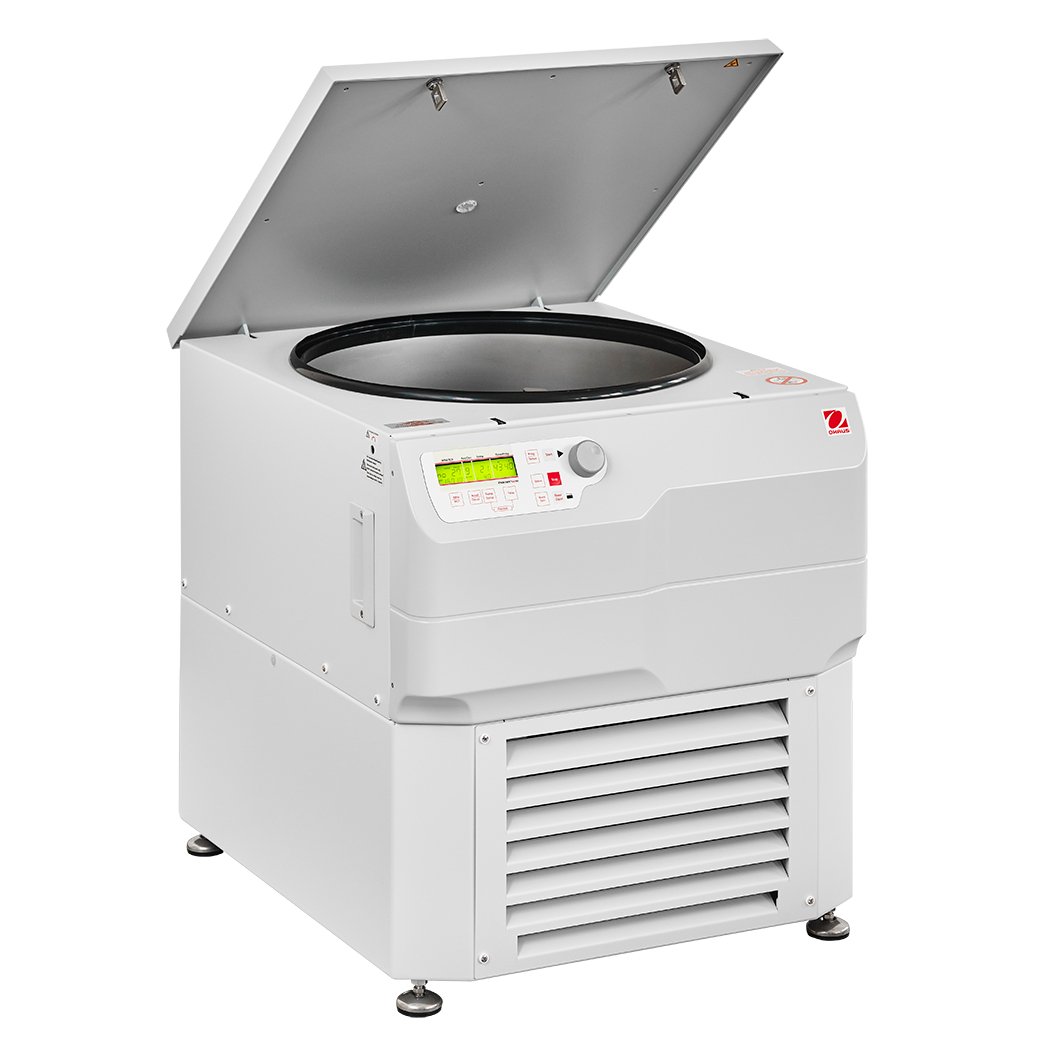

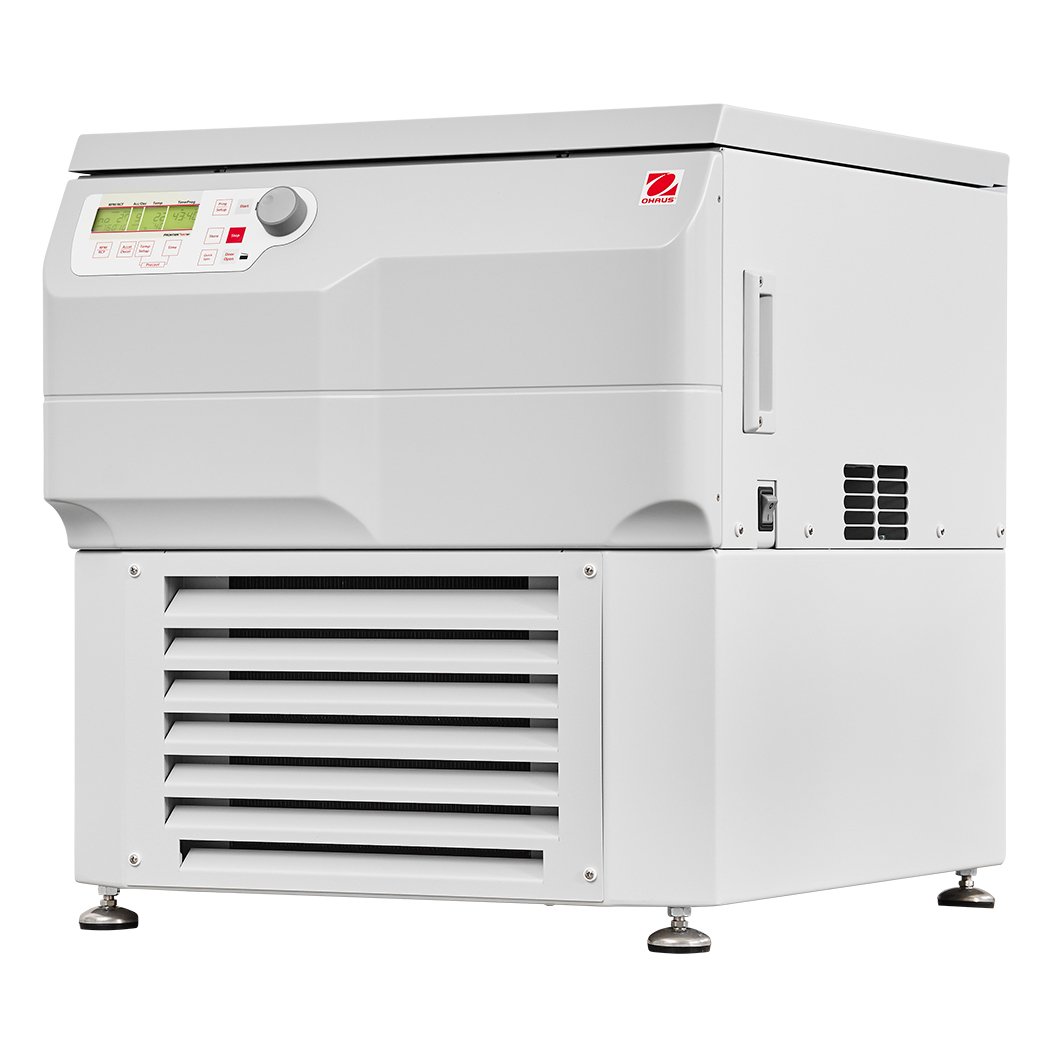

Ohaus Frontier™ High Speed Micro Centrifuge FC5917RF SHORT | 26,361g | 230V
Item#: 83042056The OHAUS Frontier™ 5917RF is a high-capacity refrigerated centrifuge suitable for a wide variety of applications in diagnostic, biotech and industrial labs. FC5917RF has a capacity of up to 4 x 1000 ml and the ability to high-throughput processing of blood bags and collection tubes, urine tubes, variety of bottles and plates in either fixed-angle or swing-out rotor. Available in both floor-standing and under-bench models and boasts high-speed performance at maximum volume, automatic rotor identification, and safety features that provide ergonomic and space-saving benefit.
$16,954.00 $14,410.90
- Speed Range: 200 rpm – 16010 rpm; 10 rpm / increments, Angle Rotor: 16010 rpm, Swing out Rotor: 4600 rpm
- Maximum Relative Centrifuge Force (x g): 26361 x g; 10 x g / increments, Angle Rotor: 26361 x g, Swing out Rotor: 5204 x g
- Maximum Capacity (rotor): Angle Rotor: 6 x 250 ml Swing out: 4 x 1000 ml
- Refrigeration Range: -20 °C to 40 °C (1 °C/increments)
- Ambient temperature: 5 °C up to 35 °C
- Max. relative humidity: Max. relative humidity 80 % for temperatures up to 31 °C/Decreasing linearly to 50 % relative humidity up to 35 °C.
- Refrigerant: R290 (Propane)
- Running Time: Quick Spin, 10 sec to 99 hr 59 min, or continuous
- Noise Level: ≤63 + 2 dB(A)
- Acc/Dec Levels: 10/10
- Allowable Density at Maximum Speed: 1.2 g/ml
- Allowable Kinetic Energy: 70412 Nm
- AC Power: 230 V/50-60 Hz
- Voltage Fluctuation: ± 10%
- Current Consumption: 13A
- Power Consumption: 2.3 kW
- Dimensions (WxDxH): 24.4 x 27.2 x 27.6 in (620 x 690 x 700 mm)
- Shipping Dimensions (WxDxH): 36.6 x 30.7 x 36.6 in (930 x 780 x 930 mm)
- Net Weight (without rotor): 346 lb/157 kg
- Shipping Weight (without rotor): 403 lb/183 kg
- For indoor use only
- Use up to an altitude of 2000 m
|
Tube Type |
Tube Dimensions | # of tubes per centrifuge |
| Microtubes |
5 ml (Ø 16.5 × 69 mm) |
96 |
| Blood Collection Tubes |
1.8 – 5 ml (Ø 13 × 75 mm) |
192 |
|
4 – 7 ml (Ø 13 × 100 mm) |
192 |
|
|
6 – 10 ml (Ø 16 × 100 mm) |
152 |
|
| Conical Tubes |
15 ml (Ø 17 × 120 mm) |
96 |
|
50 ml (Ø 29 × 116 mm) |
40 |
|
|
175 ml (Ø 61 × 118 mm) |
8 |
|
|
225 ml (Ø 61 × 137 mm) |
8 |
|
| 250 ml (Ø 60 × 159 mm) |
4 |
|
|
500 ml (Ø 97 × 148 mm) |
4 |
|
|
Vials & Bottles |
15 ml Round Bottom (Ø 17 × 120 mm) |
72 |
|
50 ml Round Bottom (Ø 29 × 116 mm) |
40 |
|
|
100 ml Round Bottom (Ø 44 × 100 mm) |
12 |
|
|
250 ml Flat Bottom (Ø 62 × 122 mm) |
8 |
|
|
290 ml Flat Bottom (Ø 62 × 137 mm) |
8 |
|
|
500 ml Flat Bottom (Ø 98 x 114 mm) |
4 |
|
|
750 ml Flat Bottom (Ø 98 x 152 mm) |
4 |
|
|
1000 ml Flat Bottom (Ø 98 x 172 mm) |
4 |
*Not suitable for use in hazardous environments.
-
The FC5917RF model is available in two options: as a floor-standing unit or an under-bench unit, maximizing lab space and storage
-
Thanks to its ergonomically designed height, the work area has been optimized, allowing for easy loading and unloading of samples
-
Integrated wheels make it easy to move around, lending to even more flexibility
-
FC5917RF features a convenient storage drawer, perfect for keeping your accessories organized and easily accessible
-
Locking mechanism secure the centrifuge feet, ensuring stability during use
-
6 rotor configurations for a broad spectrum of applications and workflows
-
From high-throughput samples all the way to cell and blood separation
-
Capacity of up to 4 ×1000 ml with the ability to spin up to 192 blood tubes or 96 15 ml conical tubes and 40 50 ml conical tubes
- Automatic rotor identification makes switching between applications extremely easy
- Simple one-hand operation enabled by the selection button / rotary knob combination – even when wearing gloves
- Intuitive, easy-to-read backlit LCD display shows centrifugation settings and real-time parameters on one interface
- Store up to 99 runs for easy recall, including parameter settings and rotor types
- Maintenance-free induction motor provides maximum G-force of 26361 × g
- Chemical and corrosion-resistant stainless steel rotor chamber ensures cleanability in lab environments
- Self-diagnostic program to record usage and error history for easy maintenance and to minimize downtime
- FC5917RF has refrigeration capabilities from 40 °C to -20 °C
- R290, an environmentally friendly coolant, contributes to the eco-friendliness of refrigerated centrifuges by minimizing their environmental impact and supporting efforts to combat global warming
- Pre-cool feature quickly lowers the temperature of rotor and chamber before a run
- Over-speed protection, immediately upon rotor insertion
- Active imbalance-detection with individual imbalance tolerances set for each rotor
- Motorized lid-locking system to protect operators from accidental injuries
- Sealed and TÜV certified rotors to safeguard operators from harmful aerosols
- The rotor cycle counter enhances safety by monitoring the number of centrifugation cycles, providing timely alerts for rotor
