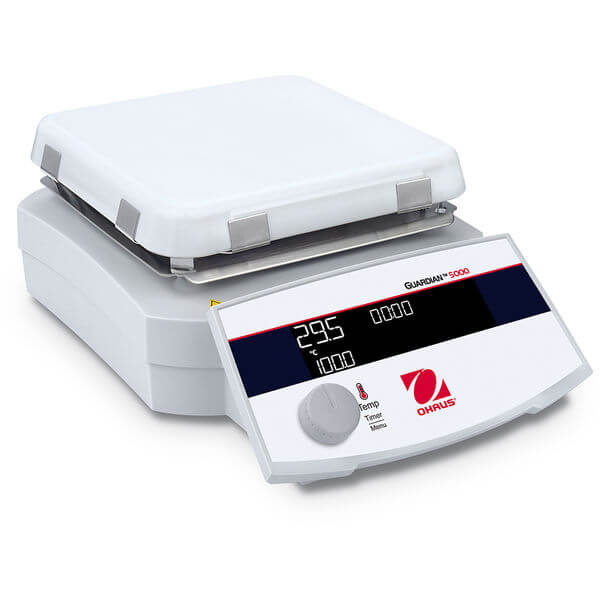

Ohaus Guardian™ 5000 Hotplate e-G52HP07C | Plate Size 7″ x 7″ (18 x 18 cm)
Item#: 30541633The Ohaus Guardian™ 5000 Hotplate e-G52HP07C is designed for precise heating applications in temperature-sensitive chemistry and biology, including solution preparation, buffer dissolution, sterilization, and endothermic reactions. It features a backlit LCD display with clear status indicators, rotary knob controls, and RS232 connectivity for data logging and remote operation. Built with a robust metal housing, chemical-resistant ceramic-coated top plate, and safety-focused design features such as over-temperature indicators and audible alarms, it delivers reliable performance for everyday laboratory heating tasks.
New Lab Limited Time Offer
Now through July 31st, 2026, get an additional 5% off on this product. Enter promo code at checkout: NEWLAB5
$539.00 $485.10
- Function: Heating
- Plate Construction: Ceramic
- Plate Size: 7 in x 7 in (178 mm x 178 mm)
- Temperature Range: Ambient + 5°C – 550°C
- Calibration: Temperature Calibration 3 Plate/3 Probe
- Communication: Ethernet (Available as an Accessory); USB (Available as an Accessory); RS232
- Control: Digital
- Dimensions (LxHxW): 12.94 in x 4.56 in x 8.69 in (329 mm x 116 mm x 221 mm)
- Display: High contrast brilliant LCD display
- Net Weight: 8.6 lb (3.9 kg)
- Power: 100V-120V~ 15A 50/60Hz
- Safety Certification: CE; TUV
- Temperature Probe: Pt100; Pt1000; Available as an Accessory
- Temperature Stability: +/-1% Plate, below 100°C +/-1°C and +/-0.5% Probe, below 100°C +/-0.5°C
- Timer: 1 minute – 99 hours, 59 minutes
- Working Environment: 5°C – 40°C, 80% RH, Non-condensing (41°F – 104°F, 80% RH, Non-condensing)
- Applications: Temperature Sensitive Chemistry and Biology, Heat Fixation, Solution pH Optimization, Solution Sterilization, Endothermic Reactions, Denaturing of Organic Material, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Boiling
- Display: Backlit LCD display with white characters, integrated heating/stirring status indicators in green and a prominent hot top indicator in yellow
- Operation: 100-120 VAC or 220-240VAC 50/60Hz power entry, rotary switch knob(s) control
- Communication: RS232 for data logging and remote control
- Construction: Robust full metal housing, ceramic square top plate or ceramic-coated aluminum round top plate, high performance SmCo magnet
- Design Features: Large dip angle front panel for easy monitoring from a distance, smooth enclosure surfaces for easy cleaning, audible alarm, IP32 protection, rapid install splashing shield (optional)
