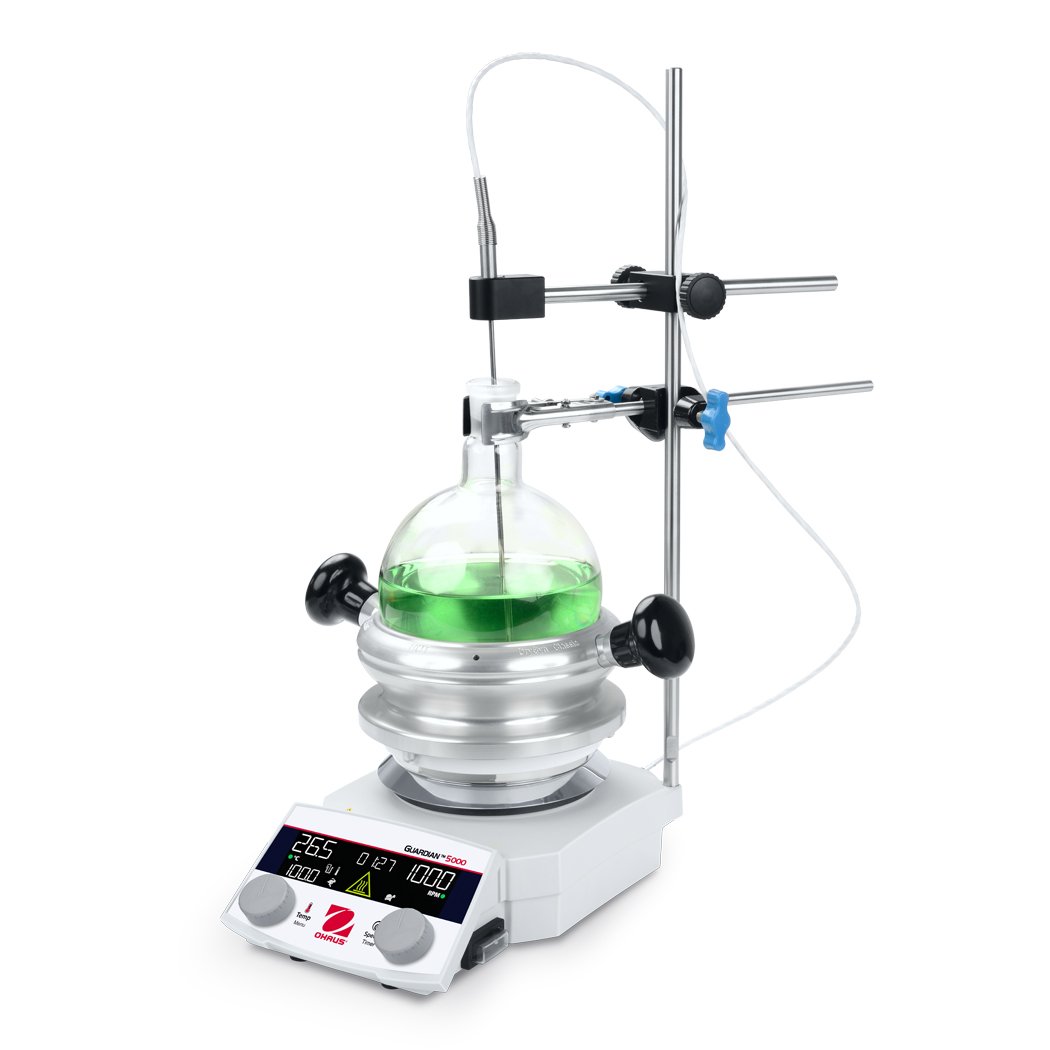

Ohaus GUARDIAN™ 5000 Hotplate Stirrer With Synthesis Kit for 1000mL Flask Capacity
Item#: 31076461The new Guardian™ 5000 synthesis kits are designed for safe, clean heating with standard round-bottom flasks. Our goal is to make it easier for chemists to assemble, replace, and maintain experimental setups. The range includes 3 basic kits, each featuring a Guardian™ 5000 hotplate stirrer and a base block compatible with 250 mL, 500 mL, or 1000 mL flasks. Additionally, 18 insert blocks accommodate smaller flasks down to 25 mL.
$1,650.00
- Flask Capacity of Block Base within The Kit: 1000 mL
- Outer Diameter of Block Base with Handles: 265 mm
- Outer Diameter of Block Base without Handles: 162.3 mm
- Max. Flask Diameter: 131.3 mm
- Height of Block Base: 65.5 mm
- Depth of Block Recess: 62.2 mm
- Flask Capacity of Optional Block Inserts: 25, 50, 100, 250, 500 mL
- Block Material: 6082 T651 Aluminum Alloy
- Block Weight: 2.22 kg
- Block Working Temperature Limit: 300 °C
- Temperature Probe within The Kit: 30500590 Stainless Steel Probe, PT1000 (Class A), -40 – 400 °C
- Probe Holder within The Kit: 30973298 (a stand rod, a double clamp, and a probe holding arm)
- Flask Clamp within The Kit: Stainless Steel, Grip Range 9.5–50 mm, Arm Length 19 cm, Total Length 28 cm (and an attached double clamp)
- Temperature Range Ambient: + 5 °C – 360 °C
- Temperature Increment & Readability: 0.5 °C
- Heating Power: 600 W at 120 V / 656 W at 230 V
- Speed Range: 50 – 1800 rpm
- Electrical: (50/60 Hz) 100 – 120 V, 8 A / 220 – 240 V, 4 A
- Dimension (LxWxH): 10.21" x 6.87" x 4.26"
- Weight: 11.02 lbs.
- As a safer alternative to oil bath, the synthesis kits eliminate the risks of oil fires, spills, and toxic fume emissions. The base blocks include 2 heat-resistant handles
for safe handling when hot. - Compared to traditional heating mantles, the synthesis kits provide precise, uniform heating. Their low-well design prevents glassware cracking or jamming and ensures excellent reaction visibility.
- As flask sizes vary, the compact insert blocks help users save costs by avoiding multiple base blocks. Thanks to high-precision machining, inserting and removing them is as easy as building blocks.
- Benefit from a chemical and solvent-resistant anodized finish, the blocks are durable and easy to clean. No water waste since water baths are not used. Also, there is no need to dispose of used oil.
