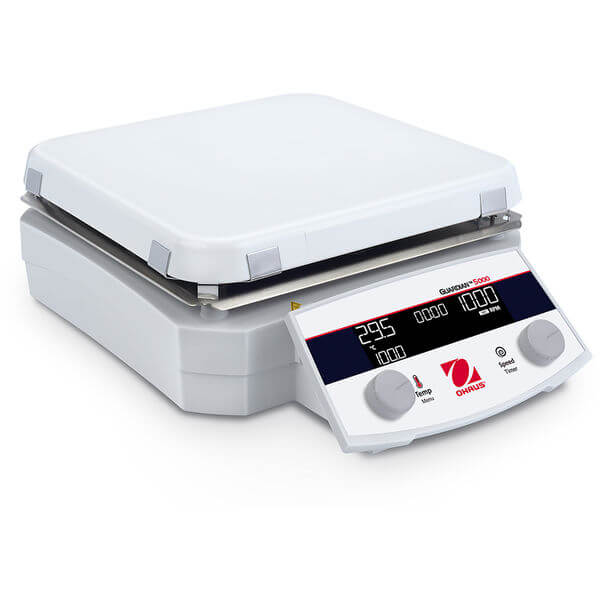

Ohaus Guardian™ 5000 Hotplate e-G52HS10C | 22L | Plate Size 10″ x 10″ (26 x 26 cm)
Item#: 30541637The Ohaus Guardian™ 5000 Hotplate e-G52HS10C is designed for dependable heating in temperature-sensitive chemistry and biology applications such as solution preparation, sterilization, buffer dissolution, and endothermic reactions. It features a backlit LCD display with clear status indicators for heating, stirring, and hot surface warnings, along with intuitive rotary knob controls for precise and easy operation. Built with a durable full metal housing, a large 10" x 10" chemical-resistant top plate, RS232 communication, and integrated safety features, it provides reliable and secure performance for everyday laboratory workflows.
$1,087.00 $978.30
- Function: Heating and Stirring
- Capacity: 22L
- Plate Construction: Ceramic
- Plate Size: 10 in x 10 in (26 cm x 26 cm)
- Temperature Range: Ambient + 5°C – 550°C
- Speed Range: 50 rpm – 1,800 rpm
- Calibration: Temperature Calibration 3 Plate/3 Probe
- Communication: Ethernet (Available as an Accessory); USB (Available as an Accessory); RS232
- Control: Digital
- Dimensions (LxHxW): 15.84 in x 4.65 in x 11.28 in (402 mm x 118 mm x 287 mm) (LxHxW)
- Display: High contrast brilliant LCD display
- Net Weight: 14.8 lb (6.7 kg)
- Power: 100V-120V~ 15A 50/60Hz
- Safety Certification: CE; TUV
- Temperature Probe: Pt100; Pt1000; Available as an Accessory
- Temperature Stability: +/-1% Plate, below 100°C +/-1°C and +/-0.5% Probe, below 100°C +/-0.5°C
- Timer: 1 minute – 99 hours, 59 minutes
- Working Environment: 5°C – 40°C, 80% RH, Non-condensing (41°F – 104°F, 80% RH, Non-condensing)
- Applications: Temperature Sensitive Chemistry and Biology, Heat Fixation, Solution pH Optimization, Solution Sterilization, Endothermic Reactions, Denaturing of Organic Material, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Boiling
- Display: Backlit LCD display with white characters, integrated heating/stirring status indicators in green and a prominent hot top indicator in yellow
- Operation: 100-120 VAC or 220-240VAC 50/60Hz power entry, rotary switch knob(s) control
- Communication: RS232 for data logging and remote control
- Construction: Robust full metal housing, ceramic square top plate or ceramic-coated aluminum round top plate, high performance SmCo magnet
- Design Features: Large dip angle front panel for easy monitoring from a distance, smooth enclosure surfaces for easy cleaning, audible alarm, IP32 protection, rapid install splashing shield (optional)
