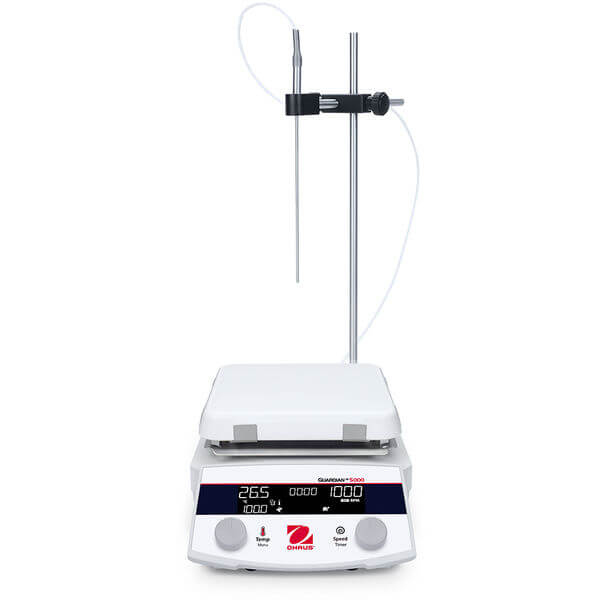

Ohaus Guardian™ 5000 Hotplates & Stirrers e-G52HS07C 115V AM -K1 | 20L | Plate size 7 in x 7 in (18 cm x 18 cm)
Item#: 30981778The Ohaus Guardian™ 5000 Hotplates & Stirrers e-G52HS07C is designed for reliable heating and stirring across a wide range of laboratory applications, including chemical preparation, biological workflows, and solution processing. Its durable construction features a robust full metal housing and a 7 in x 7 in ceramic or ceramic-coated aluminum plate for consistent heat distribution and long-term performance. With an intuitive backlit LCD display, RS232 communication for data tracking, and integrated safety features such as hot top indicators and audible alarms, it delivers precision control and enhanced operator safety in demanding lab environments.
$1,075.00 $967.50
- Function: Heating and Stirring
- Capacity: 20 L
- Plate Construction: Ceramic
- Plate Size: 7 in x 7 in (18 cm x 18 cm)
- Temperature Range: Ambient + 5°C – 550°C
- Speed Range: 50 rpm – 1,800 rpm
- Calibration: Temperature Calibration 3 Plate/3 Probe
- Communication: Ethernet (Available as an Accessory); USB (Available as an Accessory); RS232
- Control: Digital
- Dimensions (LxHxW): 12.94 in x 4.56 in x 8.69 in (329 mm x 116 mm x 221 mm) (LxHxW)
- Display: High contrast brilliant LCD display
- Net Weight: 10.1 lb (4.6 kg)
- Power: 100V-120V~ 15A 50/60Hz
- Safety Certification: CE; TUV
- Speed Stability: +/-2%
- Temperature Probe: Pt1000
- Temperature Stability: +/-1% Plate, below 100°C +/-1°C and +/-0.5% Probe, below 100°C +/-0.5°C
- Timer: 1 minute – 99 hours, 59 minutes
- Working Environment: 5°C – 40°C, 80% RH, Non-condensing (41°F – 104°F, 80% RH, Non-condensing)
- Applications: Temperature Sensitive Chemistry and Biology, Heat Fixation, Solution pH Optimization, Solution Sterilization, Endothermic Reactions, Denaturing of Organic Material, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Boiling
- Display: Backlit LCD display with white characters, integrated heating/stirring status indicators in green and a prominent hot top indicator in yellow
- Operation: 100-120 VAC or 220-240VAC 50/60Hz power entry, rotary switch knob(s) control
- Communication: RS232 for data logging and remote control
- Construction: Robust full metal housing, ceramic square top plate or ceramic-coated aluminum round top plate, high performance SmCo magnet
- Design Features: Large dip angle front panel for easy monitoring from a distance, smooth enclosure surfaces for easy cleaning, audible alarm, IP32 protection, rapid install splashing shield (optional)
Request a Proposal
