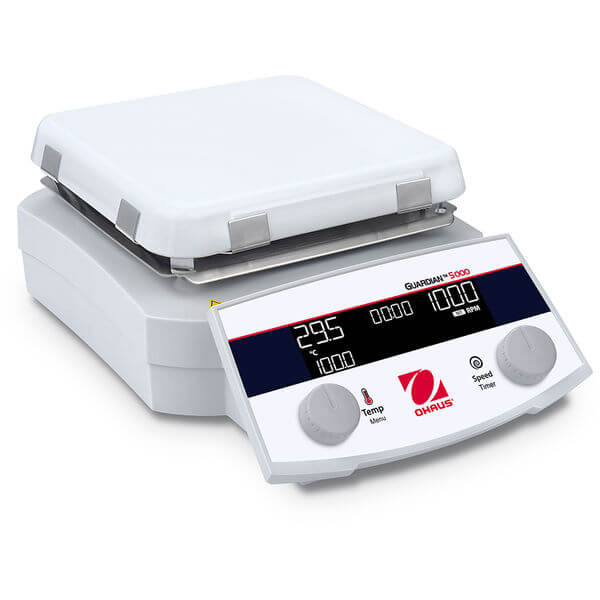

Ohaus Guardian™ 5000 Hotplate e-G52HS07C | 20L | Plate Size 7″ x 7″ (18 x 18 cm)
Item#: 30541631The Ohaus Guardian™ 5000 Hotplate Stirrer e-G52HS07C is designed for reliable heating and stirring in temperature-sensitive chemistry and biology applications, including buffer preparation, sterilization, and sample processing. It features a clear backlit LCD display with status indicators for heating, stirring, and hot surface warnings, along with intuitive rotary knob controls for precise operation. Built with a durable full metal housing, chemical-resistant ceramic-coated top plate, RS232 connectivity, and integrated safety features, it delivers consistent and secure laboratory performance.
$808.00 $727.20
- Function: Heating and Stirring
- Capacity: 20L
- Plate Construction: Ceramic
- Plate Size: 7 in x 7 in (178 mm x 178 mm)
- Temperature Range: Ambient + 5°C – 550°C
- Speed Range: 50 rpm – 1,800 rpm
- Calibration: Temperature Calibration 3 Plate/3 Probe
- Communication: Ethernet (Available as an Accessory); USB (Available as an Accessory); RS232
- Control: Digital
- Dimensions (LxHxW): 12.94 in x 4.56 in x 8.69 in (329 mm x 116 mm x 221 mm)
- Display: High contrast brilliant LCD display
- Net Weight: 10.1 lbs (4.6 kg)
- Power: 100V-120V~ 15A 50/60Hz
- Safety Certification: CE; TUV
- Temperature Probe: Pt100; Pt1000; Available as an Accessory
- Temperature Stability: +/-1% Plate, below 100°C +/-1°C and +/-0.5% Probe, below 100°C +/-0.5°C
- Timer: 1 minute – 99 hours, 59 minutes
- Working Environment: 5°C – 40°C, 80% RH, Non-condensing (41°F – 104°F, 80% RH, Non-condensing)
- Applications: Temperature Sensitive Chemistry and Biology, Heat Fixation, Solution pH Optimization, Solution Sterilization, Endothermic Reactions, Denaturing of Organic Material, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Boiling
- Display: Backlit LCD display with white characters, integrated heating/stirring status indicators in green and a prominent hot top indicator in yellow
- Operation: 100-120 VAC or 220-240VAC 50/60Hz power entry, rotary switch knob(s) control
- Communication: RS232 for data logging and remote control
- Construction: Robust full metal housing, ceramic square top plate or ceramic-coated aluminum round top plate, high performance SmCo magnet
- Design Features: Large dip angle front panel for easy monitoring from a distance, smooth enclosure surfaces for easy cleaning, audible alarm, IP32 protection, rapid install splashing shield (optional)
