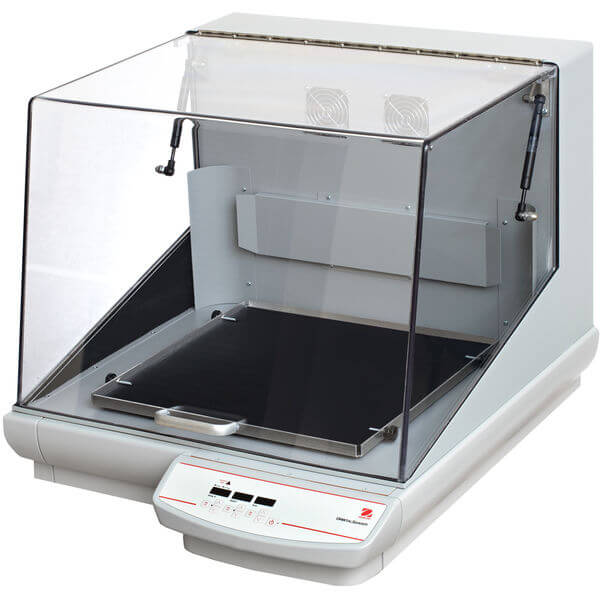

Ohaus Incubating Heavy Duty Orbital Shaker ISHD23HDG | 15 rpm – 500 rpm
Item#: 30573774The Ohaus Incubating Heavy Duty Orbital Shaker ISHD23HDG is designed for reliable and uniform mixing in demanding laboratory workflows, including cell culture, bacterial suspension, solubility studies, and extraction procedures. It features independent LED displays for temperature, speed, and time, along with a precise PID temperature controller and calibration capabilities for consistent and repeatable performance. Built with durable aluminum and Cycoloy construction and equipped with a triple eccentric drive system, load sensing, and multiple safety protections, it delivers stable orbital shaking from 15 to 500 rpm.
$9,563.00 $8,606.70
- Motion: Orbital, 25 mm
- Capacity: 50 lb (22.7kg) @ 125 rpm, 10 lb (4.53kg) @ 500 rpm
- Temperature Range: Ambient +5°C – 65°C
- Speed Range: 15 rpm – 500 rpm
- Tray Size: 18 in x 18 in (457 mm x 457 mm) (LxW)
- Control: Digital
- Calibration: Temperature calibration
- Communication: RS232
- Dimensions: 32.1 in x 23.5 in x 26.6 in (815 mm x 596 mm x 675 mm) (LxHxW)
- Drive System: Triple Eccentric; Brushless DC Motor
- Inner Dimensions: 20.6 in x 17 in x 24.8 in (523 mm x 432 mm x 629 mm) (LxHxW)
- New Weight: 224.07 lb (101.6 kg)
- Power: 120V, 8A, 50/60Hz
- Power Consumption: 800W
- Safety Certification: TUV
- Speed Accuracy: Above 100rpm +/- 1%, Below 100rpm /- 1 rpm
- Timer: 1 second – 160 hours
- Tray Construction: Aluminum
- Uniformity: ± 0.5°C at 37°C
- Working Environment: 59°F – 90°F, 80%RH, non-condensing (15°C – 32°C, 80%RH, non-condensing)
-
Applications: Cell Cultures, Solubility Studies, Bacterial Suspensions, Extraction Procedures
-
Display: Independent LED displays for temperature, speed and time
-
Operation: N/A
-
Communication: RS232
-
Construction: Aluminum and Cycoloy
-
Design Features: Temperature calibration feature, overload protection, overshoot protection (temperature), load sensor, PID temperature controller, Triple Eccentric Drive system
