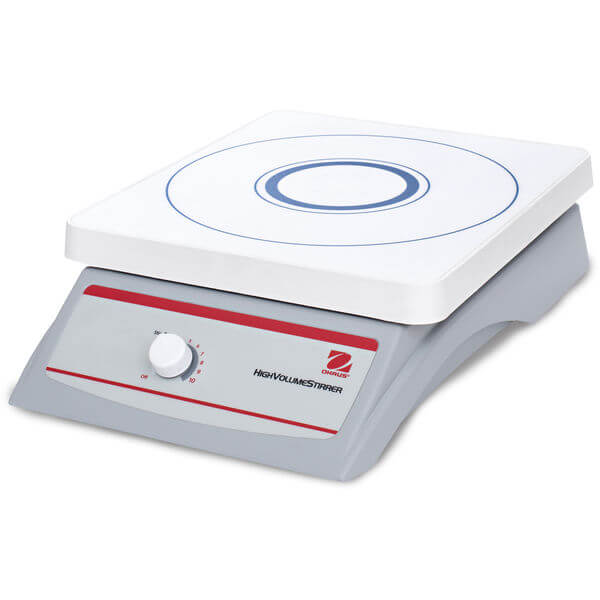

Ohaus STHVAL Large Volume Analog Stirrer | Plate size 12.5 in x 11 in (318 mm x 279 mm)
Item#: 30573809OHAUS offers four models for stirring capacities between 25 to 200 L allowing you to choose the right model for your application. The broad top plate surface allows processing of oversized vessels such as carboys for your large volume stirring. The powerful magnetic drive is also capable of mixing highly viscous materials.
$1,416.00 $1,203.60
- Control: Analog
- Power Consumption: 75 W
- Dimensions: 17 in x 4 in x 11 in (432 mm x 97 mm x 279 mm) (LxHxW)
- Net Weight: 13.6 lb (6.2 kg)
- Plate Construction: Glass Filled Nylon
- Plate Size: 12.5 in x 11 in (318 mm x 279 mm)
- Safety Certification: UL; cUL
- Working Environment: 41°F – 104°F, 20% to 80%RH non-condensing (5°C – 40°C, 20% to 80% RH, non-condensing)
- Speed Range: 60 rpm to 1400 rpm
- Capacity: 25 L
- Power: 120V, 1.3A, 50/60Hz
- Applications- Carboys, Chromatography, Mixing viscous materials, polymers, pilot scale and other large volume Stirring and Mixing
- Display- Independent LED displays for speed, and time (on digital models); Knob with 1-10 dial markings (on non-digital models)
- Operation- N/A
- Communication- N/A
- Construction- High Volume Stirrers feature a cast aluminum housing and glass filled nylon top plate. Large Capacity Stirrers feature both stainless steel housing and top plate. Models include either a 70 mm egg shaped stir bar or 102 mm stir bar with pivot ring.
- Design Features- Speed ramping feature slowly increases motor speed for enhanced coupling & improved stirring. Microprocessor-controlled for precise speed regulation. Timer counts up or when programmed to a set time, will turn off stirring & sound alarm when timer reaches 0.
