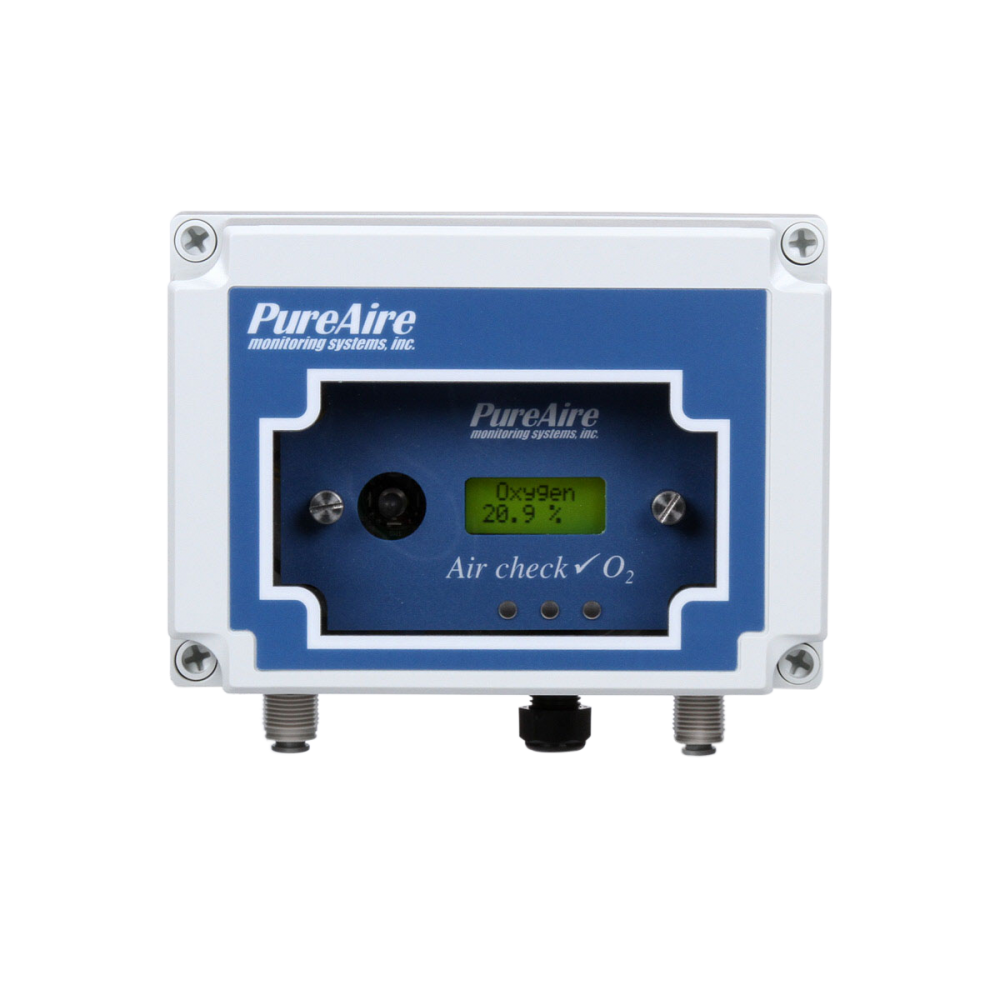

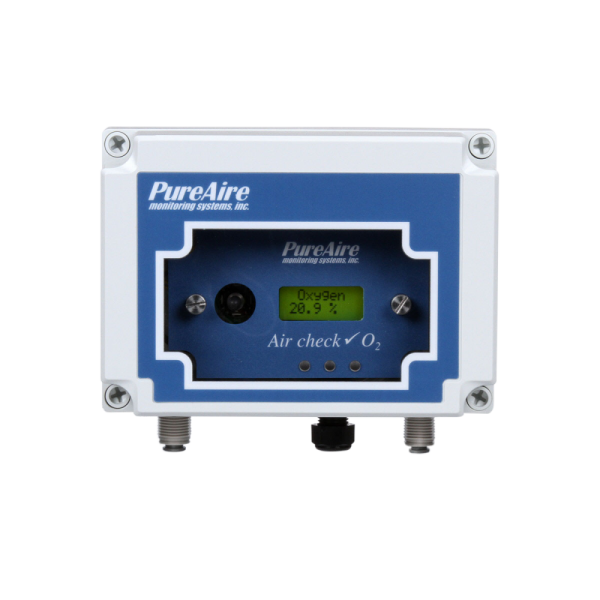

PureAire 99029 Sample Draw Oxygen Monitor (Includes power cord)
Item#: 99029/45101Air Check O2 sample draw monitor is a specialized version of the 99016 oxygen deficiency monitor, perfect for situations where the monitor cannot physically be in the concerning area. The monitor can reside up to 100ft away from the area to be tested and uses a polyurethane or equivalent 1/4 inch tube to draw the sample. For a sterile environment, this monitor is the solution. This has a 10+ year zirconium oxide sensor.
Prior to ordering, please contact your local sales rep and provide your freezer model & serial number to confirm the part you are purchasing will fit your tank.
$3,185.00
Request a Quote- Sampling Method: Sample Draw
- Gases Detected: Oxygen (O2)
- Range: 0 – 25 %
- Accuracy: ± 1 % of Full Scale
- Operating Temperature: -40 to +55 ºC
- Display: 3/4″ LCD Digital Display, Back Lit
- Sensor Type: Long life zirconium oxide sensor cell
- Sensor Life: > 10 years under Normal Conditions
- Signal Outputs: 4-20 mA Analog Output, Dual Level Alarm Relay Contacts
- Power Requirements: 24 VDC, 300 mA
- Width: 7.0 in (178 mm)
- Height 5.0 in (127 mm)
- Depth 5.0 in (127 mm)
- Weight 4.0 lb (2.0 kg)
- Enclosure: Nema 4X Wall Mount General Purpose
- Required Calibration: None, No Zero or Span Pot Adjustment Required
- 10 + Years No Calibration Sensor
- Two-Alarm Relays for 19.5% and 18.0%
- No Maintenance Required
- 3 Year Warranty
- Digital Display, 4-20mA Analog Output
- No drift due to thunderstorms or barometric pressure changes
- Power cord included
- Wall mounting brackets and optional plug-in wall power supply
- Built-in Flow Sample Pump
- UL, C UL and CE Approvals
