PureAire Remote Digital Display

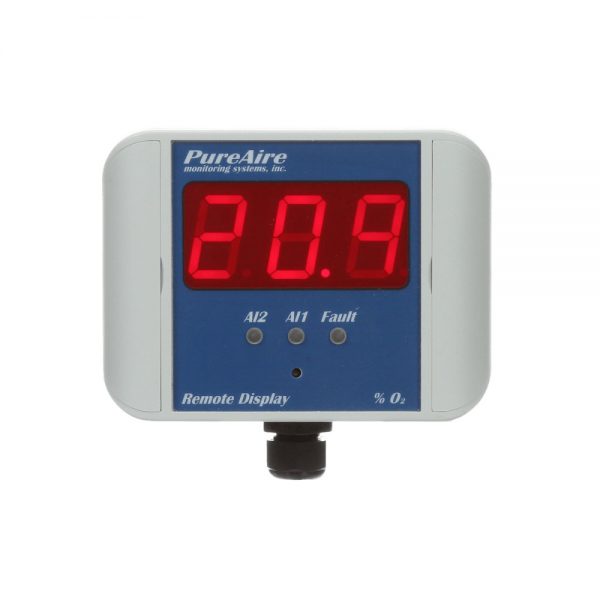

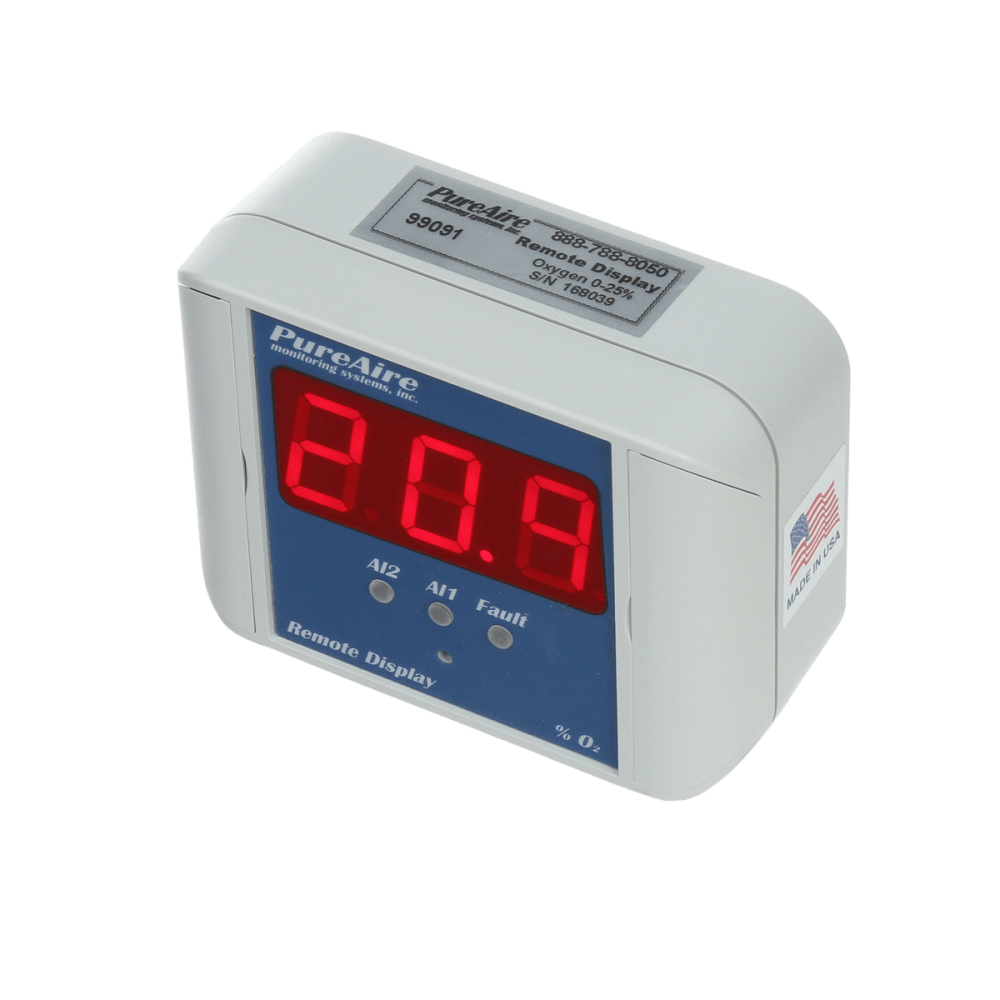

Item#: 99091The Remote Digital Alarm Indicator provides continuous information on the status of the PureAire Oxygen Deficiency Monitor by remotely mirroring the monitor’s display and alarm panel. A large, bright red LED display continuously illuminates the O2 reading from the oxygen monitor up to 250 feet away.
Prior to ordering, please contact your local sales rep and provide your freezer model & serial number to confirm the part you are purchasing will fit your tank.
- Operating Temperature: -40 to +122F (-40 to +50C)
- Display: 1” bright red digital
- Horn: User selectable on/off
- Audible: Horn Sound Output 80 – 85 db
- Enclosure: ASA+PC plastic
- LED Lights: (2) relay lights, (1) fault light
- Alarms: 2 User adjustable, alarm above or below set point
- Power Requirements: 24VDC supply connected from O2 monitors
- Dimensions: 4.6”(W) x 3.5”(H) x 2″(D) inches
- Weight: 5 pounds (1.1 kg)
- Enclosure: Polycarbonate wall mount general purpose; not intended for explosive atmospheres
- Bright 1” Red LED digital concentration display
- Built-in Alarm and Fault status LED’s
- User selectable dual level alarm set points
- Built-in Audio horn alerts personnel to low or high oxygen conditions
- Two tone horn distinguishes between alarm 1 and alarm 2
- Displays Oxygen monitor overall status
