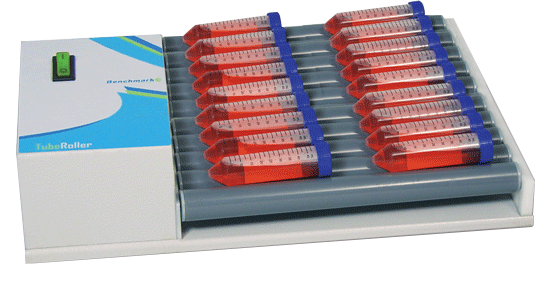

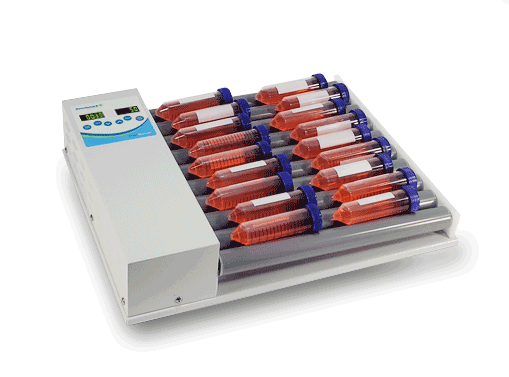

TubeRoller with 10 rollers, 115V TubeRoller™
Item#: R3010Benchmark TubeRollers are designed for the gentle, thorough mixing of a variety of containers, including Vacutainers™, bottles, test tubes, centrifuge tubes and roller bottles. Both models (5 roller and 10 roller) operate at a constant 38rpm, chosen as the optimum speed for the broadest range of mixing requirements. As the roller mechanism rotates through each complete revolution, the right side of each roller is gently elevated about 0.5 in (13mm) and returns to the horizontal starting position. This additional, gentle up/down motion provides a "wave" effect and guarantees that the entire sample is subjected to complete, thorough mixing, end to end. This built in tilt feature provides a level of homogeneous mixing uniformity that cannot be matched by any stationary roller apparatus. From blood collection tubes to roller bottles, Benchmark TubeRollers are the ideal choice for research, clinical laboratories and doctors' offices.
$1,631.94 $1,387.15
- Speed: Fixed, 38 rpm (+/-10%)
- Motion: Simultaneous roll & tilt (+/- 5º)
- +4º to 40ºC (external ambient temp.)
- No. of Rollers: 10
- Dimensions (in): 18 x 14 x 3.5
- Weight (lbs): 17.6
- Indv. Roller Dimensions (in): 1.2 x 12.5
- Vessels Accepted: 8mm to 200mm diameter
- Roller Spacing: 5mm (rollers are on 35mm centers)
- Electrical Requirements: 120V, 60Hz or 230V, 50-60Hz
- Warranty: 2 years
- Gentle rolling motion
- Smooth +/- 5º tilt action
- For tubes/bottles from 8mm to 200mm diameter
Typical Sample Load Capacity:
- 12 x 75mm tubes: 26
- 16 x 100mm tubes: 18
- 16 x 125mm tubes: 18
- 15ml screw cap tubes: 18
- 50ml screw cap tubes: 18
- 850cm² roller bottles: 2
