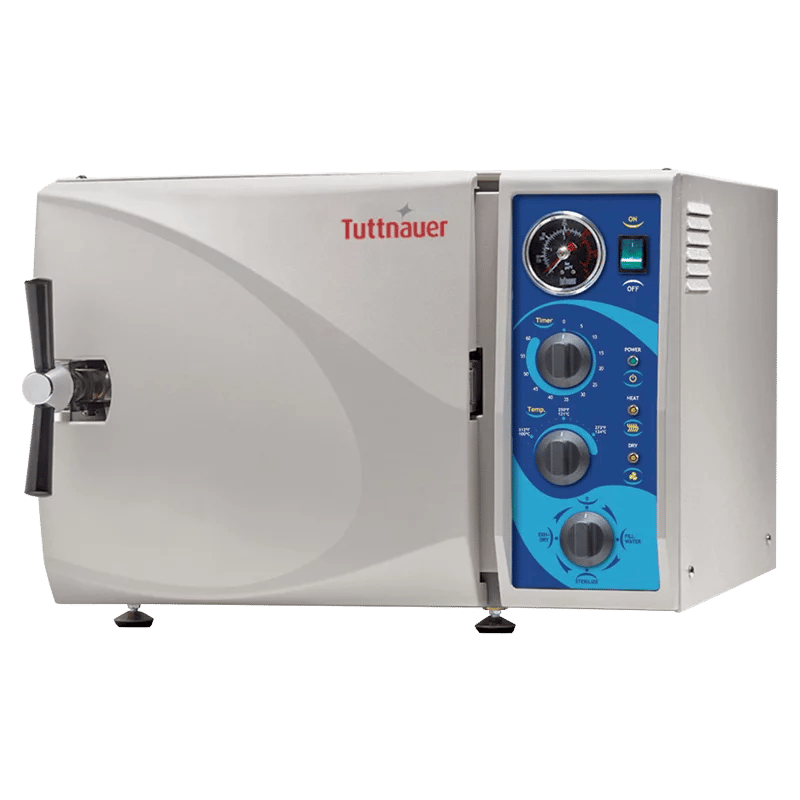

Tuttnauer Benchtop Manual Sterilizer Model 3850M (220V)
Item#: 023210479The Tuttnauer 3850M is a 6L benchtop laboratory autoclave for repeatable steam sterilization of media, glassware, instruments, and waste. Its front-loading stainless steel chamber combines laboratory capacity with an advanced multicolor control display. Configurable options support liquid, biohazard, waste, drying, and fast-cooling applications.
PID pressure control and flexible PT100 temperature sensors support precise cycle management and help protect liquid loads. Built-in memory stores up to 200 cycles, while user access controls support laboratory accountability. The controller and software are designed to support 21 CFR Part 11 requirements.
The 3850M comes standard with a 220V plug and a stand.
- Power Supply: 2,400W
- Current: 13.6 A
- Phase: 1
- Chamber Volume: 17 gallons/ 65 liters
- Chamber Dimensions (Dia. X D): 15” x 20” (38.1 cm x 50.8 cm)
- Tray Dimensions (W x D x H): 17” x 20” x 1” (35 cm x 50 cm x 2.5 cm)
- Overall Dimensions (W x D x H): 26” x 27” x 21” (66 cm x 68.6 cm x 53.3 cm)
- Reservoir Volume: 1.6 gallons (6L)
- Minimum Water: 0.53 gallons (2L)
- Net Weight: 196 lbs (86kg)
- 4980 Erlenmeyer Flask Size:
- 125ml = 63
- 500ml = 12
- 1L short neck= 7
- 2L short neck= 3
- 500 mL Media Bottle: 15
- Bottom Tray to Top of Chamber: 12"
- Middle Tray: n/a
- Top Middle Tray: n/a
- Top Tray: 7 3/8"
- Voltage: 220V
- Nema Plug: 020V (6-15R)
- Max. Allowable Working Pressure: 2.76 bar (40 psi)
- Water Pump Fuse: 1.25 amps
- Air Pump Fuse: 2.0 amps 120v/1.25 amps 220V
- Industry leading 3 year warranty
