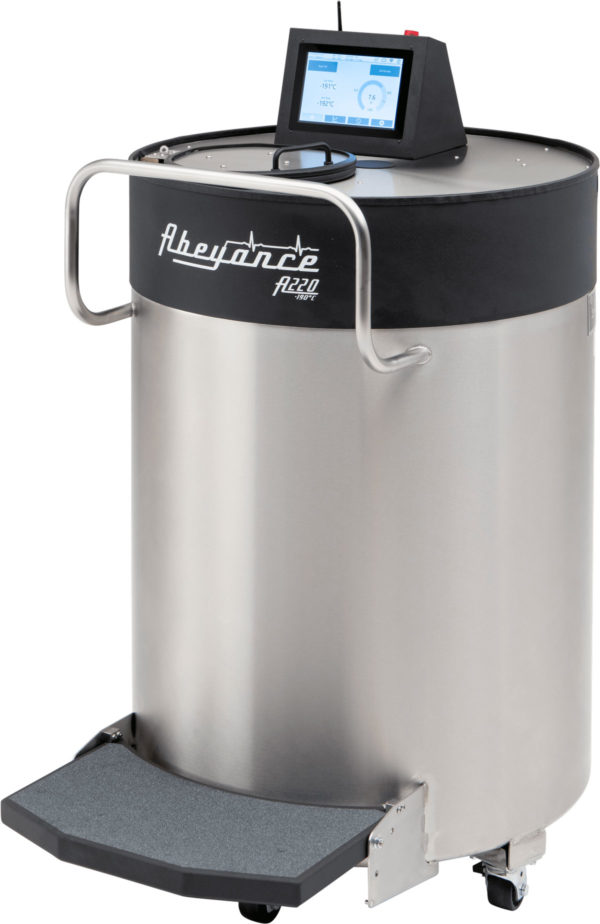

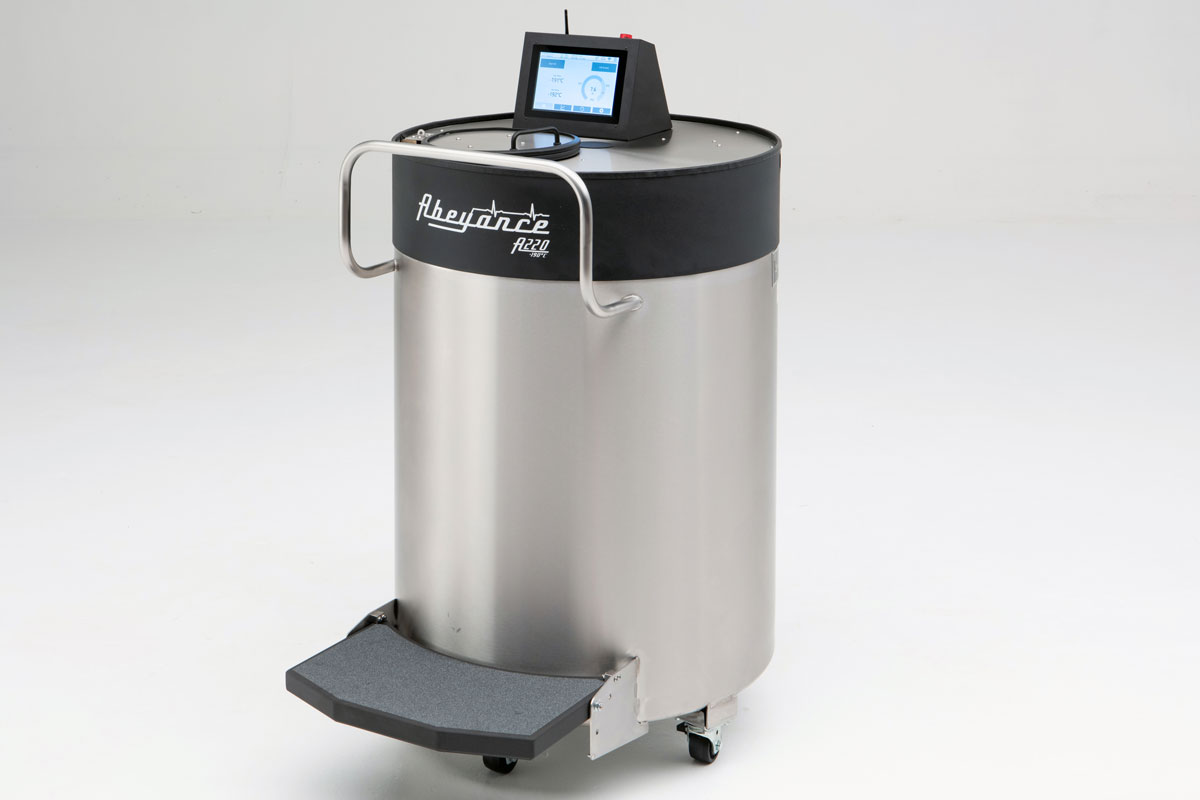

Azenta A220 Cryogenic LN2 Freezer (Capacity: 22,000 x 2.0 ml vials)
Item#: 34-00The Azenta A220 Liquid Nitrogen Freezer is an energy efficient cryogenic storage solution with a maximum capacity of up to 22,000 2ml vials and a 10 day holding time. This freezer includes ergonomic features such as a low liftover height, a folding step, interior LED lights and automatic fog clear for enhanced visibility and sample access. All Azenta Cryo freezers come standard with a touchscreen controller with built-in WiFi/LAN that helps you stay connected with text and email alerts, data storage, secondary temperature and level monitoring, and more.
- 2 ml Vial Capacity (Vials | Boxes | Racks)
- 5-2 Slim Racks: 22,000 | 220 | 44
- 13-2 Square Racks: 15,600 | 156 | 12
- Outer Diameter: 34” (864mm)
- Overall Height: 58” (1473mm)
- Usable Height: 30” (762mm)
- Step Height: 9.5” (241mm)
- Liftover Height: 39.5” (1003mm)
- LN2 Capacity: 65 L
- Hold Time (< Tg): > 10 Days
- Neck Opening: 12.6" (320mm)
- Empty Weight: 650lbs (295kg)
- Working Weight: 1,060lbs (481kg)
- Warranty: 3 Years Parts and Craftsmanship | 7 Year Vacuum Insulation
- Safety / Regulatory: Conforms to UL STD 61010-1 | CSA STD C22.2 # 61010-1 | LVD (2014/35/EU)
- Leading Performance:
- -190°C LN2 vapor storage
- Extended hold times
- Most energy efficient; lowest LN2 usage per sample
- Increase Capacity:
- 10-30% more samples
- Highest storage density; most samples per square foot
- Improve Ergonomics:
- Full sample visibility with automatic fog clear and cryogenic LED
- Low liftover heights, folding steps, safety handles and hinged lids
- Flat work surface to maintain the cold chain
- Fully enclosed wiring and cold surfaces
- Reusable, snap together crate
- Plug and play setup
- Stay Connected:
- Touchscreen with built-in WiFi / LAN with text and email alerts
- Data can be directly emailed, pushed to the cloud or saved to USB flash drive
- Supports secondary temperature and level monitoring
- Lid access for chain of custody
- Alarm beacon to easily identify freezer in alarm
- Log and schedule maintenance
Each Freezer Includes:
- Battery Backup and Gas Bypass Standard
- Industry Leading Warranty: 3-years parts and craftsmanship, 7-years vacuum insulation
Azenta A220 CAD Drawing
DownloadAzenta A220 Spec Drawing
DownloadAzenta A220 Rack Layout
DownloadAzenta Cryo Solutions Brochure
DownloadAzenta Cryo Freezer Operator Manual
DownloadAzenta Cryo Quick Start Guide
DownloadAzenta Freezer Uncrating Doc
DownloadAzenta A220 Temperature Test
DownloadAzenta A220 Specification Sheet
DownloadAzenta Cryo Freezers Facility Requirements
Download-
