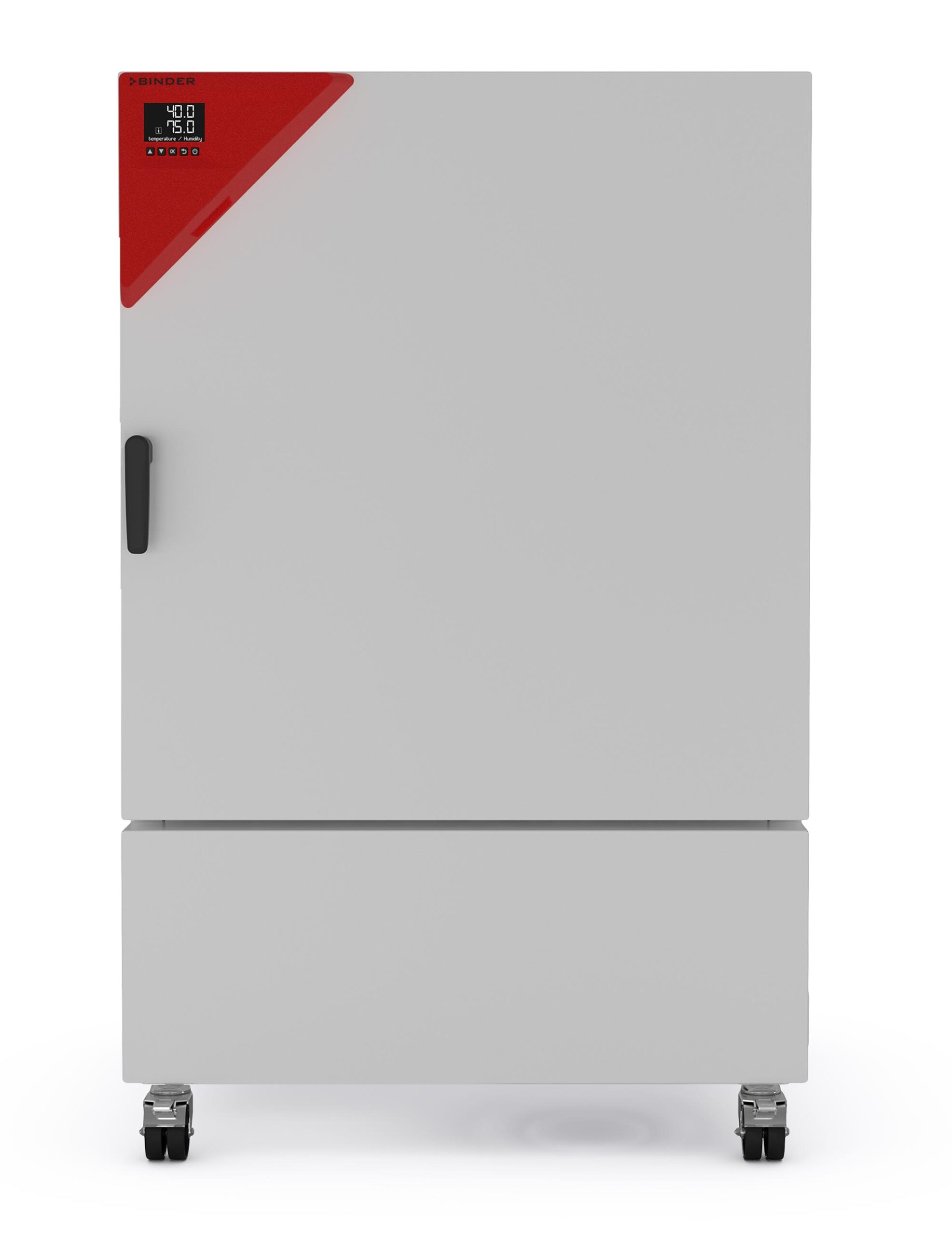

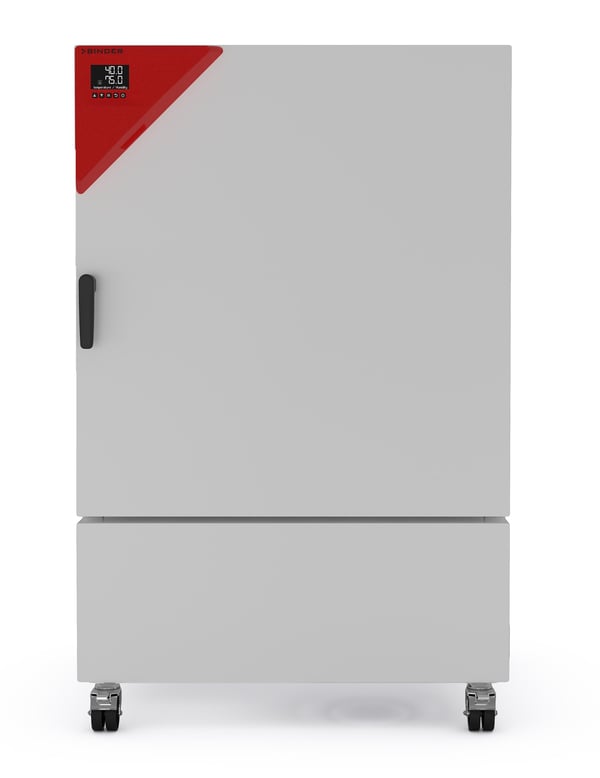

BINDER KB ECO 240UL Cooling Incubators with Environmentally Friendly Thermoelectric Cooling | 8.7 Cu. Ft. (247 L)

Item#: 9020-0426

BENEFITS

Safe thanks to uniform incubation, even under full load
Reliable thanks to failsafe operation without compromise
Intelligent thanks to unit self-test for comprehensive status analysis
Economical, as energy consumption is minimal thanks to optimized thermoelectric cooling

~~$11,564.00~~ $10,985.80

Request a Quote

Supplier: BINDER

Performance Data Temperature

Temperature range (max. 28°C under ambient temp): 0°C through +70°C
Temperature variation at 37°C [± K]: 0.5°C
Temperature fluctuation at 37°C [± K]: 0.1°C
heat compensation at 37°C [W]: 400

Electrical data

Rated Voltage [V]: 100/120
Power frequency [Hz]: 50/60
Nominal power [kW]: 0.9
Unit fuse [A]: 16
Phase (Nominal voltage): 1~

Measures

Interior volume [cu.ft.]: 8.7
Net weight of the unit (empty) [lbs]: 335
Permitted load [lbs]: 220
Load per rack [lbs]: 66
Wall clearance back [in]: 3.94
Wall clearance sidewise [in]: 3.94

Internal Dimensions

Width [in]: 25.61
Height [in]: 30.93
Depth [in]: 19.11

Doors

Inner doors: 1
Unit doors: 1

Housing dimensions (not including fittings & connections)

Width net [in]: 36.45
Height net [in]: 57.6
Depth net [in]: 31.36

Environment-specific data

Energy consumption at 37 °C [Wh/h]: 65
Sound-pressure level [dB(A)]: 43

Fixtures

Number of shelves (std./max.): 2/9

Temperature range: 0 °C through +70 °C (max. 26 °C below the ambient temperature)
APT.line™ preheating chamber technology
Electric temperature control thanks to thermoelectric cooling module with innovative heat dissipation

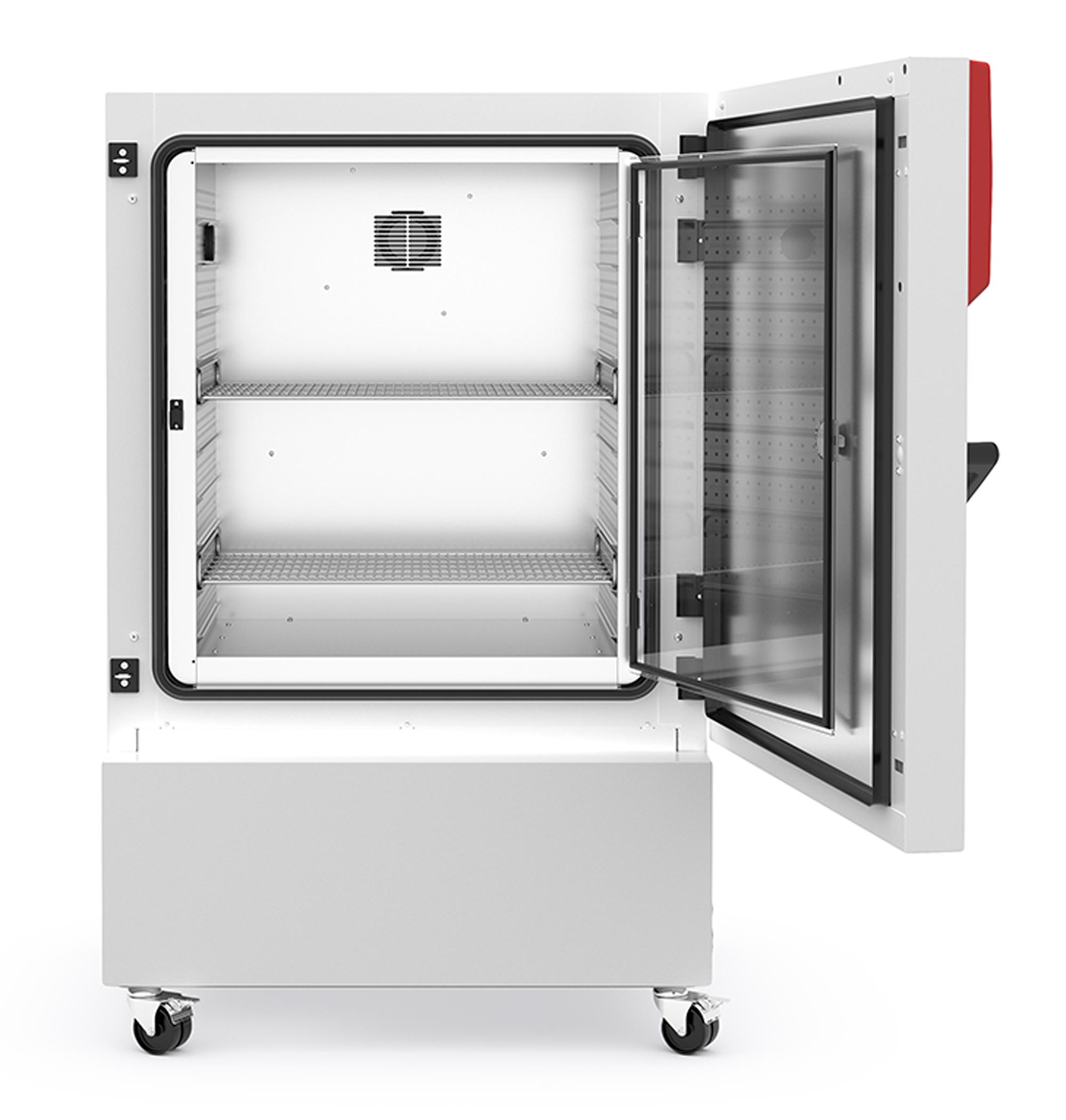

Inner door made of tempered safety glass
Inner chamber made completely of stainless steel
2 rack, stainless steel
Access port with silicone plug Ø 30 mm
LCD to display temperature along with additional information and alarms
Internal data logger, measured values can be read out in open format via USB
Unit self-test for comprehensive status analysis
Warranty: 2 years parts & labor
