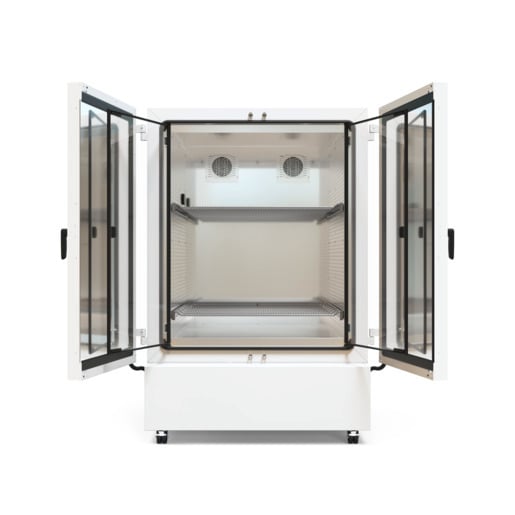

BINDER KB PRO 1060 Constant Climate Chambers with Extended Temperature/Humidity Range | 37.79 Cu. Ft. (1,070 L)
Item#: 9020-0443A powerful all-rounder among constant climate chambers: Equipped with all kinds of sophisticated technology, the KBF PRO takes any material test in its stride – whether it takes place at -20°C or under THB conditions at +85°C and 85% relative humidity. It offers flexible water supply options for all installation sites and consumes up to 40% less energy than its predecessor, the KMF model.
Performance Data Temperature
- Temperature range: -20 to 100 °C
- Max. heat compensation at 40°C: 1,000 W

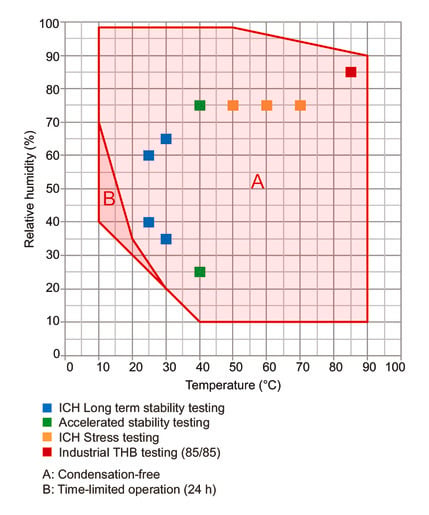

Performance Data Climate
- Temperature range with humidity: 10 to 90 °C
- Humidity range: 10 to 98 % RH
- Temperature uniformity at 25°C and 60% RH: 0.3 ± K
- Temperature uniformity at 40°C and 75% RH: 0.3 ± K
- Temperature fluctuation at 25°C and 60% RH: 0.1 ± K
- Temperature fluctuation at 40°C and 75% RH: 0.1 ± K
- Humidity fluctuation at 25°C and 60% RH: 1 ± % RH
- Humidity fluctuation at 40°C and 75% RH: 1 ± % RH
- Recovery time after door was opened for 30 s at 25°C and 60% RH: 1 min
- Recovery time after door was opened for 30 s at 40°C and 75% RH: 5 min
Electrical data
- Rated Voltage [V]: 208 to 240 V
- Power frequency [Hz]: 50/60
- Nominal power [kW]: 1.9 kW
- Unit fuse [A]: 16
- Phase (Nominal voltage): 1~
Dimensions and weights
- Interior volume [cu.ft.]: 37.79
- Net weight of the unit (empty) [lbs]: 793.66
- Load per rack [lbs]: 88.18
- Permitted load [lbs]: 220.46
- Wall clearance back [in]: 7.09
- Wall clearance sidewise [in]: 7.09

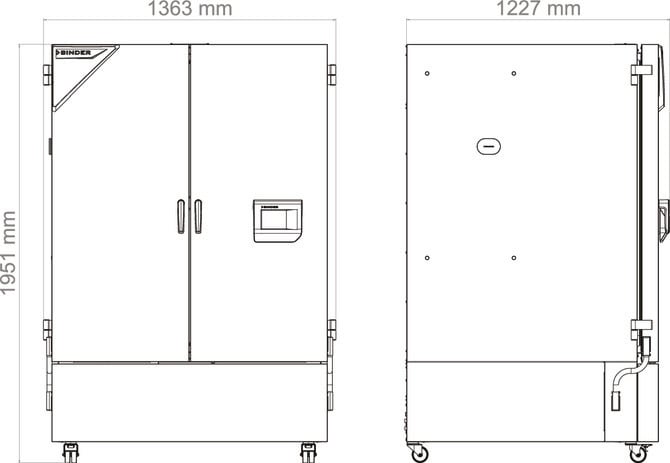

External Dimensions (not including fittings or connections)
- Width [in]: 50.59
- Height [in]: 76.81
- Depth [in]: 46.26
Internal Dimensions
- Width [in]: 39.80
- Height [in]: 49.21
- Depth [in]: 33.35
- Inner Doors: 2
- Unit Doors: 2
Environment-specific data
- Sound-pressure level at 25°C: 50 dB(A)
- Energy consumption at 25°C and 60% RH: 400 Wh/h
- Energy consumption at 40°C and 75% RH: 450 Wh/h
- Energy consumption at 85°C and 85% RH: 665 Wh/h
Fixtures
- Number of shelves (std./max.): 2/16
- Temperature range: -20°C to +100°C
- Humidity range: 10% to 98% RH
- Proven APT.line™ preheating chamber technology
- Up to 40% lower energy consumption compared to the previous model
- Energy-efficient cooling with modern inverter cooling unit
- Cooling with climate-neutral R-290 refrigerant
- Door heating to prevent condensation
- Adjustable fan speed
- Humidity regulation with capacitive humidity sensor and responsive steam humidification
- Robust housing design with HIT sandwich technology
- Stainless-steel inner chamber
- Inner doors made of metal oxide-coated safety glass
- Two racks made of stainless steel (for models from 260 with telescopic rails)
- Large access port with silicone plug
- Tabletop units (up to model 130) are stackable with stacking adapter
- Floor-standing units (from model 260) featuring robust twin casters, with brakes at the front
- Intuitive touchscreen controller with time-segment and real-time programming
- Ergonomically adjustable control terminal (from model 470)
- Signal triangle with light-up status display (from model 470)
- Internal data logger, measured values can be read out in open format via USB
- Class 3.3 independent temperature safety device (DIN 12880) with visual and acoustic alarms
- Unit self-test for comprehensive status analysis
- Data interfaces: Ethernet, USB
- BINDER Multi Management Software APT-COM™ basic edition
- Optional light modules for ICH photostability testing (for models 260, 470, 720)
- Optional LED light modules for plant growth (for models from 260)
