- Max. Storage Capacity:
- 1.2 & 2ml Vials: 36,400
- # of Racks for 100 Cell Boxes: 24
- # of Racks for 25 Cell Boxes: 16
- # of Stages per Rack: 13
- Performance:
- LN2 Capacity: 730 liters
- LN2 Capacity under Tray: 115 liters
- Static Hold Time (Vapor days): 17
- Static Hold Time (Liquid Full days): 100
- Unit Dimensions:
- Neck Opening: 17.4” / 442mm
- Usable Internal Height: 28.8” / 732mm
- Inner Diameter: 38.5” / 978mm
- Overall Height: 54.7” / 1,389mm
- Liftover Height: 37.3” / 947
- Door Width Requirement: 44” / 1,118
- Weight Empty: 700 lbs / 318kg
- Weight Liquid Full: 2000 lbs / 907kg
- Blood Bag Capacities:
- Bag 791 OS/U (25ml): 2,905
- Bag 4R9951 (50ml): 1,488
- Bag 4R9953 (250ml): 812
- Bag 4R9955 (500ml): 608
- Bag DF200 (200ml): 496
- Bag DF700 (700ml): 256
MVE HEco 1536P-190 LN2 Freezer w/ Full Auto Fill & Gas Bypass & Battery Backup
Item#: 21093083The MVE HEco 1536P-190 Freezer provides the most efficient cryogenic storage solution with a capacity of up to 36,400 2ml vials. This unit features an all stainless steel construction keeping a controlled temperature of -190C, touch screen controller, a low profile size for less lift-over height and full auto fill and gas bypass plus optional battery backup designed to bring you peace of mind.

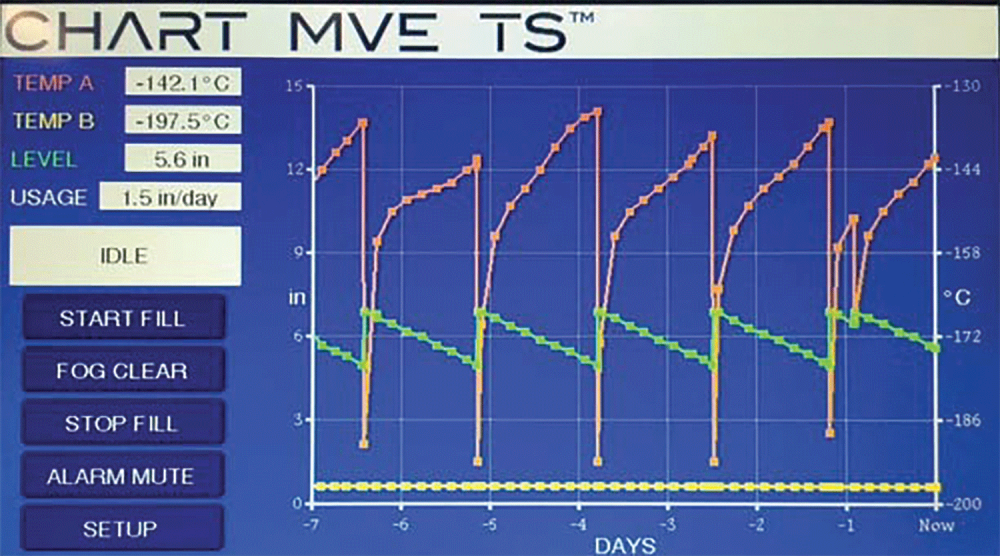

- Touch-Screen Controller
- LN2 efficiency

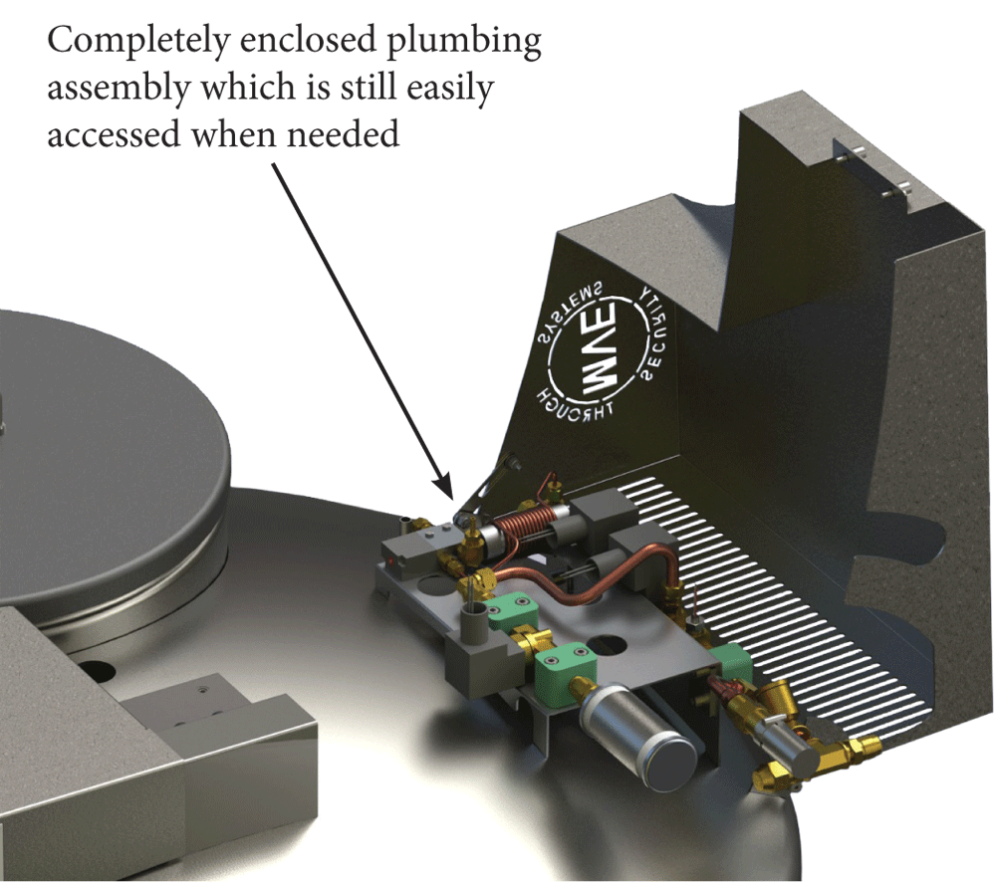

- Fully enclosed wiring and plumbing
- Vacuum jacketed transfer hose
- Dry sample storage
- -190°C top box temperature
- Lowest liftover height
- Single step standard
- Optional double-tier step
- Optional battery backup
- TWO Year Parts Warranty & FIVE Year Vacuum Warranty
