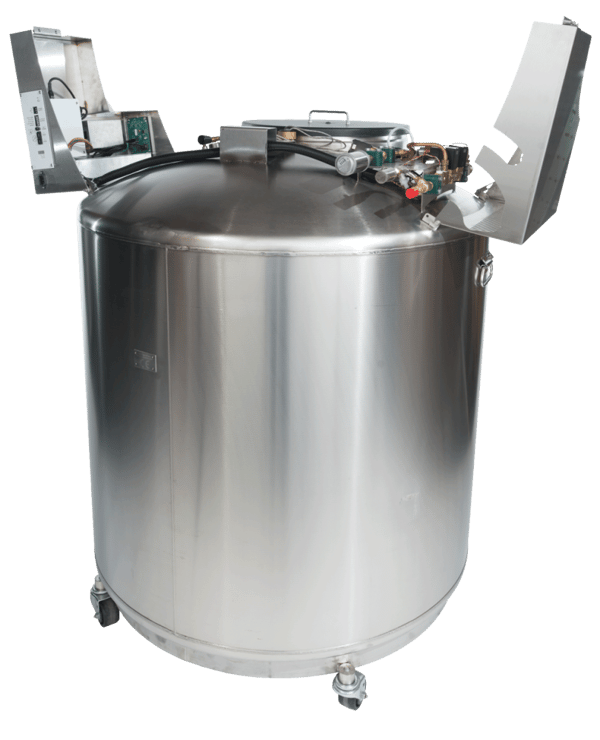

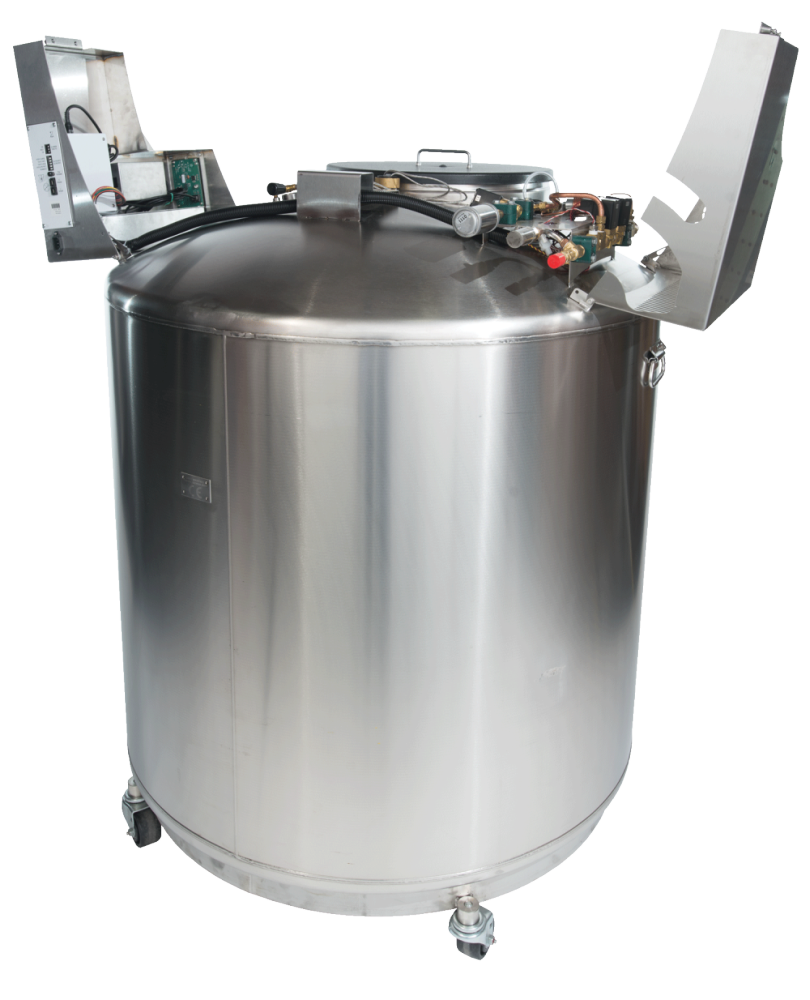

MVE HEco 815P-190 LN2 Freezer w/ Full Auto Fill & Gas Bypass & Battery Backup (Capacity: 15,600 x 2.0 ml vials)
Item#: 21093060The MVE HEco 815P-190 Liquid Nitrogen Freezer provide the most efficient cryogenic storage solution with a capacity of up to 15,600 2ml vials. This unit features an all stainless steel construction keeping a controlled temperature of -190C, touch screen controller, a low profile size for less lift-over height and full auto fill and gas bypass plus optional battery backup designed to bring you peace of mind.
- Max. Storage Capacity
- 1.2 & 2ml Vials: 15,600
- # of Racks for 100 Cell Boxes: 12
- # of Racks for 25 Cell Boxes: 4
- # of Stages per Rack: 12
- Performance:
- LN2 Capacity: 463 liters
- LN2 Capacity under Tray: 55 liters
- Static Hold Time (Vapor days): 11
- Static Hold Time (Liquid Full days): 92
- Unit Dimensions:
- Neck Opening: 12.5” / 317mm
- Usable Internal Height: 26.6” / 676mm
- Inner Diameter: 28.8” / 731mm
- Overall Height: 57.7” / 1,465mm
- Liftover Height: 47.6” / 1,209mm
- Door Width Requirement: 32.0” / 813mm
- Door Width Requirement, with handles: 33.2 / 843mm
- Weight Empty: 515 lbs / 234kg
- Weight Liquid Full: 1,340 lbs / 608kg
- Blood Bag Capacities:
- Bag 791 OS/U (25ml): 1,836
- Bag 4R9951 (50ml): 1,024
- Bag 4R9953 (250ml): 520
- Bag 4R9955 (500ml): 380
- Bag DF200 (200ml): 295
- Bag DF700 (700ml): 220
*HECO 800 Series includes single step and vaccum jacketed transfer hose.
**Optional Battery Backup is factory installed, therefore it must be ordered with the unit.
- Touch-Screen Controller
- LN2 efficiency

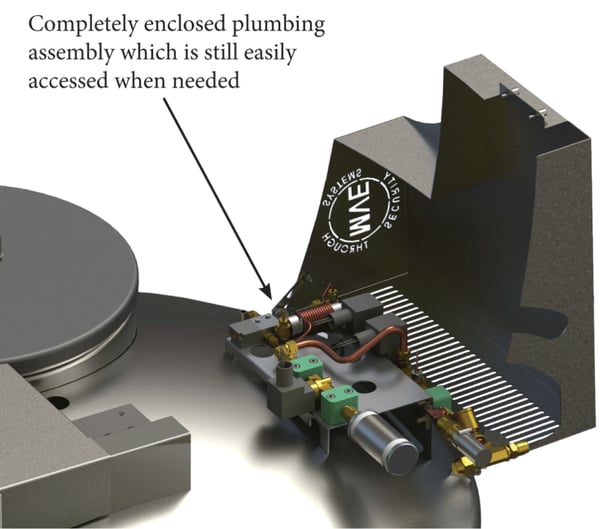

- Fully enclosed wiring and plumbing
- Vacuum jacketed transfer hose
- Dry sample storage
- -190°C top box temperature
- Lowest liftover height
- Single step standard
- Optional double-tier step

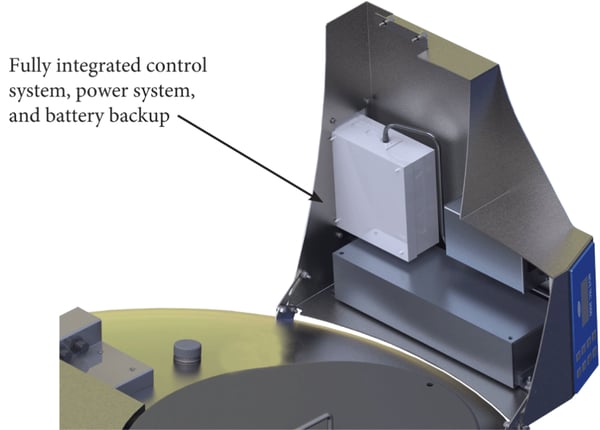

- Optional battery backup
- TWO Year Parts Warranty & FIVE Year Vacuum Warranty
-
