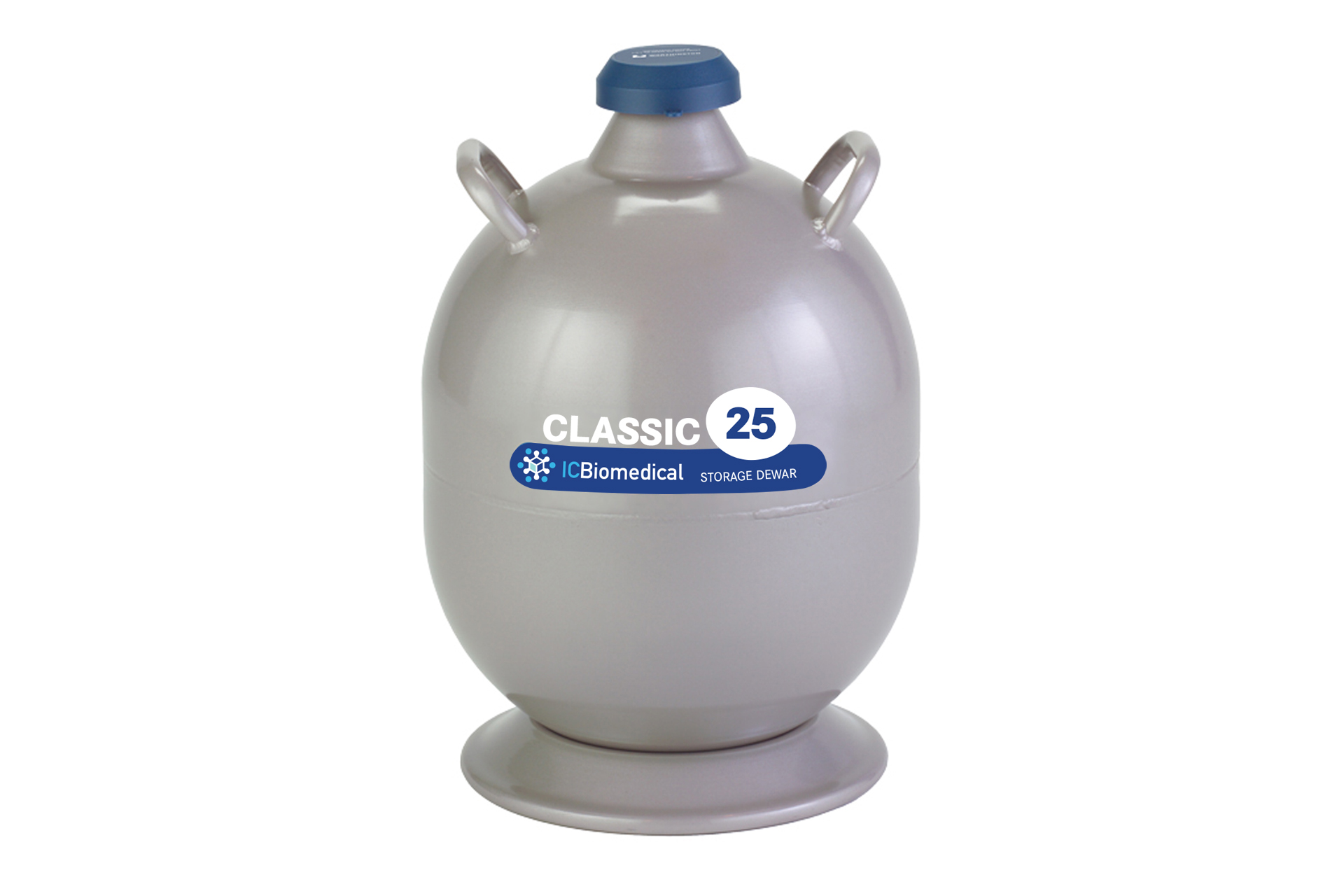

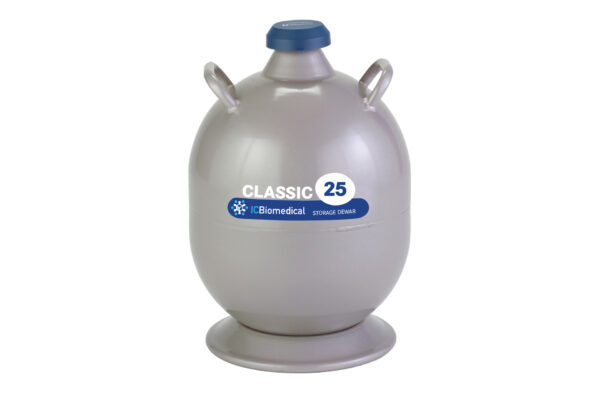

IC Biomedical Classic 25 Aluminum Cryogenic Dewar (Capacity: 25L)
Item#: CLASSICThe LD Series of cryogenic LN2 dewars are designed for storing and dispensing small amounts of liquid nitrogen.
$1,797.70 $1,528.04
- Static Holding Days(1): 119
- Evaporation Rate(1): 0.21
- Liquid Nitrogen Capacity: 25 liters
- Weight Empty: 19 lbs. / 8.6 kg
- Weight Full: 63.5" / 28.9 kg.
- Neck Diameter: 2.0" / 51mm
- Overall Height: 22.9" / 582mm
- Overall Diameter: 15.5" / 394mm
*Comes complete with a necktube core.
**Not suitable for the use of the liquid withdrawal device.
(1) Evaporation rate and static holding time are nominal. Actual rate may be affected by the nature of the contents, atmospheric conditions, container history, and manufacturing tolerances.
- High performance modern construction and advanced insulation materials assure high thermal efficiency
- New rugged construction, ribbed high strength aluminum body, magniformed necktube design, and more durable paint system
- Easy operation lightweight snap-on cap and necktube assures tight closure and easy access, convenient larger handles
- Superior vacuum performance with super insulation provides maximum holding times
-
Warranty: 5 year vacuum
-
Model 82 Phase Separator for IC Biomedical LN2 Systems (1 1/4″ x 1″ OD, 3/8″ FNPT)
Item #: 1193-8C82$66.00$56.10 -
Transfer Hose for IC Biomedical LN2 Systems- 6′ – CGA 295 x CGA 295
Item #: 1600-9C68$581.90$494.62 -
IC Biomedical Roller Base for Classic-25 Series Dewar
Item #: D024-8C02$434.50$369.33 -
IC Biomedical Necktube Cork for Classic-25 Series Dewar (Dewar Neck Opening Diameter: 2”)
Item #: D024-9C16$68.20$57.97 -
Transfer Hose for IC Biomedical LN2 Systems- 4′ – CGA 295 to 3/8″ NPT
Item #: 1700-9C65$445.50$378.68 -
LN2 Dipper for IC Biomedical Liquid Nitrogen Systems
Item #: R018-8C50$171.60$145.86 -
Transfer Hose for IC Biomedical LN2 Systems- 6′ – CGA 295 to 3/8″ NPT
Item #: 1600-9C66$496.10$421.69 -
Model 80 Phase Separator for IC Biomedical LN2 Systems (2 3/4″ x 1 3/8″ FNPT)
Item #: 1193-8C80$117.70$100.05 -
IC Biomedical Model 83 Phase Separator (1 1/4″ x 1/2″ OD, 1/8″FNPT)
Item #: 1193-8C83$70.40$59.84
