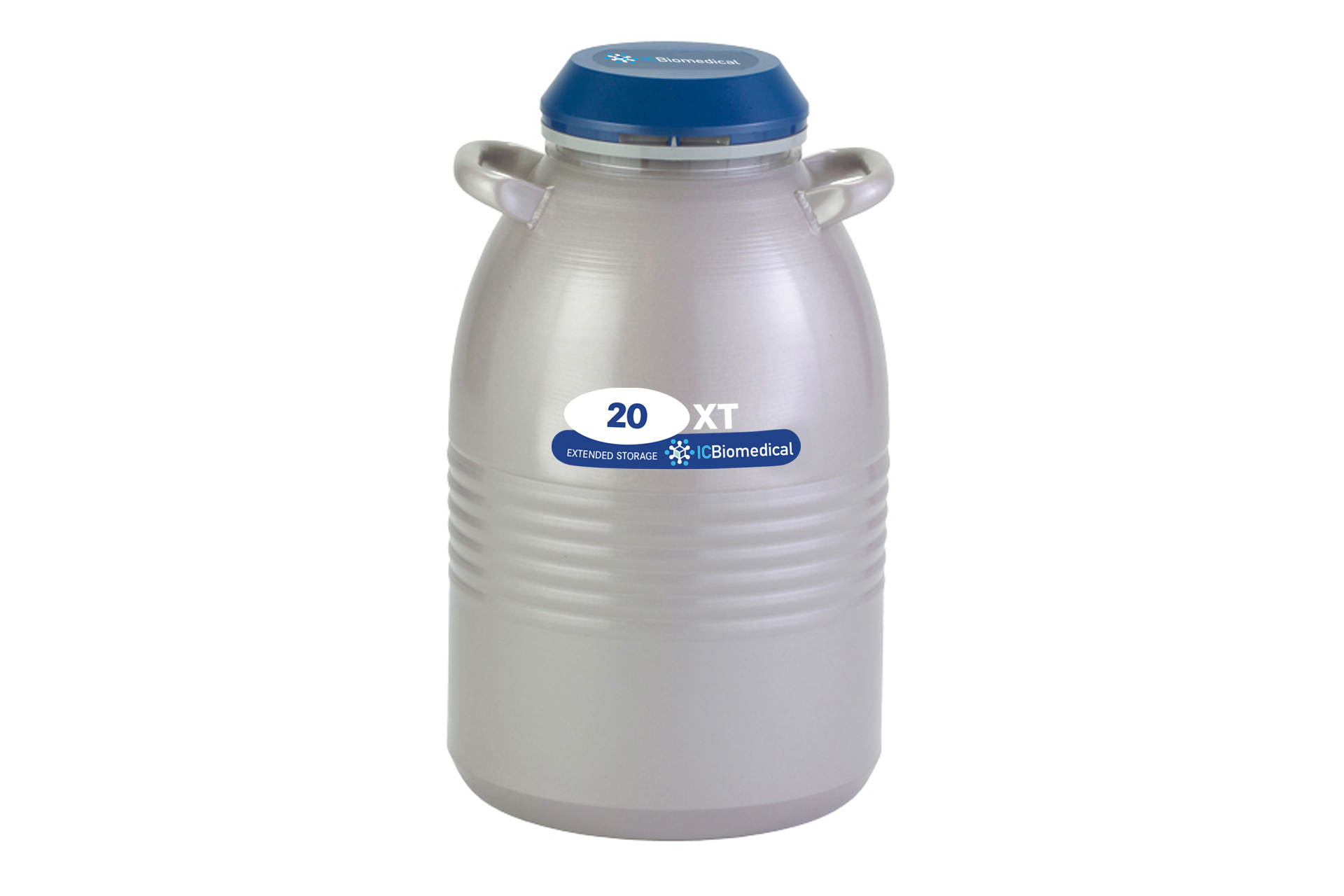

IC Biomedical XT20 Cryogenic Sample Storage with (6) 5″ Canisters (Capacity: 180 x 2.0 ml vials)
Item#: 20XTB-5SThe Extended Time Series (XT) cryogenic refrigerators are designed for long-term storage of a variety of materials at cryogenic temperatures. These LN2 dewars incorporate durability and lightweight construction maximizing holding times for optimum capacities.
$1,425.00 $1,211.25
- Capacity (Liters.): 20.7
- Empty Weight: 26 lbs. (11.8 kg)
- Full Weight: 62.8 lbs. (28.6 kg)
- Neck Diameter: 2.0" (51mm)
- Outer Diameter: 15.6" (396mm)
- Total Height: 25.8" (655mm)
- Static Evaporation Loss Rate (Liters/day): 0.09
- Static Holding Time (Days): 230
- Canister O.D.: 0.866" (22mm)
- Canister Height: 5" (127mm)
- No. of Canisters (No.): 6
- Straw Holding Capacity Single Level (0.5ml/0.25ml): 36/81
- Straw Holding Capacity Double Level (0.5ml/0.25ml): NA
- Warranty: 5 years vacuum
*Comes complete with necktube core and canisters.
**Straws, canes and vials are not included. See related products for available canes (1 case required) and vials (1 case required).
(1) Evaporation rate and static holding time are nominal. Actual rate may be affected by the nature of the contents, atmospheric conditions, container history, and manufacturing tolerances.
(2) Working time is an arbitrary, reference-only value to estimate container performance under the actual operating conditions.
(3) Without canisters.
- New rugged construction - ribbed high strength aluminum body, magniformed necktube design, and more durable paint
- Versatile storage system - convenient canister index location ring and tapered internal spider
- Superior vacuum performance with super insulation provides maximum holding times
- Security - accessory low-level alarm is available with remote monitor capability
- Lockable lids
- Mobility - roller base is available
- Warranty: 5 years vacuum
-
