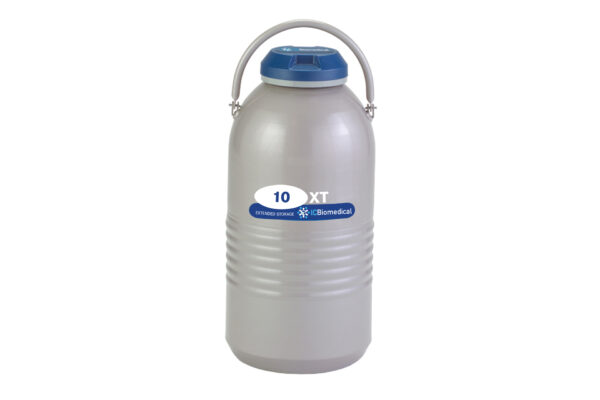

IC Biomedical XT10 Cryogenic Sample Storage with (6) 5″ Canisters (Capacity: 180 x 2.0 ml vials)
Item#: 10XTB-5SThe Extended Time Series (XT) cryogenic refrigerators are designed for long-term storage of a variety of materials at cryogenic temperatures. These LN2 dewars incorporate durability and lightweight construction maximizing holding times for optimum capacities.
$1,126.00 $957.10
- Capacity (Liters.): 10
- Empty Weight: 16.5 lbs. (7.5 kg)
- Full Weight(3): 34.3 lbs. (15.6 kg)
- Neck Diameter: 2.0" (51mm)
- Outer Diameter: 11.4" (290mm)
- Total Height: 23.8" (597mm)
- Static Evaporation Loss Rate (Liters/day): 0.1
- Static Holding Time (Days)(1): 100
- No. of Canisters: 6 included
- Canister Dimensions: 1.5" Dia. x 5"H (38 x 127mm)
- No. of 1.2ml & 2.0ml Vials (5/cane): 150
- No. of 1/2 cc Straws (10/cane): 540
- No. of 1/2 cc Straws - Bulk (1 level): 750
*Comes complete with Necktube Core.
**Straws, canes and vials are not included. See related products for available canes (1 case required) and vials (1 case required).
(1) Evaporation rate and static holding time are nominal. Actual rate may be affected by the nature of the contents, atmospheric conditions, container history, and manufacturing tolerances.
(2) Working Time is an arbitrary, reference-only value to estimate container performance under the actual operating conditions.
(3) Without canisters.
- New rugged construction - ribbed high strength aluminum body, magniformed necktube design, and more durable paint
- Versatile storage system - convenient canister index location ring and tapered internal spider
- Superior vacuum performance with super insulation provides maximum holding times
- Warranty: 5 years vacuum
-

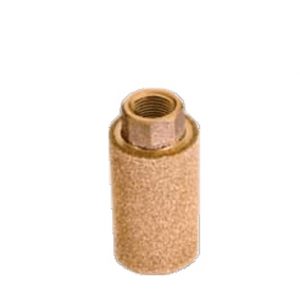

Model 80 Phase Separator for IC Biomedical LN2 Systems (2 3/4″ x 1 3/8″ FNPT)
Item #: 1193-8C80$107.00$90.95 -

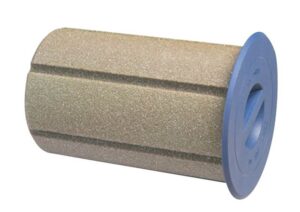

IC Biomedical Replaceable Necktube Cork for XT10 Series Liquid Nitrogen Freezer (Dewar Neck Opening Diameter: 2”)
Item #: R013-9C16$53.00$45.05 -

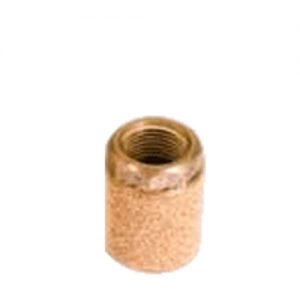

Model 82 Phase Separator for IC Biomedical LN2 Systems (1 1/4″ x 1″ OD, 3/8″ FNPT)
Item #: 1193-8C82$60.00$51.00 -
Transfer Hose for IC Biomedical LN2 Systems- 6′ – CGA 295 to 3/8″ NPT
Item #: 1600-9C66$451.00$383.35 -
Transfer Hose for IC Biomedical LN2 Systems- 4′ – CGA 295 to 3/8″ NPT
Item #: 1700-9C65$405.00$344.25 -
IC Biomedical 5″ Canister for XT10 Series Liquid Nitrogen Freezer
Item #: R013-9C24$47.00$39.95
