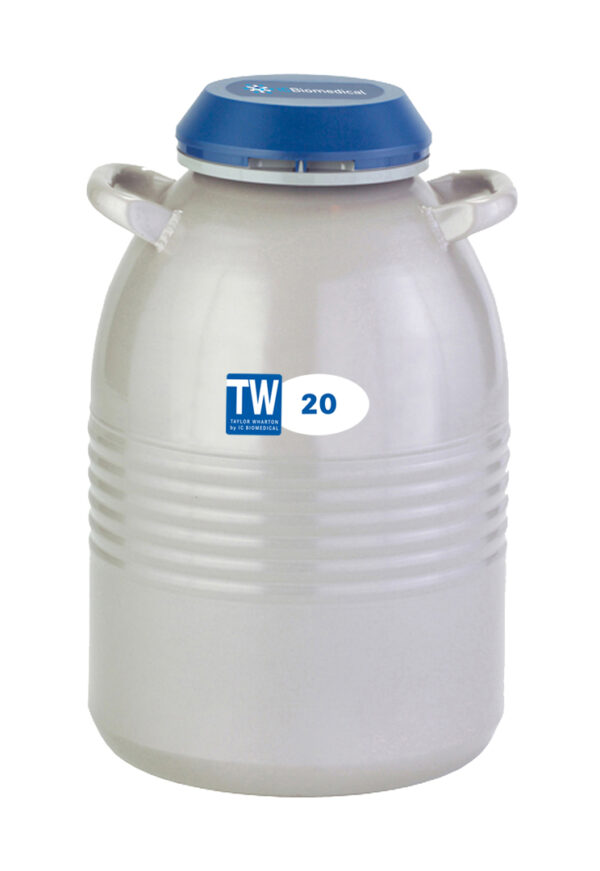

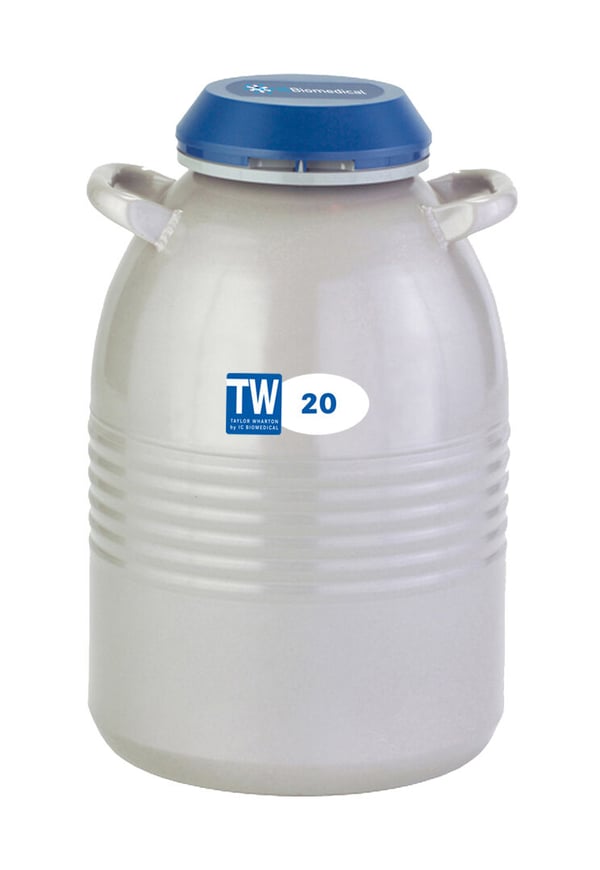

IC Biomedical TW 20-5S Series Small LN2 Freezer With 5″ Canisters (Capacity: 660 x 1/2cc Straws)
Item#: TW20-5SThe IC Biomedical TW Series small LN2 freezers are used in laboratory, biorepository and other research applications for everyday liquid nitrogen requirements. The TW 20 LN2 dewars model holds up to 21 liters of liquid nitrogen with a static hold time of 135 days. This unit is 26 inches high with a neck opening of 2.2 inches and can fit up to (6) 5 inch canisters. For easy mobility, a roller base option is also available to add to the TW 20.
$1,354.00 $1,150.90
- Capacity (Liters.): 21
- Empty Weight: 26 lbs. (11.8 kg)
- Full Weight: 63 lbs. (28.6 kg)
- Neck Diameter: 2.2" (55.9mm)
- Outer Diameter: 14.5" (368.3mm)
- Total Height: 26" (660.4mm)
- Static Evaporation Loss Rate (Liters/day): 0.095
- Static Holding Time (Days): 135
- Canister O.D.: 1.65" (41.9mm)
- Canister Height: 5" (127mm)
- No. of Canisters (No.): 6
- Straw Holding Capacity Single Level (0.5ml) 660
- Straw Holding Capacity Double Level (0.5ml): n/a
- Warranty: 5 years vacuum
- Universal canister compatibility
- Available in dual configuration
- Fits in standard shipping boxes and containers
- Rugged ribbed high-strength aluminum body, magneformed necktube design and more durable paint
- Superior vacuum performance with insulation technology that delivers maximum holding times
- Lockable lid with enlarged opening for seals or securing ties
-
