Corepoint Scientific Plasma Freezer w/ Chart Recorder (-35°C) | 23 Cu. Ft. | Solid Door

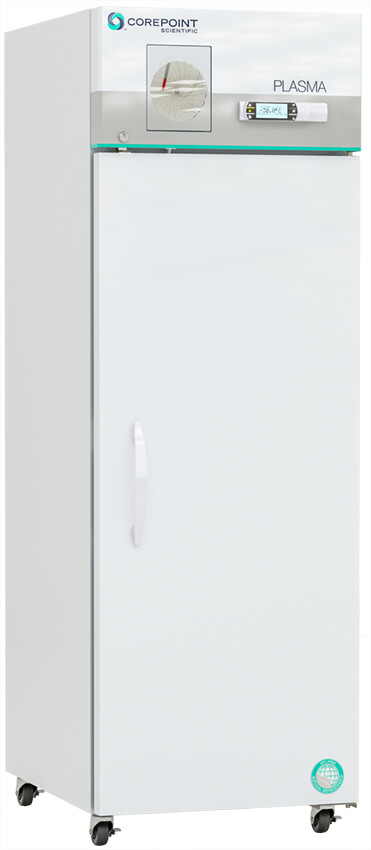

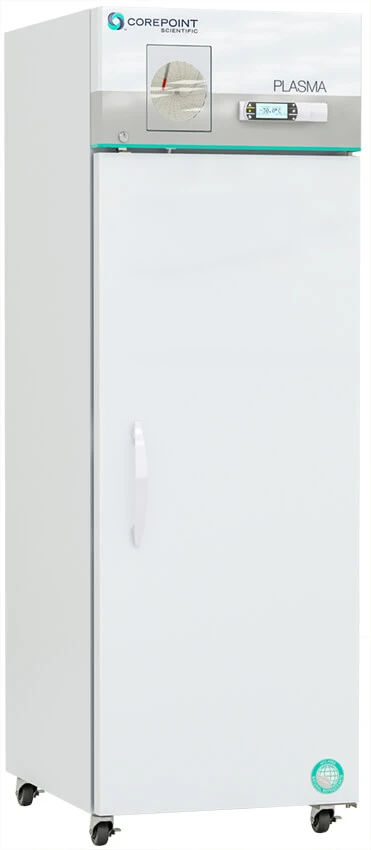

Item#: NSBF231WSWCR-0The NSBF231WSWCR-0 model Corepoint Scientific Blood Bank Plasma Freezer offers a 23 cubic capacity and is designed for safe storage of plasma at a temperature of -35°C. This blood bank freezer features a chart recorder, (1) solid door, (7) stainless steel drawers and LED interior lighting. These freezers also come standard with 4 swivel casters, with front locking casters, external probe access and keyed door lock. The control system technology features a Proportional Integral Derivative (PID) microprocessor with LCD display with audible & visual alarms/indicators.
$13,663.00 $11,614.00
- Temperature Setpoint Range: -15°C to -35°C
- Operational Environment: Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
- Storage Capacity: 23 cu. ft. gross volume, up to 480 plasma boxes with optional 8th drawer
- Dimensions:
- Exterior (WxDxH): 26 7/8” x 36 3/8” x 81 ½”
- Interior (WxDxH): 22” x 26 ½” x 59”
- Door: One swing solid door, self-closing, stay position at 100° open, right hinged, non-reversible, magnetic sealed gasket, keyed lock

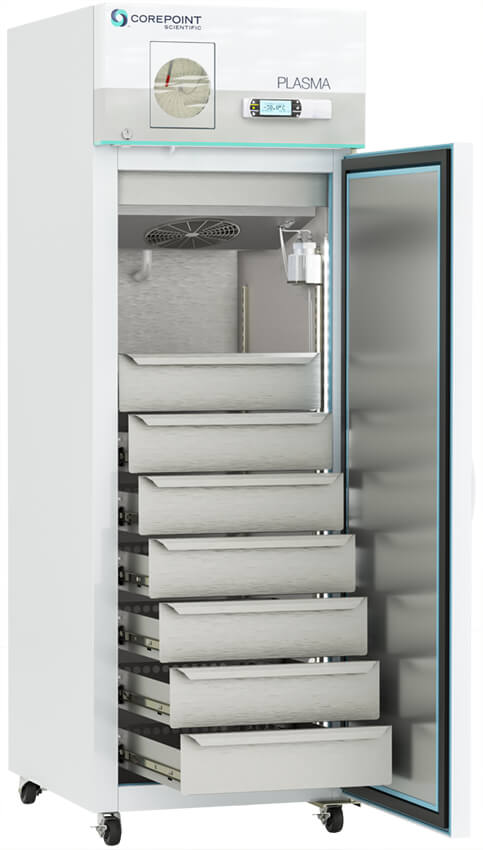

- Drawers: 7 drawers standard with option for 8th, 304 SS drawers, 65 lb. capacity each
- Mounting & Installation: 4 swivel casters, front casters locking
- Interior Lighting: Shielded, switched LED lighting, full coverage, balanced spectrum
- External Probe Access: Rear wall port (3/4") dia.
- Insulation: Cabinet is foamed-in-place with EPA compliant high density urethane foam
- Exterior Materials: White powder coated steel
- Access Control: Key lock
- General Warranty: Two (2) years parts and labor warranty, excluding calibrations
- Compressor Warranty: Seven (7) years compressor warranty
- Product Weight: 360 lbs. (7 drawers)
- Shipping Weight: 419 lbs. (7 drawers)
- Rated Amperage: 7 Amps
- Power Plug/Power Cord: Hospital grade, NEMA 5-15, 9 ft nominal (2.7 m)
- Facility Electrical Requirement: 110-120V AC: 15 A (minimum)
- Agency Listing & Certification: FDA listed Class II medical device, 21CFR part 820 compliant, ETL, CETL Listed (certified to UL471 standard, hydrocarbon refrigerant safety)
- Optional Accessories: Additional 8th drawer per door, Chart paper, Mounting anchor, Upper solid ballast, Lower glycerol bottle kit (factory install only), IQ/OQ/PQ
For performance data please refer to data sheet.
Refrigeration System:
- Compressor: Hermetic, variable speed (VSC). Rated speed range: 2000-4500 rpm
- Refrigerant: EPA SNAP compliant, R290
- Condenser: Fin and tube design, high efficiency fan
- Evaporator: Fin and tube design, high efficiency fan
- Defrost: Cycle optimized, automatic
Controller, Configuration, Alarms & Monitoring:
- Controller Technology: Proportional Integral Derivative (PID) microprocessor with LCD display
- Battery Backup: 24V high capacity battery, controller, all alarms active, temperature monitoring DAQ and event logging active on battery backup
- Digital Communication: RS-485 (MODBUS)
- Chart Recorder: 6" paper, inkless
- Temperature Setpoint Range: -15°C to -35°C
- Display Probe: Calibrated, stainless steel
- External Alarm Connection: State switching remote alarm contacts
- Alarms: Visual and audible indicators, Power failure, Temperature sensor failure, Battery voltage monitor and replacement, High / Low temperature, Door ajar
- Simulator Ballast: Upper probe: 4 oz. (120 ml) bottle, 50% glycerol mixture. Lower probe: Solid thermal media
Corepoint Scientific Blood Bank Refrigerators and Plasma Freezers
Request a Proposal
Related Products
-
Item #: NSBF231WSW-0
$12,268.00$10,428.00 -

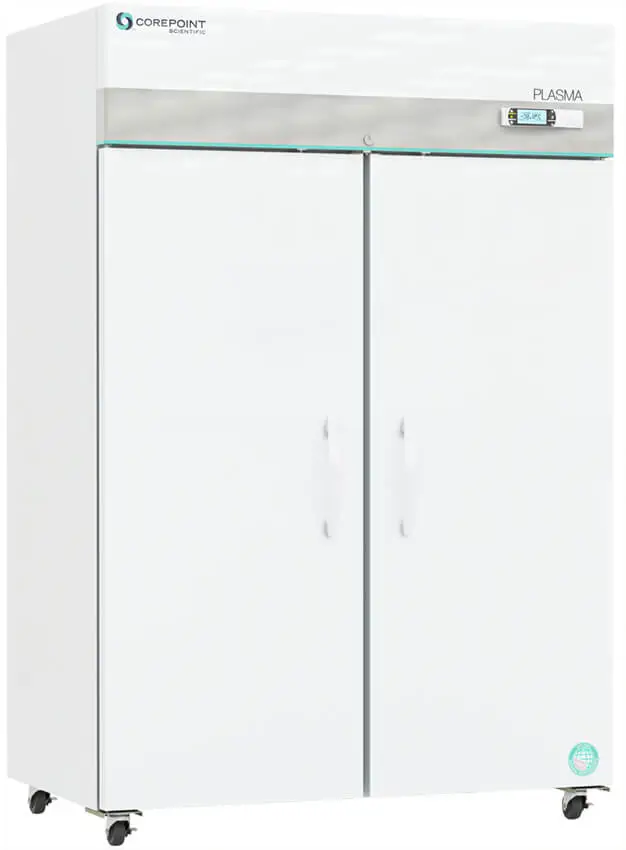

Item #: NSBF492WSW-0
