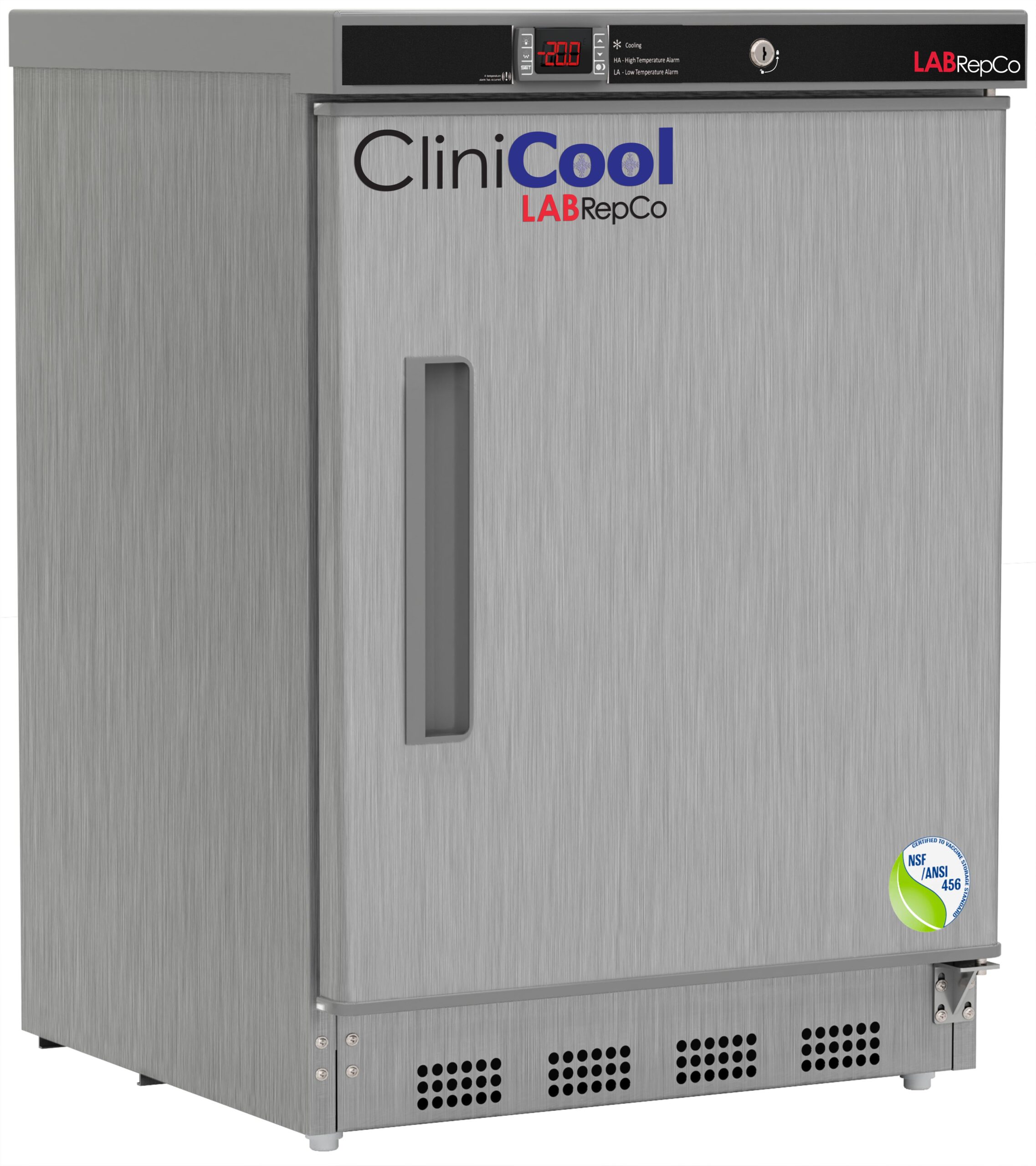

LabRepCo CliniCool© Series 4.2 Cu. Ft. Undercounter NSF Certified Pharmacy/Vaccine Freezer | Built-In | Stainless Steel

• Temperature setpoint range: -15°C to -28°C (Controller settings must remain unaltered to ensure thermal performance compliant with NSF/ANSI 456 Standard for Vaccine Storage requirements)
• Operational environment: Indoor use only. Optimal operating range: +18°C to +26°C (+65°F to +78°F), 70% RH
• Exterior Dimensions (WxDxH): 23 3/4" x 24 1/2" x 33 3/8"
• Interior Dimensions (WxDxH): 19" x 17 1/4" x 21"
• Storage capacity: 4.2 cu. ft. gross volume
• Door: One swing solid door, self-closing, right hinged, non-reversible, magnetic sealed gasket, keyed lock

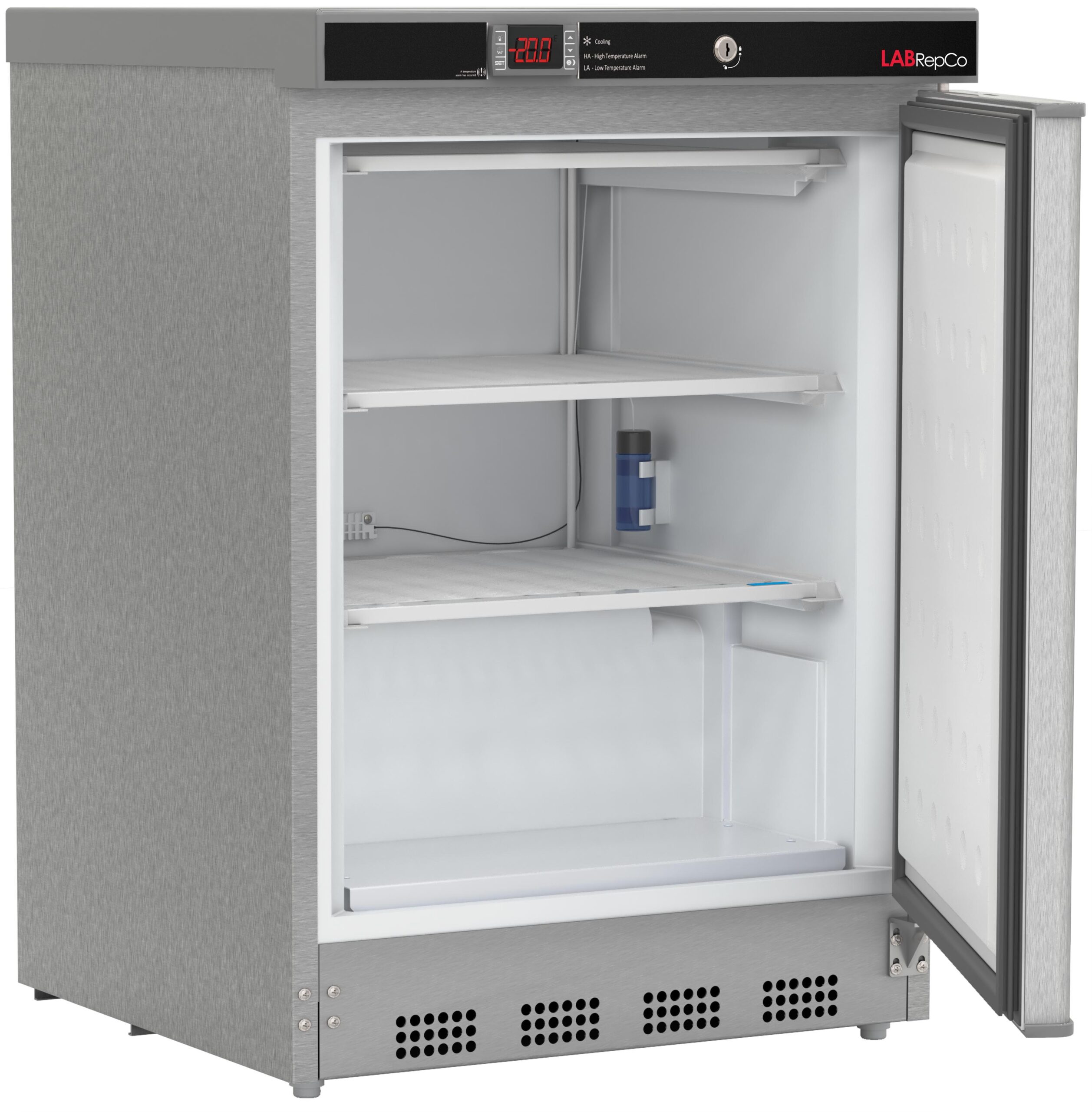

• Shelves: Two shelves, fixed
• Mounting: Low profile roller wheels and leveling legs
• Interior lighting: N/A
• External probe access: Rear wall port (3/4") dia.
• Insulation: Cabinet is foamed-in-place with EPA compliant high density urethane foam
• Exterior materials: Stainless Steel
• Access control: Pyxis®, Omnicell® and AcuDose RX® compatible
• General warranty: Two (2) years parts and labor warranty, excluding display probe calibration
• Compressor warranty: Five (5) years compressor warranty
• Product Weight: 100 lbs.
• Shipping Weight: 132 lbs.
• Rated Amperage: 1.5 Amps
• Power Plug/Power Cord: NEMA 5-15 plug, 8 to 10 ft typical, conforms to UL471 requirements, Vaccine storage power cord warning label
• Facility Electrical Requirement: 110-120V AC: 15 A (minimum)
• Agency Listing and Certification: Certified in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. UL, C-UL, ETL, C-ETL listed (either single or dual agency listings) and certified to UL471 standard, hydrocarbon refrigerant safety.
• Included Accessories:
  • Pharmacy refrigerator/freezer toolkit and temperature logs

Performance

• Uniformity (Cabinet air): +/- 2.6°C
• Stability (Cabinet air): +/- 2.1°C
• Maximum temperature variation (Cabinet air): +/- 2.9°C
• Temperature rise after an after 8 sec door openings: Temperature did not exceed -17.5°C at any probe for all required NSF/ANSI 456 testing protocols
• Recovery after 3 min door opening: All probes recover to under -15°C within 8.2 min.
• Energy consumption: 0.97 KWh/day
• Average heat rejection: 1.97 KWh/day (224 BTU/h)
• Noise pressure level (dBA): 49 or less installed
• Pull down time to nominal operating temp: 51 min

Note: The CDC requires a data logger or temperature monitoring device to consistently record live temperature readings from the inside of a refrigerator or freezer when storing all types of vaccines. Constant monitoring of vaccines at recommended temperatures is essential for maintaining the efficacy of a vaccine. Failing to do so can lead to wasted vaccines or ineffective vaccines being administered to patients. Please follow the CDC requirements for Vaccine Storage & the COVID-19 Vaccination Program found here.
