- Capacity (Liters.): 175
- Empty Weight: 156 lbs. (70.7 kg)
- Full Weight: 478 lbs. (216.8 kg)
- Neck Diameter: 8.5" (216mm)
- Outer Diameter: 26" (665mm)
- Total Height: 37.9" (963mm)
- Static Evaporation Loss Rate (Liters/day): 4.0
- Static Holding Time (Days): n/s
- Canister O.D.: n/a
- Canister Height: n/a
- No. of Canisters (No.): 6
- Straw Holding Capacity Single Level (0.5ml): n/a
- Straw Holding Capacity Double Level (0.5ml): n/a
- Warranty: 3 years vacuum

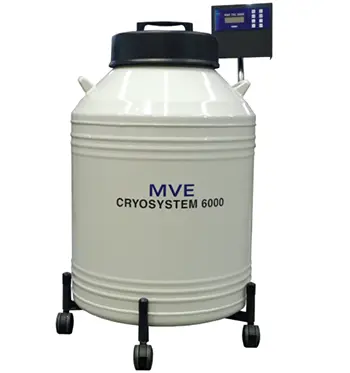

MVE CryoSystem 6000 Cryogenic Sample Storage with Full Auto (Capacity: 6,000 x 2.0ml vials)
Item#: 14796775The MVE CryoSystem 6000 Full Auto combines the compact efficiency of aluminum LN2 dewars with the monitoring and auto fill features of the TEC 3000 control system. The differential pressure-based level control allows this unit to easily be used for liquid storage with a -190°C top box temperature. The TEC3000 continually monitors and records temperature and LN2 levels, auto filling when needed, and providing audio/visual alarms with remote connectivity when necessary.
*This unit comes standard with a transfer hose, roller base and 6 storage racks (boxes are NOT included).
Please note: This product ships on a pallet
$12,019.00 $10,216.15
- Fully automatic LN2 level control and temperature monitoring
- Can be used for liquid or vapor storage
- Tracks and displays LN2 consumption
- 17 user-defined audio / visual alarms including High Temperature, Low Level, Liquid Usage, Fill Timeout, and more
- Remote monitoring and communication capabilities
- Electronically stores up to 10 years of unalterable, time-stamped data events for traceability and troubleshooting
- Transportable in emergencies or in the event of natural disasters
- Warranty: 2 year parts ; 3 year vacuum
Optional Features:
- Battery backup (part # 12885791)
*Does Not Include Boxes and Vials*
