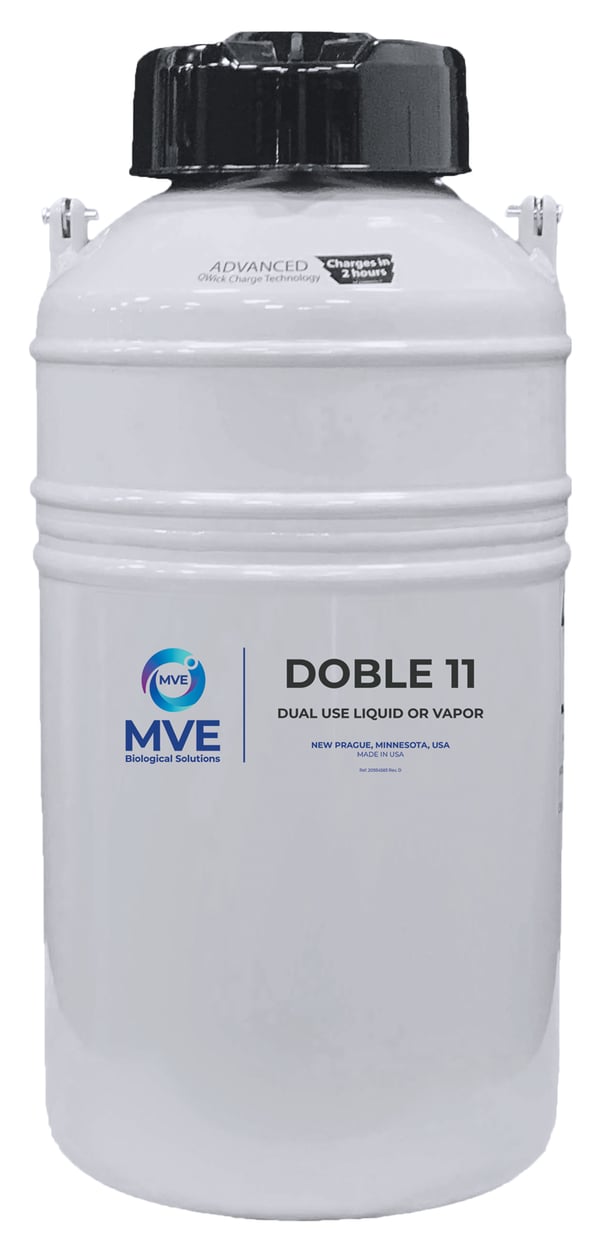

MVE Doble 11 Aluminum Cryogenic Dewar/Cryoshipper with QWick Technology (Capacity: 210 x 2.0 ml vials)
Item#: 11507886The Doble Series cryogenic LN2 dewars are the first units to be designed for both vapor shipment and liquid storage. The Doble QWick Series utilizes an absorbent wicking material that charges with liquid nitrogen in fewer than two hours, providing the capacity for same-day vapor shipping. A unique absorbent layer in the base of the storage tanks of both series enables them to be charged with nitrogen and employed as dry shippers with hold times of up to 30 days. Once at the final destination, the tanks can be filled with liquid and used for long term storage, therefore avoiding the need for return shipments.
This model is compliant to IATA Dangerous Goods Panel (DGP) Special Provision A152 for transportation of non-infectious biological samples.
$1,519.00 $1,291.15
Supplier: MVE
Tags: Cold Storage Products, Cryo Sample Transport, Dry Shippers, Liquid Nitrogen Tanks, LN2 Shipping, LN2 Transport- Capacity (Liters.): 10
- Empty Weight: 14.5 lbs. (6.6 kg)
- Full Weight: 32 lbs. (14.5 kg)
- Neck Diameter: 2.18" (55.4mm)
- Outer Diameter: 10.2" (260mm)
- Total Height: 21.6" (549mm)
- Static Evaporation Loss Rate (Liters/day): 0.17
- Static Holding Time (Days): 37
- Canister O.D.: 1.65" (41.9mm)
- Canister Height: 11" (279mm)
- No. of Canisters (No.): 6
- Straw Holding Capacity Single Level (0.5ml) 660
- Straw Holding Capacity Double Level (0.5ml): n/a
- Warranty: 5 years vacuum
*Canisters included. Vials, canes and straws not included.
*Protective Shipping Container NOT INCLUDED, please purchase part: 20750519
- Liquid and vapor storage options
- Low liquid nitrogen consumption
- Convenient lightweight package
- Durable composite lid design
- High strength neck tube reduces liquid nitrogen loss
- Strong, lightweight aluminum construction
- Advanced chemical vacuum retention system
- Hydrophobic liquid nitrogen absorbent system
- CHARGES IN LESS THAN TWO HOURS
