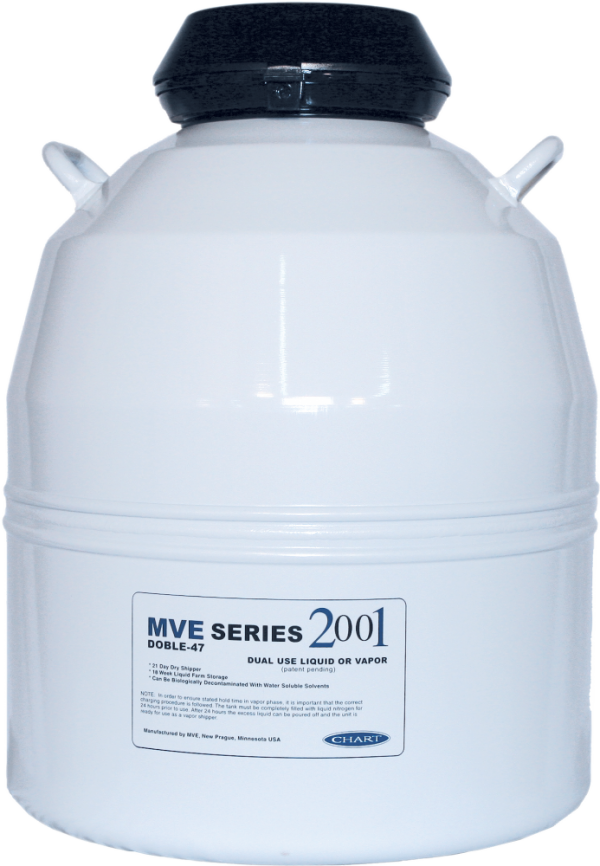

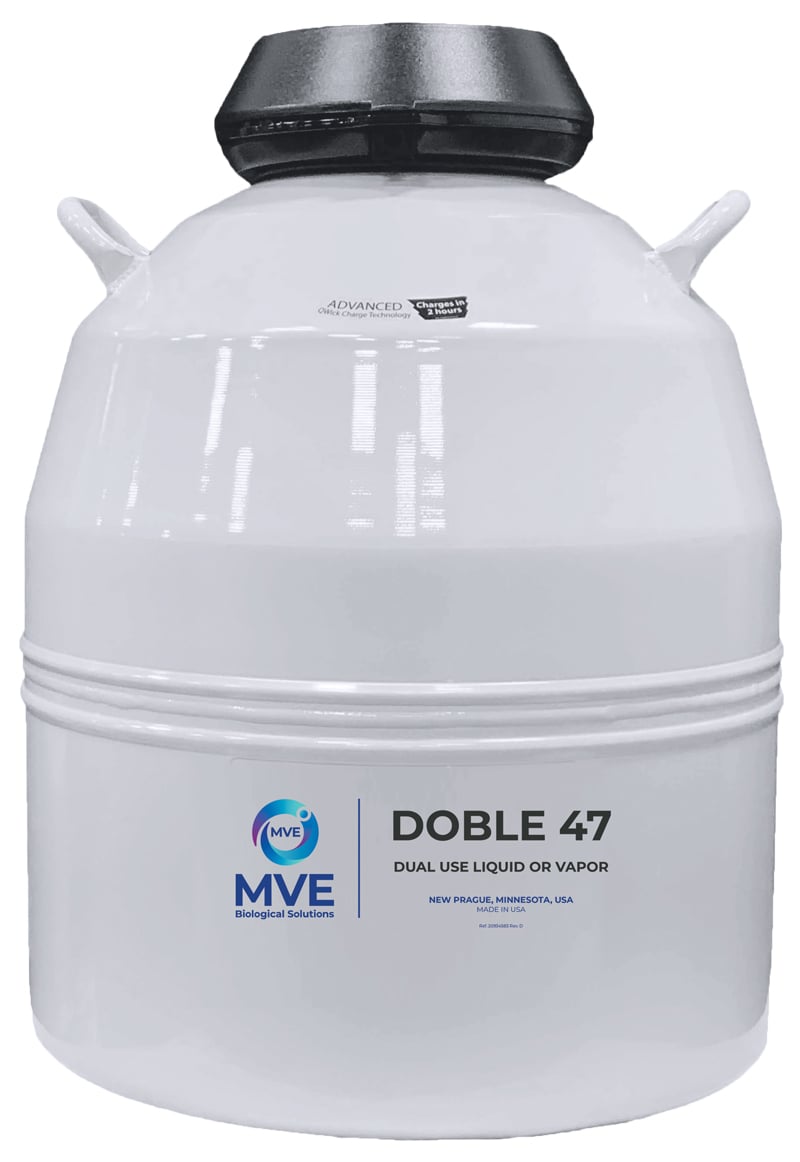

MVE Doble 47 Aluminum Cryogenic Dewar/Cryoshipper with QWick Technology (Capacity: 1320 x 2.0 ml vials)
Item#: 11498684The Doble Series cryogenic LN2 dewars are the first units to be designed for both vapor shipment and liquid storage. The Doble QWick Series utilizes an absorbent wicking material that charges with liquid nitrogen in fewer than two hours, providing the capacity for same-day vapor shipping. A unique absorbent layer in the base of the storage tanks of both series enables them to be charged with nitrogen and employed as dry shippers with hold times of up to 30 days. Once at the final destination, the tanks can be filled with liquid and used for long term storage, therefore avoiding the need for return shipments.
This model is compliant to IATA Dangerous Goods Panel (DGP) Special Provision A152 for transportation of non-infectious biological samples.
$2,788.00 $2,369.80
- Capacity (Liters.): 46
- Empty Weight: 41 lbs. (18.6 kg)
- Full Weight: 117 lbs. (53.1 kg)
- Neck Diameter: 5" (127mm)
- Outer Diameter: 20" (508mm)
- Total Height: 26.5" (673.1mm)
- Static Evaporation Loss Rate (Liters/day): 0.39
- Static Holding Time (Days): 74
- Canister O.D.: 4.0" (102mm)
- Canister Height: 11" (279mm)
- No. of Canisters (No.): 6
- Straw Holding Capacity Single Level (0.5ml): 4500
- Straw Holding Capacity Double Level (0.5ml): n/a
- Warranty: 3 years vacuum
*Canisters included. Vials, canes and straws not included.
*Protective Shipping Container NOT INCLUDED, please purchase part: 14035731
- Liquid and vapor storage options
- Low liquid nitrogen consumption
- Convenient lightweight package
- Durable composite lid design
- High strength neck tube reduces liquid nitrogen loss
- Strong, lightweight aluminum construction
- Advanced chemical vacuum retention system
- Hydrophobic liquid nitrogen absorbent system
- CHARGES IN LESS THAN TWO HOURS
- Warranty: 3 year vacuum
-
Medium Aluminum Dewar Phase Separator for MVE LN2 Systems (1 5/16″ x 3″)
Item #: 10615877$120.00$102.00 -
Small Aluminum Dewar Phase Separator for MVE LN2 Systems (11/16″ x 1 1/2″)
Item #: 10615885$67.00$56.95 -
Replaceable Neck Cork for MVE Cryosystem 750, XC 47/11-6, Doble 47 and Doble Qwick 14/4500 Liquid Nitrogen System (Dewar Neck Opening Diameter: 5″)
Item #: 14759051$130.00$110.50 -
Transfer Hose with Medium Sized Phase Separator for MVE LN2 Systems (use with discharge device)
Item #: 14044151$187.00$158.95 -
PDF Data Logger For MVE Liquid Nitrogen Storage Systems
Item #: 21544872S -
Protective Shipping Container for MVE XC 47/11-6, XC 47/11-10, Doble 47 & Doble 47-10 Series Liquid Nitrogen Systems
Item #: 14035731$924.00$785.40 -
Transfer Hose for MVE LN2 Systems (4′ x 1/2″ Dia.)
Item #: 9713159$226.00$192.10 -
Transfer Hose with Small Sized Phase Separator for MVE LN2 Systems (use with discharge device)
Item #: 14044143$145.00$123.25 -
Transfer Hose for MVE LN2 Systems (6′ x 1/2″ Dia.)
Item #: 9713109$301.00$255.85 -
Cool Reach for Retrieving Ampules and Canes
Item #: 13051579$280.00$238.00 -
Phase Separator with Rigid Discharge Device Nozzle for MVE LN2 Systems
Item #: 11734421$205.00$174.25 -

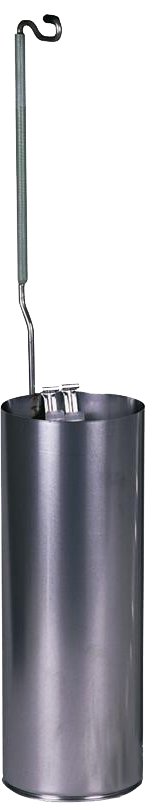

11″ Canister for MVE XC 47/11-6, Doble QWick 14/4500 & Doble 47 Series Liquid Nitrogen Systems
