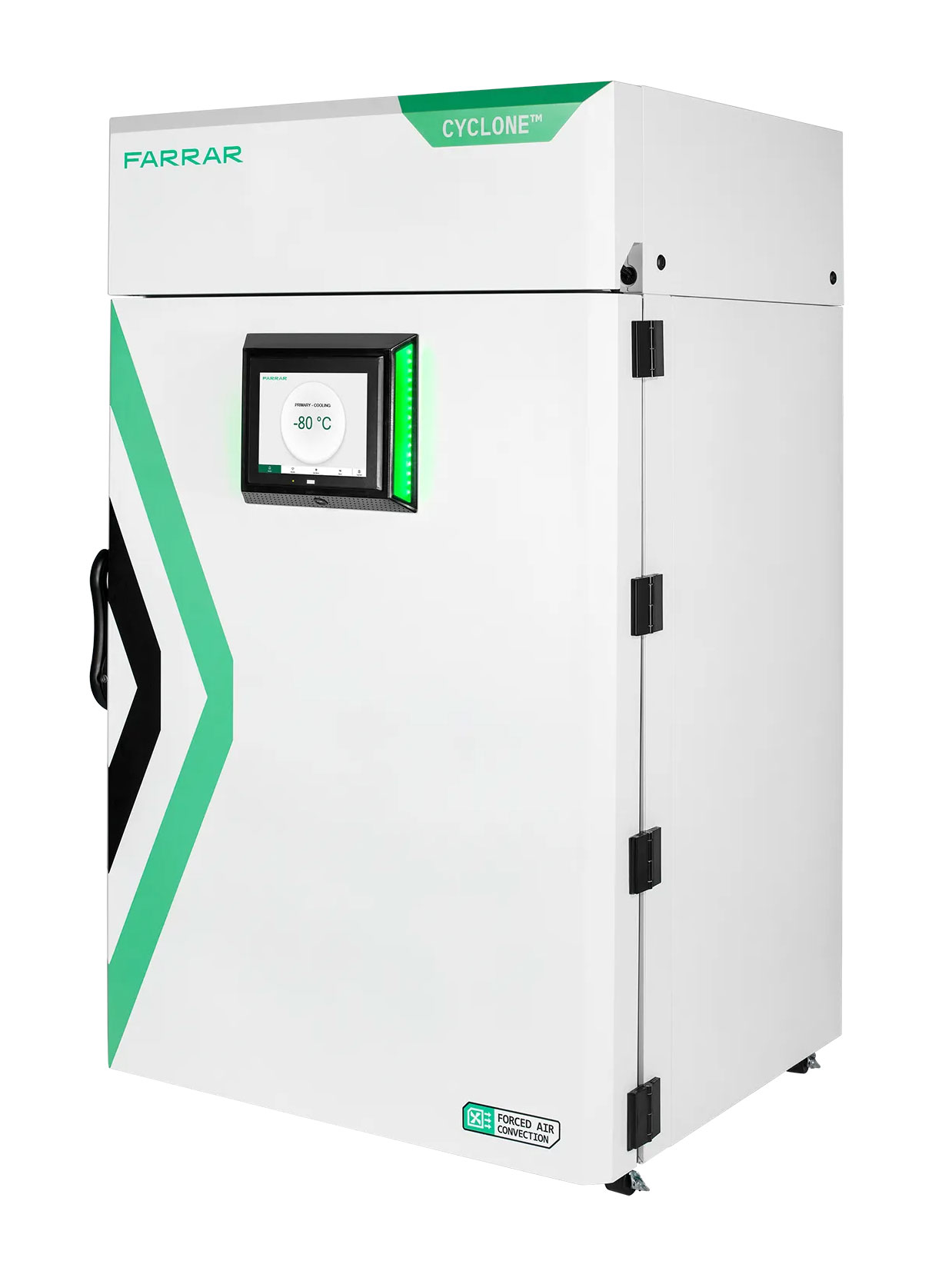

FARRAR® CYCLONE™ Ultra-Low Freezer Chamber -20°C to -80°C | 33 cu.ft. (934L)
Item#: CYCLONEThe FARRAR® CYCLONE™ Ultra-Low Freezer Chamber is a 33 cu. ft. forced-air convection freeze/store system engineered for precision freezing and long-term storage from research through commercial manufacturing. With a flexible operating range from -20°C to -80°C and exceptional temperature uniformity of ±3°C throughout the chamber, the CYCLONE™ delivers consistent performance for bulk materials, biologics, pharmaceutical products, and critical samples. Its innovative design provides up to three times the freezing capacity of traditional ultra-low freezers while maximizing usable storage volume and offering nearly unrestricted access to stored materials. ENERGY STAR® certified and powered by near-zero GWP refrigerants, the CYCLONE™ combines sustainability, rapid temperature recovery, BAS integration capabilities, and a quick-change refrigeration system to minimize downtime and maximize operational efficiency.
- 33 cu.ft. (934L), 630 2" boxes
- Temperature Range: -20°C to -80°C
- Electrical: Global 220-240 VAC, 50/60Hz
- Ambient Operating Temperature: 10°C to 32°C
- Uniformity Air Temperature: +/-3.0°C – Across All Temperature Bands (+4°C/-1°C at -80°C during defrost cycle)
- Temperature Control: Adjustable in 1°C increments
- Energy Consumption: 0.35 kWh/day/cubic ft.
- Display 12" (304mm) touchscreen
- Communication Protocol: Modbus TCP/IP and BACnet IP
- Alarms: High/low temperature, door ajar, power failure, remote alarm contacts
- External Communications:
- Dry Contacts Standard (C, NO, NC)
- Data Stream-Modbus TCP/IP and BACnet IP
- Unit Weight: 950 lbs
- Shipping Weight: 1,110 lbs.
- Evaporator Type: Forced-Air
- Condenser Cooling: Air
- Metering Device: Electronic
- High Stage/Low Stage Refrigerant: R-290 / R-170
- Voltage: 220-240 VAC, 50/60Hz
- Amps/Breaker: 1 x 5A / 15A
- Warranty: 2 Years Parts and Labor
- Flexible temperature set point (-20°C to -80°C) and tight uniformity (+/-3.0°C across the entire temperature band)
- Powerful performance and chest freezer-like temperature recovery with the convenience of an upright
- ENERGY STAR® certified using near-zero GWP refrigerants and ultra-low energy consumption to support sustainability goals without sacrificing performance or flexibility
- Maximum storage for the footprint
- Quick-change refrigeration system enables quick swap with minimal impact on operations
- Integration-ready with BMS/BAS systems and monitoring programs via Modbus TCP/IP and BACnet IP
- Fast temperature recovery from door openings
- Sustainable performance
- Flexible storage configurations
- Unmatched uniformity
- Designed for freezing and storing bulk and finished pharma materials in a single unit

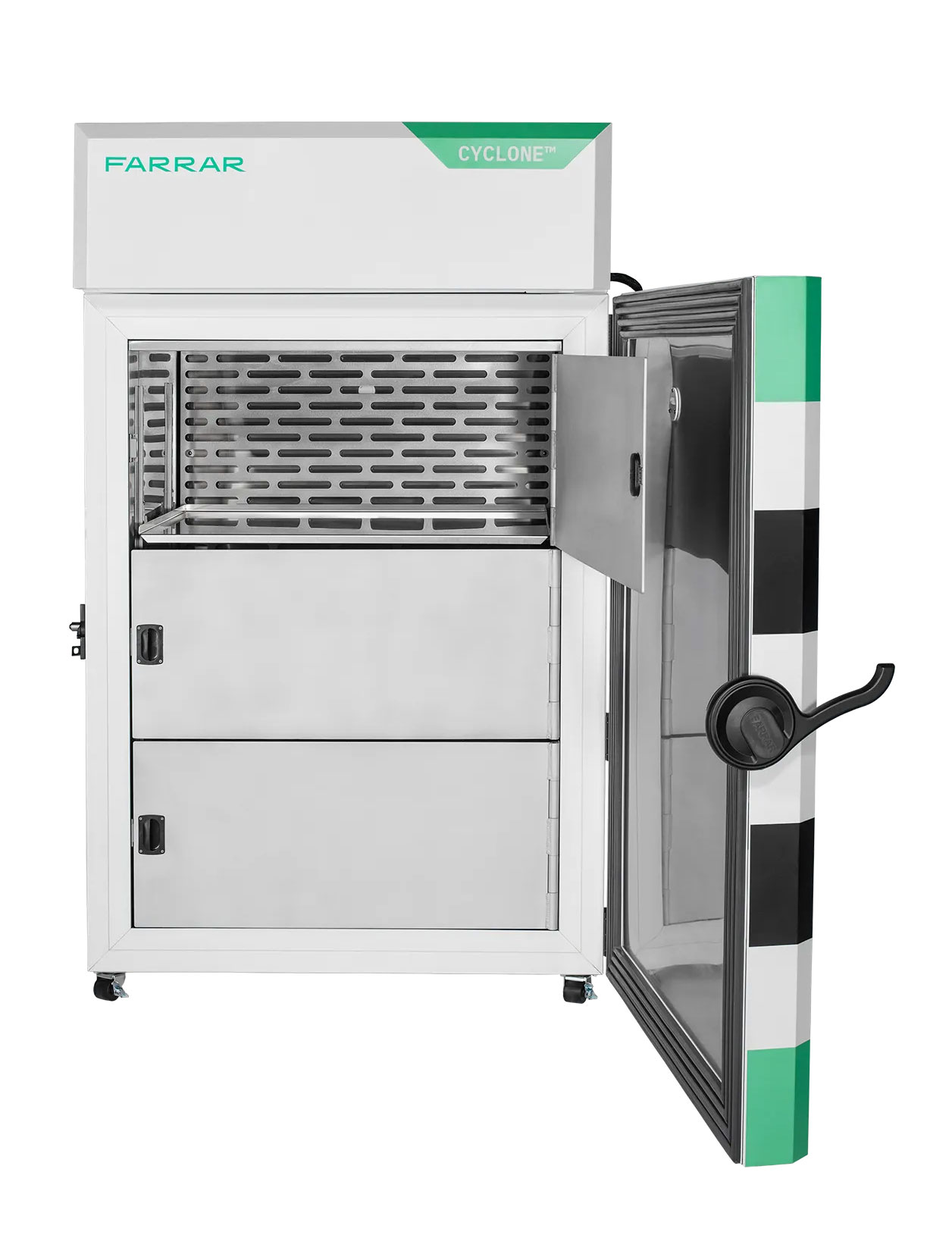

- Nearly unrestricted access to contents with fast door recovery
- Extremely tight uniformity allows full utilization of chamber at all set points
- Wide temperature set point range for process flexibility and can replace multiple pieces of specialized cold storage equipment
- Minimal down time when servicing with quick-change, packaged refrigeration system
- Purpose built for freezing and storage operations with 3x freezing capacity over standard ULTs
- Maximum storage volume for bags, bottles, and boxes
- Integrated system status interfaces with most BAS/monitoring solutions
- Automatic evaporator defrost helps ensure system level cooling capacity remains at peak performance
- ENERGY STAR® certified and powered by near zero GWP refrigerants that are electronically metered to maximize performance, reduce energy consumption and boost sustainability
