PHCbi VIP® ECO Natural Refrigerant 25.6 Cu. Ft. FrostLess Ultra-Low Temp Freezer (-86°C) | 115V | Capacity: 528 x 2″ Boxes
Item#: MDF-DU700ZHA-PAAn optimal choice for ultra-low temperature storage, the PHCbi brand MDF-DU700ZHA-PA ultra-low freezer offers less frost build-up than our category-leading models, while maintaining the reliability and energy efficiency today's laboratories require. Combat frost build-up damage to freezer components with this low frost model. Click here to view freezer rack configurations for this model.
FREE SHIPPING ON ALL PHCBI BRAND EQUIPMENT
For a limited time only get FREE Dock-to-Dock freight on all PHCbi equipment. Contact us for a proposal
- Product Specifications
- Product Features
- Literature & Manuals
- Product Videos
- Product Accessories
- Request a Proposal
- Volume: 25.6 cu. ft.(725 L)

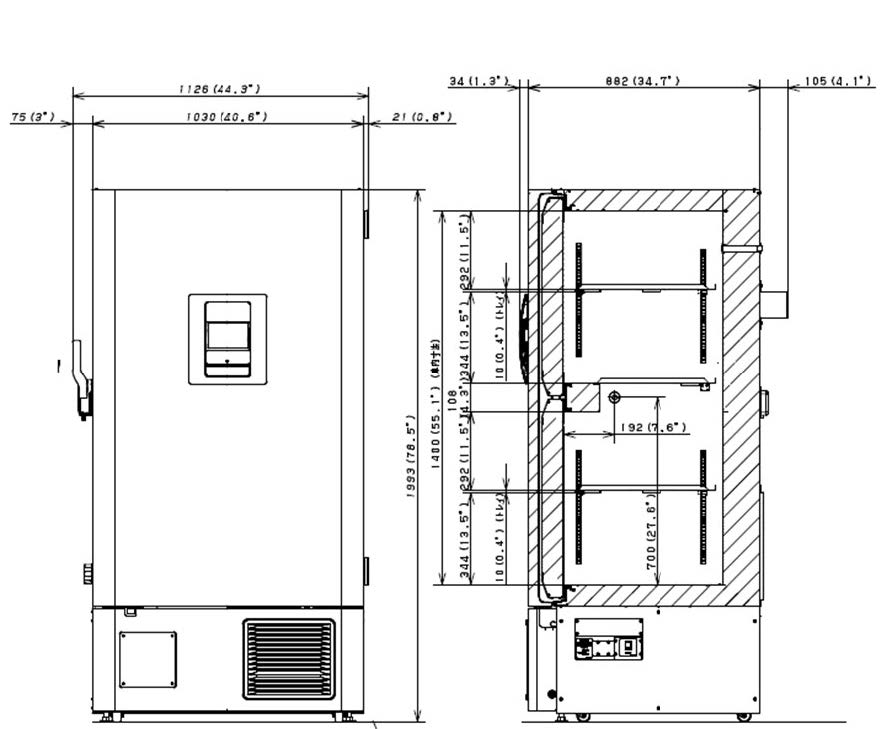

- External Dimensions (W × D × H): 40.6" × 37.5" × 78.5" | 1030mm × 882mm × 1993mm
- Internal Dimensions (W × D × H): 34.3" × 23.9" × 55.1" | 870mm × 607mm × 1400mm
- Capacity (2" boxes) qty 528
- Capacity (3" boxes) qty 336
- Inventory Racks (2" boxes) qty 24
- Inventory Racks (3" boxes) qty 24
- Temperature Control Range: -40°C to -86°C
- Ambient Temperature Operating Range: +5°C to +30°C

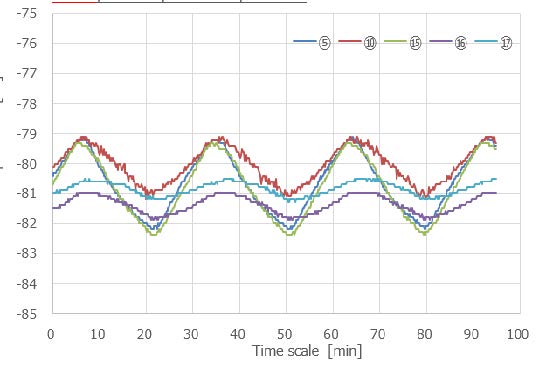

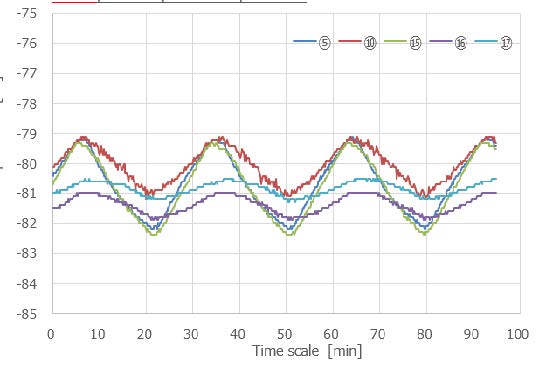

- Uniformity: ±5 (-80°C Set point)
- Controller: Microprocessor with non-volatile memory, USB data retrieval
- Digital Temperature Display: LCD Touchscreen
- Controller Security: Screen lock w/ password protection
- Temperature Sensor: RTD
- Alarms:
- Power Failure Alarm: Visual, Buzzer, Remote & Logged
- Temperature (High & Low): Visual, Buzzer, Remote, Adjustable & Logged
- Sensor Failure: Visual, Buzzer, Remote & Logged
- Door Open: Visual, Buzzer & Logged
- Maintenance Alert: Visual & Logged
- Remote Alarm Contacts: DC 30V 2A (normally open, normally closed, common)
- Cooling Method: Cold Wall (Synchronized variable speed cascade system)
- Compressors (High Stage I Low Stage): 920 W Variable | 920 W Variable
- Refrigerant Type (Natural Refrigerant): R-290 | R-170
- Insulation: Rigid polyurethane foam (PUF) + VIP Plus vacuum insulated panels
- Exterior & Interior Material: Painted Steel
- Outer Door: 1 lock with set of 2 keys (optional pad lock)
- Inner Doors: 2 VIP insulated with latch
- Power Consumption (kWh/Day): 7.1 (-80°C Steady state)
- Power Supply: 115V, NEMA 5-15P, 60 Hz 8ft cord length
- Running Amps (Max Amps): 2.2 (10.5)
- BTU Nominal (Per Hour): 810
- Noise Level: 52 dB(A)
- Access Port: 3, upper back center, bottom left rear, and bottom right rear, 0.6"
- Casters: 4 w/ 2 leveling legs
- Vacuum Release: 1 Manual
- Shelves: 2 Stainless Adjustable w/ Dedicated Center Shelf
- Shelf Dimensions (W × D):
- 2 Stainless Adjustable: 33.7" x 21" | 855 x 534 mm
- 1 Dedicated Center: 33.7" x 18.1" | 855 x 461 mm
- Max. Load per Shelf: 110 lbs/50 kg
- Certification: QPS Listed
- Warranty: 5 years parts and labor
Note: The CDC requires a data logger or temperature monitoring device to consistently record live temperature readings from the inside of a refrigerator or freezer when storing all types of vaccines. Constant monitoring of vaccines at recommended temperatures is essential for maintaining the efficacy of a vaccine. Failing to do so can lead to wasted vaccines or ineffective vaccines being administered to patients. Please follow the CDC requirements for Vaccine Storage & the COVID-19 Vaccination Program found here.

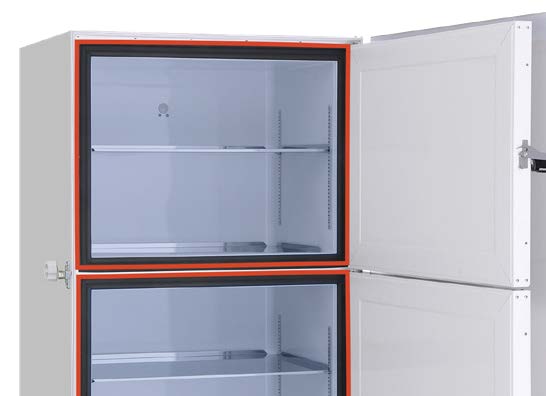

- Frost Resistant Inner Doors: Frost accumulation may cause damage and deterioration of freezer components. The all new thermal insulation design prevents large amounts of frost buildup on the outside of the inner doors of the MDF-DU700ZHA-PA, reducing maintenance requirements. Less frost buildup puts less stress on the outer door and latching mechanism to help preserve optimal performance.
- ENERGY STAR® Qualified: Smart compressors, natural refrigerants and integrated electronics combine to lower your facility’s operating costs. 7.1 kWh//day*, steady state at -80°C in a 23°C ambient. The use of environmentally friendly, natural refrigerants minimize environmental impact without compromising ultra-low temperature performance, helping achieve sustainability goals.
- Security Control and Monitoring: An eye level, door mounted color LCD touchscreen allows full user control while the USB port makes transferring logged data to a PC convenient. All performance attributes are displayed, and an internal temperature log is expressed in graphic form over time. Optional cloud services for remote monitoring are available.
- Frost Mitigation: Using the residual heat from the refrigeration system, the perimeter heater under the gasket allows for gentle warmth reducing ice buildup on the door gasket. Less frost build-up

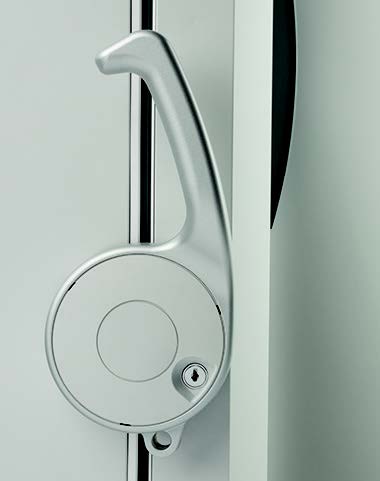

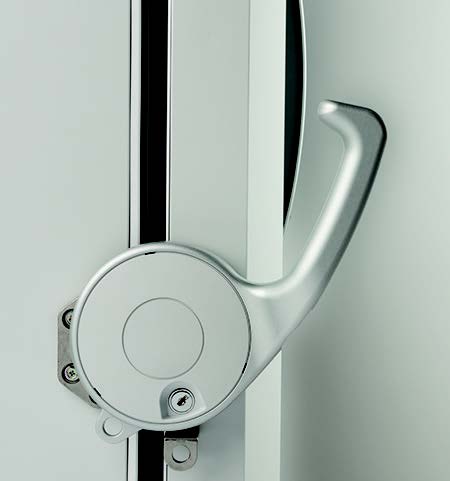

reduces manual labor and improves lab workflow. - EZlatch: The EZlatch is our holistic approach to accessing the freezer. This feature is engineered to tolerate frequent door openings and simplify freezer access through one-handed operation.
- Newly Available LabSVIFT Cloud Services:
- Obtain remote monitoring of critical freezer functions including:
- Real time chamber temperature
- Alarm conditions
- Door openings
- Ambient temperature
- Audit trails (optional)
- Meet Sustainability and Budget Goals: The use of energy efficient, natural refrigerants combined with an inverter-controlled compressor, lowers operational costs, environmental impact, and total cost of ownership.
