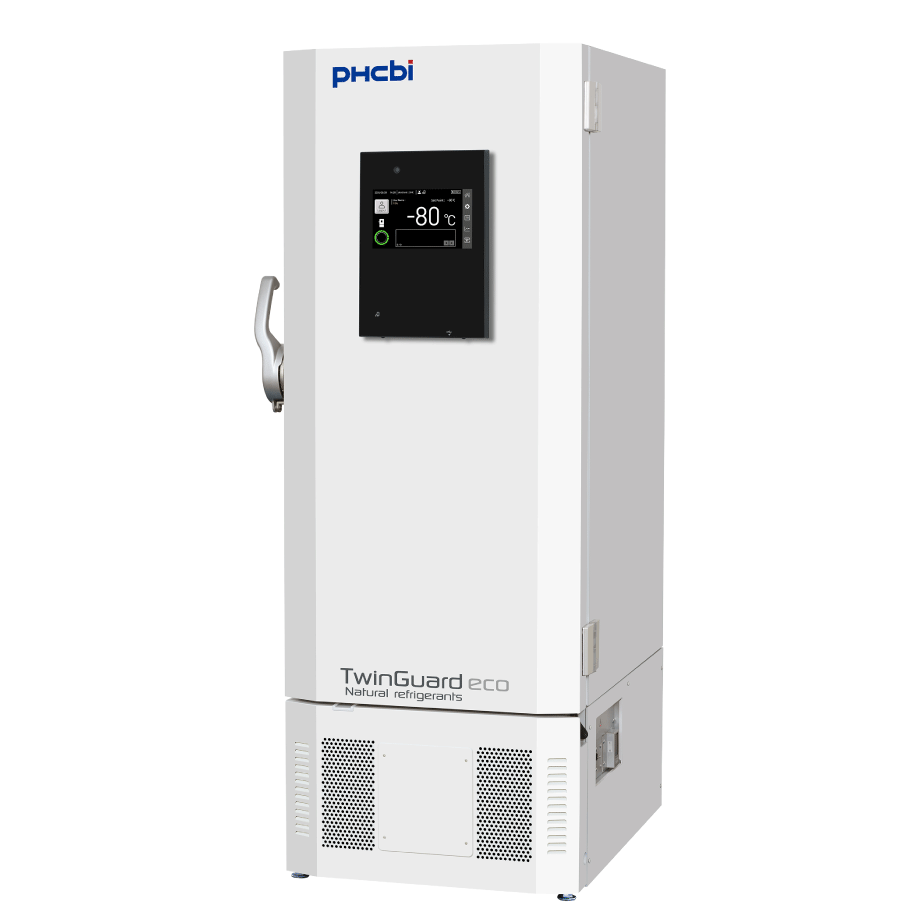

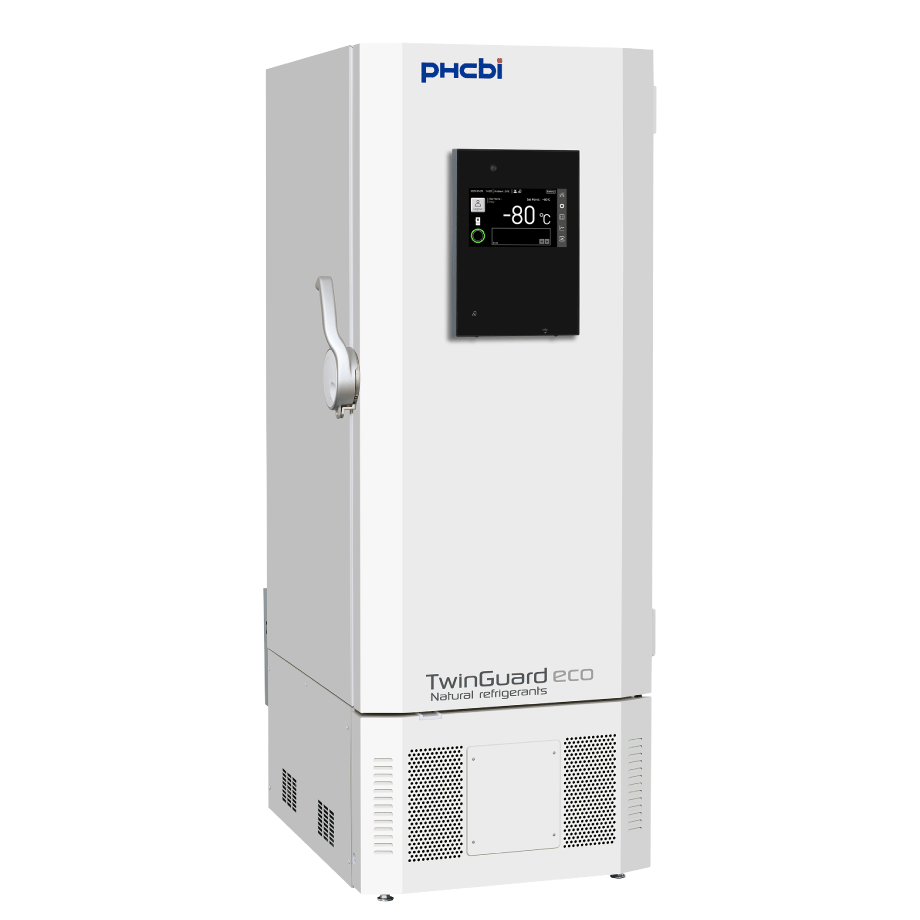

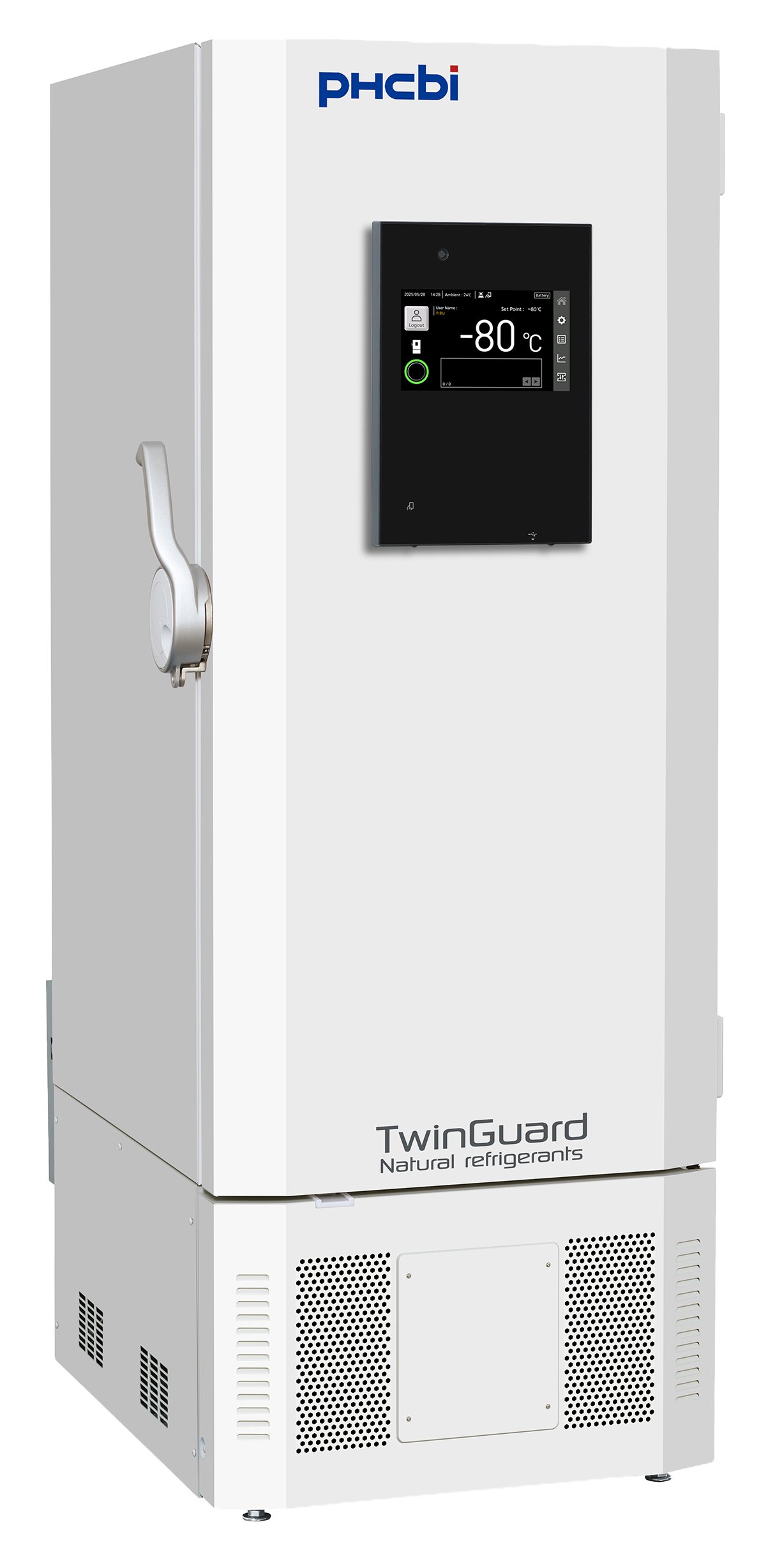

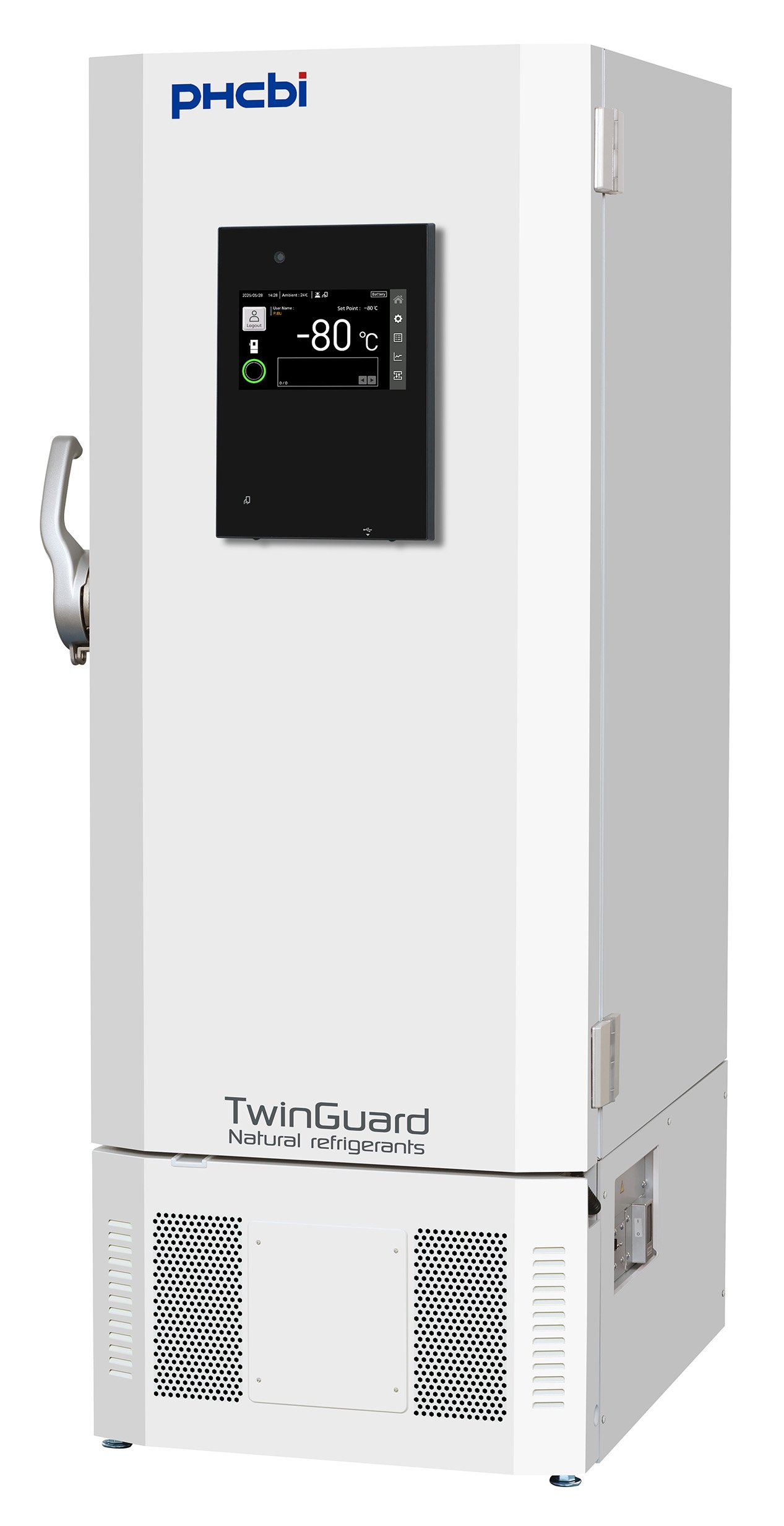

PHCbi TwinGuard ECO 12.7 Cu. Ft. Ultra-Low Freezer (-86°C) | 220V | Capacity: 240 x 2″ Boxes
Item#: MDF-DU303VXH-PAThe PHCbi TwinGuard ECO freezer delivers next-generation sample protection with dual cooling security, eco-friendly refrigerants, and energy efficiency. Designed for reliability in critical environments, it maintains performance down to -86°C while reducing energy use by more than 20%.* A modern touchscreen interface and integrated access control make it a smarter, greener solution for safeguarding high-value biological materials.
FREE SHIPPING ON ALL PHCBI BRAND EQUIPMENT
For a limited time only get FREE Dock-to-Dock freight on all PHCbi equipment. Contact us for a proposal
- Product Specifications
- Product Features
- Literature & Manuals
- Product Videos
- Product Accessories
- Request a Proposal
- Volume (cu.ft. | liters): 12.7 I 360
- External Dimensions (W × D × H) (inches | mm): 26.4 × 34.7 × 72.4 I 670 × 882 × 1840
- Internal Dimensions (W × D × H) (inches | mm): 19.3 × 23.6 × 48.4 I 490 × 600 × 1230
- Net Weight (lbs | kg): 496 I 225
- Storage Capacity:
- 240 standard 2” boxes
- 144 standard 3” boxes
- 12 Inventory Racks for 2" boxes
- 12 Inventory Racks for 3" boxes
- Display: 10.1 LCD touch screen
- Temperature Control Range: -50°C to -86°C in 1° increments (center of chamber, ambient temperature 30°C, no load)
- Insulation: Foamed-in-place and VIP Plus vacuum insulated panels

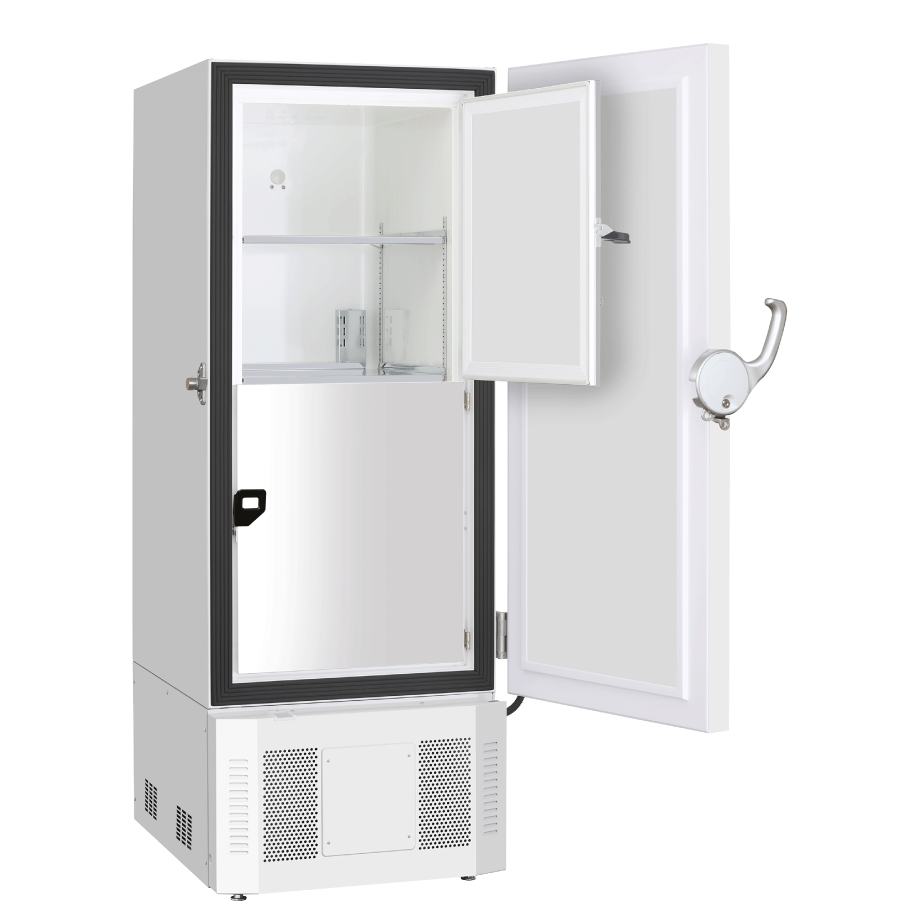

- Internal Doors: 2 insulated; ABS, with stainless steel frames and positive latches

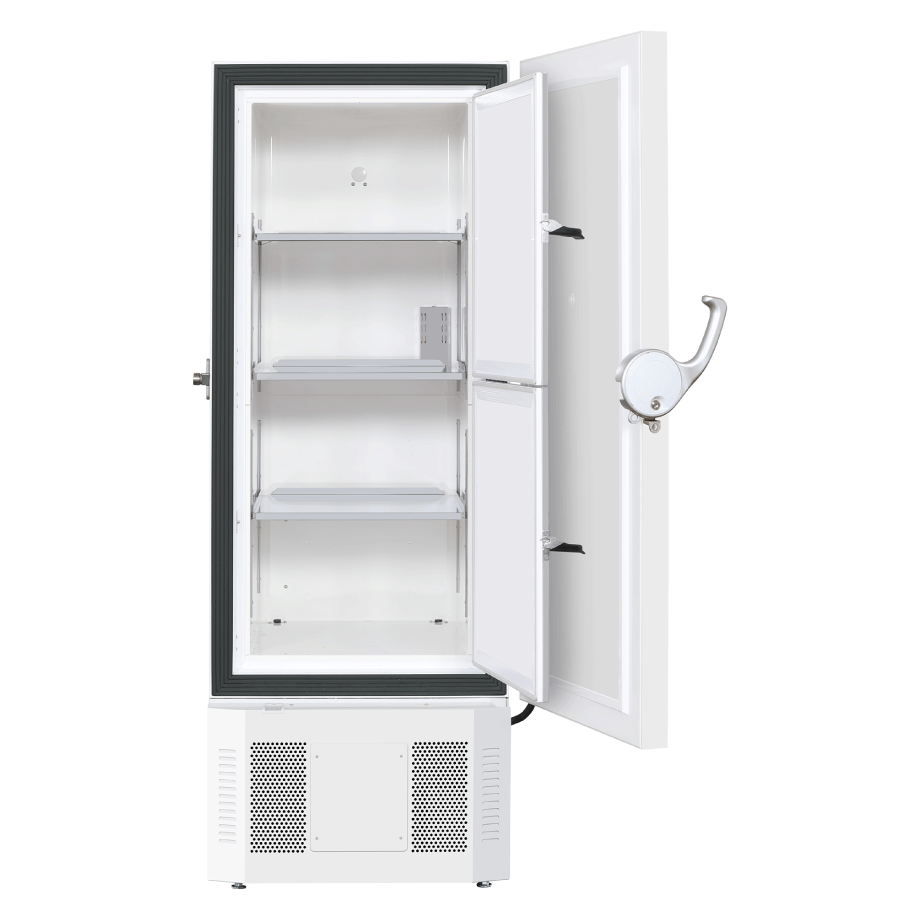

- Shelves: Stainless steel, 3 shelves (adjustable); Inner dimensions: 18.7"W x 20.9"D (475 x 531 mm); Load: 110 lbs (50 kg) per shelf
- Access Port: 3; upper back wall (back-up system), bottom left (recorder sensor), bottom right (access); Inner diameter: 0.6 in (17 mm)
- Compressor: (2) 550 W
- Refrigerant: HC Mixed refrigerant [R-600/R-170/R-50] 117.5g per circuit
- Alarms: High temperature, low temperature, power failure, door ajar, remote alarm, battery life, fan motor life, fan lock, cooling circuit abnormality
- Remote Alarm Contacts DC 30V 2A (normally open, normally closed, common)
- Cooling Performance: Normal operation: -86°C center of chamber (ambient temp. 30°C, no load); Secondary operation: -70°C center of chamber (ambient temp. 30°C, no load)
- Temperature Control System: Microprocessor, touchscreen data entry, password protected
- Data Management: USB Retreivable data, Cloud IoT capable with LabSVIFT
- Sound Level: 52 dB(A) (background noise 20 dB(A))
- Voltage: 220 V 60 HZ NEMA 6-15
- Power Consumption: 7.3 kWh/day
- Warranty: 5 years parts and labor
- Ultimate Sample Protection:The dual cooling system offers the highest level of sample protection through the use of two independent refrigeration systems that maintain -86°C temperature. In the event of a malfunction in one circuit, the second circuit seamlessly takes over, sustaining the in-chamber temperature at -75°C.
- Performance and Reliability: Naturally occurring hydrocarbon refrigerants are environmentally friendly with no ozone depletion. These refrigerants provide more efficiency without compromising cooling performance, ambient tolerance, and recovery speeds following door openings.

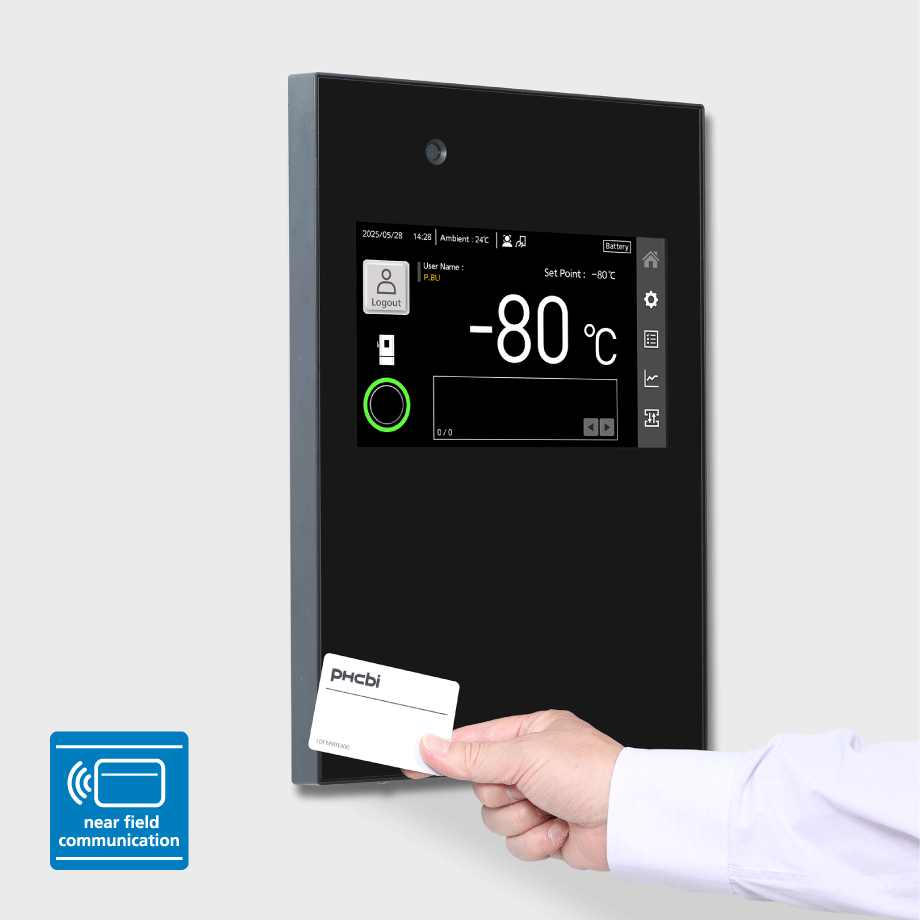

- Security Control and Monitoring: An eye level, door mounted, 10.1inch high resolution LCD touchscreen allows full user control. A USB port makes transferring logged data easy. Many attributes are displayed in an internal time-temperature log that can be expressed in graphic form over time. It seamlessly integrates with LabSVIFT® for temperature monitoring, predictive analytics, and lab management.
- Valuable Sample Storage: TwinGuard series freezers are ideal for safe, long term storage of your most high valued products, such as stem cells, embryos, cell lines, rare specimens, and other biological materials.
- Natural Refrigerants: Natural refrigerants with very low Global Warming Potential (GWP), advanced compressors, and integrated electronics help minimize operating costs by reducing energy consumption and heat output.
- Electric Lock: Track freezer access with details on who entered, when, and how long the door remained open with four lock options:
- Electric lock with passcode
- Dedicated key per unit
- Facial recognition (optional)
- Proximity card (optional)

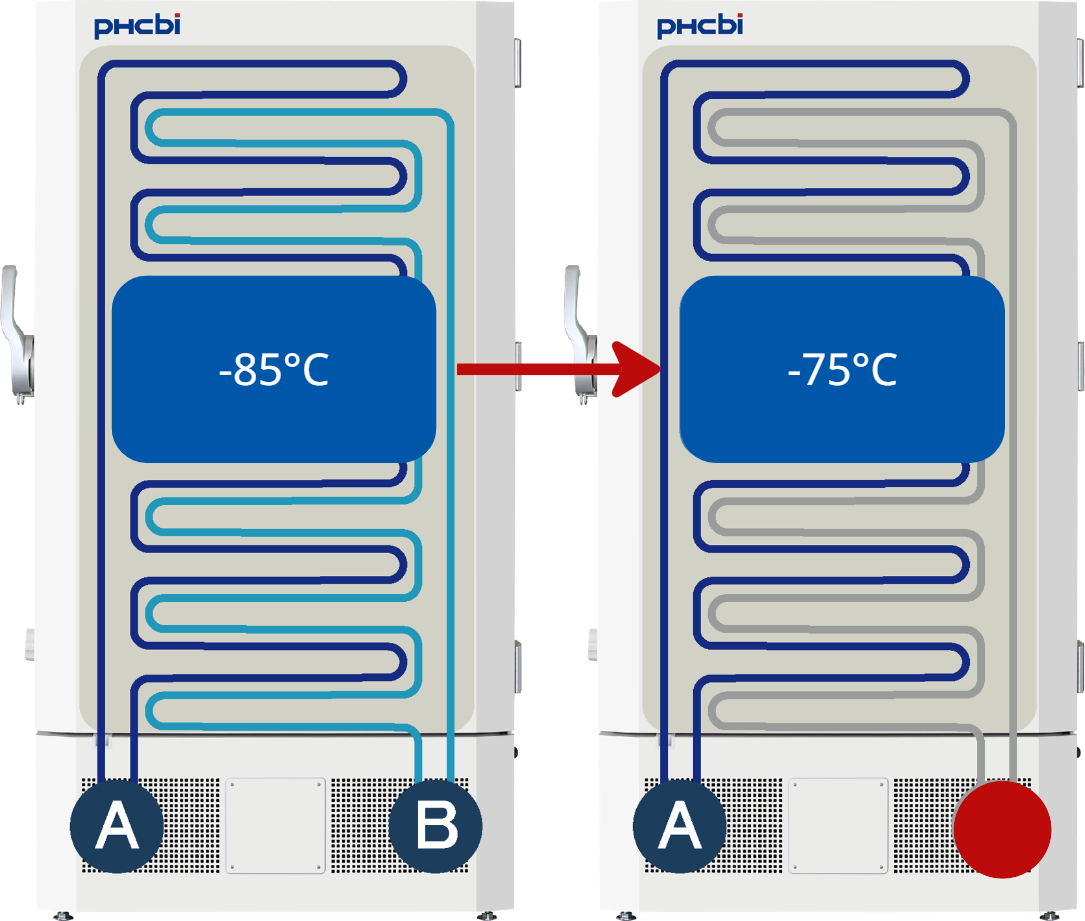

- Dual Cooling System: The dual cooling system offers ultimate sample protection. The two independent refrigeration systems provide a reliable and exceptionally stable -86°C ultra low temperature environment. If one system unexpectedly fails, the other can maintain the freezer in the -75°C range until service can be arranged.
- Filterless Design: The freezer’s filterless design minimizes routine maintenance by eliminating the need for regular filter cleaning.

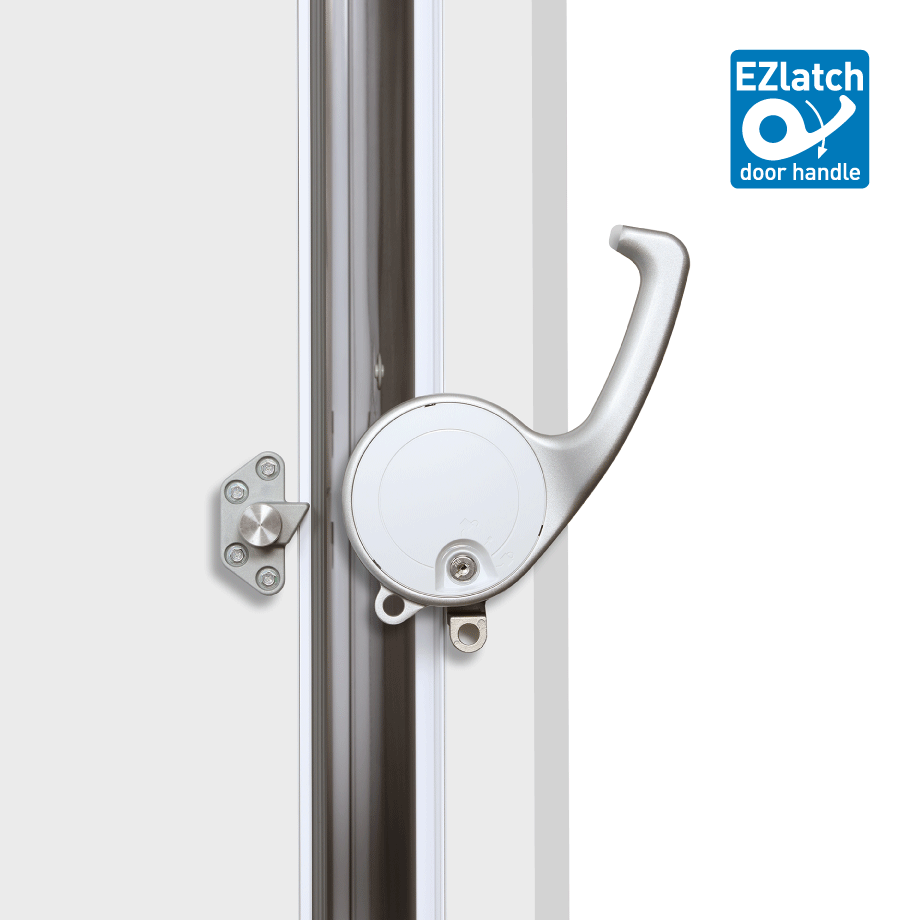

- EZlatch with Electronic Access Control: Standard electronic locking with unique key. Optional upgrades: NFC or facial recognition for advanced security.
