- Volume (cu.ft./liters): 25.3 / 715
- Exterior Dimensions: 90.6”W x 33.3”D x 42.1”H (2300mm x 845mm x 1070mm)
- Interior Dimensions: 58.3”W x 25.2”D x 29.8”H (1480mm x 640mm x 756mm)
- Settable Temperature Control Range of -50C to -86C
- Temperature Uniformity of +/- 5C across whole -50C to -86C temperature range
- Storage Capacity
- Capacity (2" boxes): qty 520
- Capacity (3" boxes): qty 360
- Inventory Racks (2" boxes): qty 40
- Inventory Racks (3" boxes): qty 40
- Access Port: 3, rear, 0.6"
- Casters: 6 ( 3 leveling feet on front base)
- Power Requirements of 208/230V/60Hz/single phase/15 amp breaker. (NEMA type 6-15R receptacle)
- Net Weight: 807 lbs.
- Warranty: 5 years parts and labor

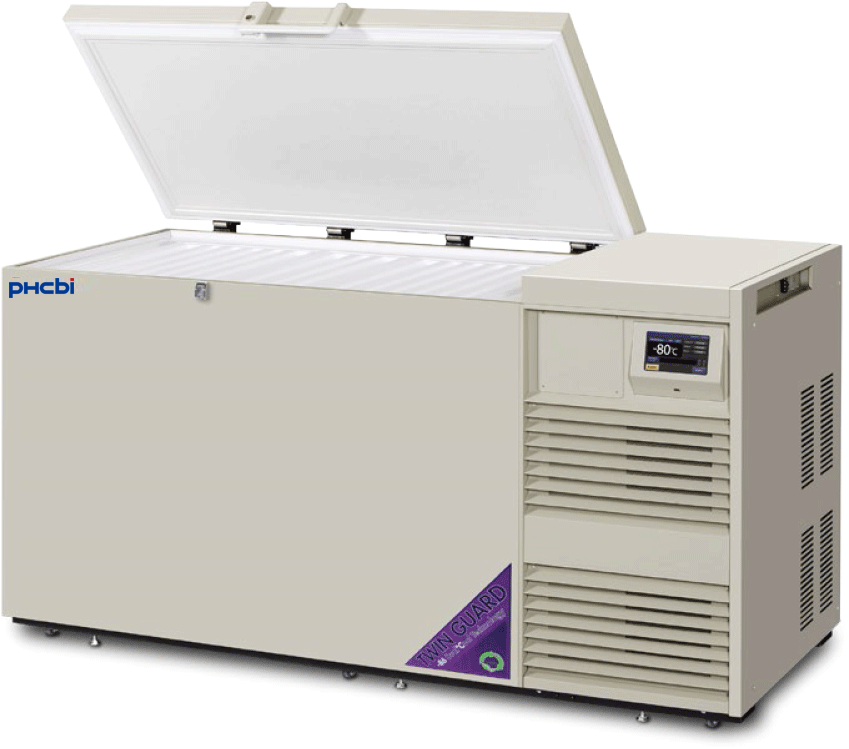

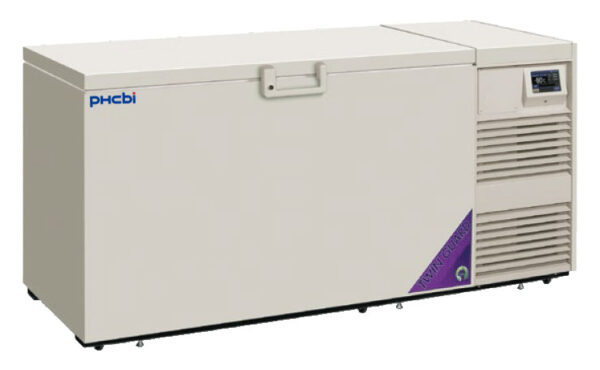

PHCbi TwinGuard® Series 25.3 Cu. Ft. Ultra-Low Temp Chest Freezer (-86°C) | 220V | Capacity: 507 x 2″ Boxes
Item#: MDF-DC700VXC-PAThe PHC (Panasonic) TwinGuard Series -86°C Ultra Low Temp Chest Freezer offers a large 25.3 cu. ft. storage capacity and Dual Cool Refrigeration Technology for safe preservation of laboratory samples. This freezer allows for a maximum capacity of (520) 2" Boxes with a settable temperature range of -50°C to -86°C. Click here to view freezer rack configurations for this model
FREE SHIPPING ON ALL PHCBI BRAND EQUIPMENT
For a limited time only get FREE Dock-to-Dock freight on all PHCbi equipment. Contact us for a proposal
- Product Specifications
- Product Features
- Literature & Manuals
- Product Videos
- Product Accessories
- Request a Proposal
- Dual Cool Design: Two Independent Refrigeration Systems
- PHC VIP® PLUS insulation for small footprint
- Full Color LCD Touch Screen Control for Easy Access to functions and messages
- Cryostorage box capacity of up to 520 two inch boxes
- Energy Saving Design with Eco-Mode operation
- Filterless construction and design
Accessories Included:
- 3 white polystyrene inner lids (4 compartments)
- 1 Access Port (located in back)
- Set of 2 keys for lid lock
- Ice Scraper
- 6 casters (installed)
- Operator’s manual
Warranty:
- Five (5) year full parts and labor warranty
Options:
- Model # MDF-UB5-PW, Liquid CO2 temporary refrigeration backup system
- Model # MTRC-954, Circular chart temperature recorder, 7 day rotation, 6” chart
- Model # MTRC-958, Stand alone Chart Recorder
- Lab Alert Wireless App-based Monitoring System
- 40 x SCR-132N Inventory Racks for 2” Cryostorage Boxes
- Calibration
- IQ Documents, Dynamic Testing, FAT and Complete On-Site Validation
PHCbi TwinGuard® -80°C Ultra-Low Freezers Expand a Circle of Protection
Preventive Maintenance Tips to Maximize Ultra-Low Freezer Performance
How to Safely Unpack the PHCbi Brand VIP ECO Ultra-Low Freezer
You may also like…
-
Standard Wrist Length Cryogenic Gloves | Extra Large
Item #: LAB-CG-WR-XL$118.00$90.86 VIEW PRODUCT -
Standard Wrist Length Cryogenic Gloves | Medium
Item #: LAB-CG-WR-M$118.00$90.86 VIEW PRODUCT -
Standard Wrist Length Cryogenic Gloves | Small
Item #: LAB-CG-WR-S$118.00$90.86 VIEW PRODUCT -
Standard Wrist Length Cryogenic Gloves | Large
Item #: LAB-CG-WR-L$118.00$90.86 VIEW PRODUCT -
Excursion-Trac Ultra-Low Traceable® Datalogger Thermometer – 1 Stainless Steel Probe
Item #: LABC3-6426-3$236.00$224.20 VIEW PRODUCT
Request a Proposal
Related Products
-
PHCbi TwinGuard® Series 25.7 Cu. Ft. Ultra-Low Temp Freezer (-86°C) | 220V | Capacity: 576 x 2″ Boxes
Item #: MDF-DU702VXC-PA VIEW PRODUCT -
PHCbi TwinGuard® Series 18.6 Cu. Ft. Ultra-Low Temp Freezer (-86°C) | 220V | Capacity: 384 x 2″ Boxes
Item #: MDF-DU502VXC-PA VIEW PRODUCT -
PHCbi TwinGuard® Series 12.7 Cu. Ft. Ultra-Low Temp Freezer (-86°C) | 220V | Capacity: 240 x 2″ Boxes
Item #: MDF-DU302VX-PA VIEW PRODUCT -

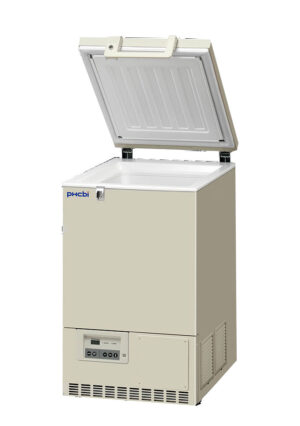

PHCbi VIP® Series 3.0 Cu. Ft. Ultra-Low Temp Chest Freezer (-86°C) | 115V | Capacity: 42 x 2″ Boxes
