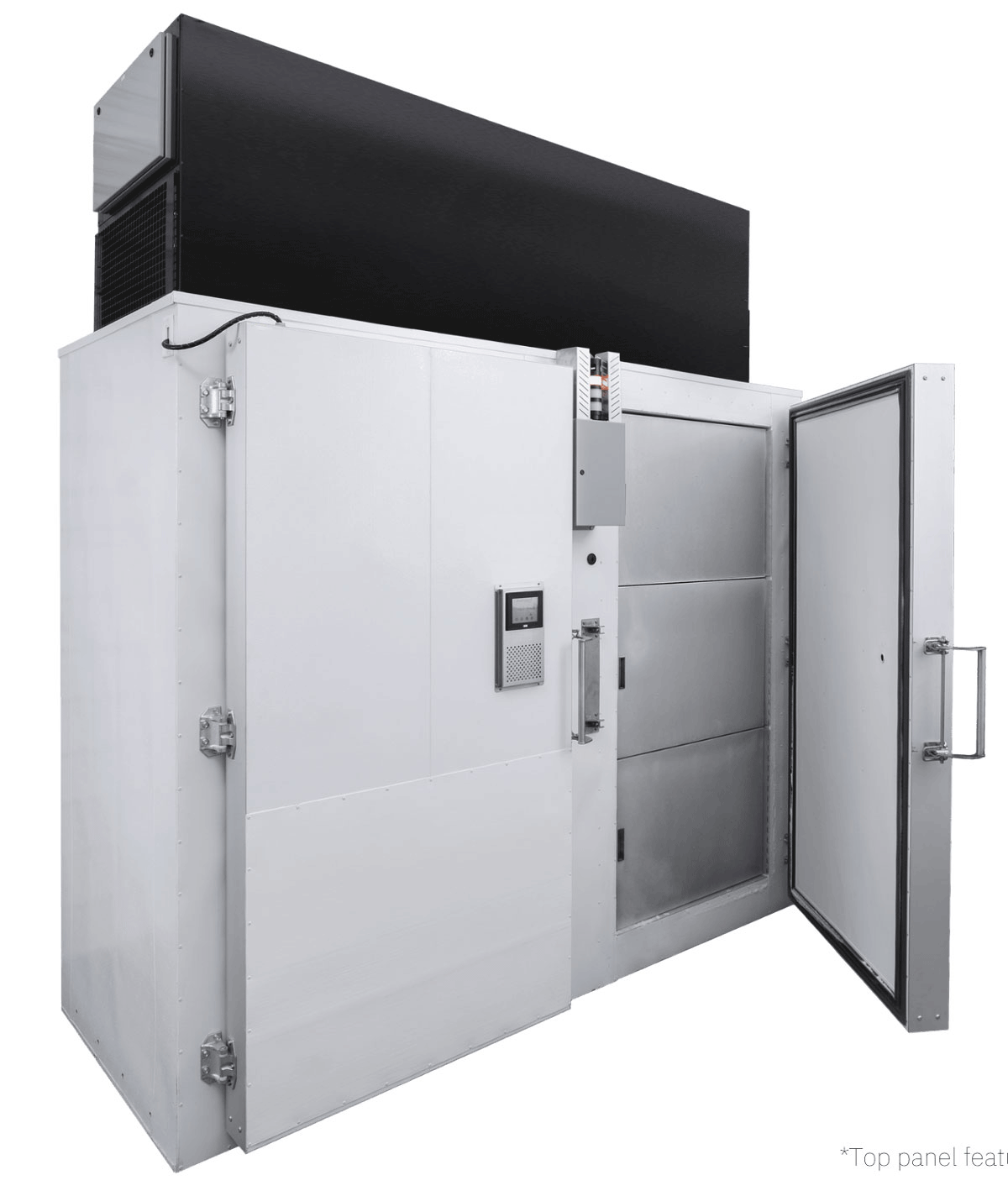

FARRAR™ Ultra-Low Chamber Storage Freezer | -20°C to -80°C

Item#: ULC-WR

FARRAR™ Ultra-Low Chamber (ULC) and 'Pallet' Ultra-Low Chamber (ULC-P) are the only -20°C to -80°C, forced-air, ultra-low-temperature chambers on the market. Purpose-built for life sciences, our ultra-low temp bulk storage solutions are unmatched in temperature uniformity and recovery.

Request a Quote

Supplier: FARRAR™

Tag: Scientific Freezers

Total Volume: 190 Cu. Ft. (5,380 L)
Interior Dimensions (W x D x H): 110” x 38” x 90” (2794 x 965 x 2286 mm)
Exterior Dimensions (W x D x H): 122” x 57” x 143” (3098 x 1448 x 3632 mm)
Area Footprint: 47 sq.ft./ 4,36 m2
Unit Weight: 3,150 lbs. (1,429 Kg)
Shipping Weight: 3,900 lbs. (1,769 Kg)
Application: Pharmaceutical / Biorepository / Biobank
Chamber Volume: 190 Cu. Ft. (5,380 L)
Temperature Range: Programmable -20°C to –80°C
Electrical: 208/230 VAC, 1 Ø, 60Hz, 60Hz
Circuit Breaker: 2 x 30 amp
Ambient Operating Temperature: +18°C to +30°C
Uniformity Air Temperature: +/- 3.0°C (empty chamber)
Uniformity Product Temperature: +/- 1.0°C
Evaporator/QTY: Forced - Air / 2
Condenser/QTY: Forced - Air Cooled / 2
Metering Device: Electronic
High Stage/ Low Stage: R-449A / R-508B
Air Cooled Condenser Requirements: +18°C to +30°C
Water Cooled Condenser Requirements:
- Tower Water 85°F (29.5°C), Max. flow rate 7gpm (26.5 l/min)
- Chilled Water 45°F (7.2°C), Max. flow rate 3.5gpm (13.25 l/min)
Temperature Controller/QTY: Microprocessor/ 2
Display/QTY: LCD/ 2
Sensor/QTY: RTD PT100 Din A/ 2
Alarms: High/Low temperature, door ajar, power failure, remote alarm contacts
Dry Contacts: Standard (C, NO, NC)
Warranty: 2 years parts
Optional Shelves: 54 x 36 in / 1372 x 914 mm (W x D)

Specifically designed for Pharmaceutical, Biorepository / Biobank
Largest volume space available for a -20°C to -80°C reach-in freezer
Smallest foot print with largest storage volume
Forced-air circulation provides fastest temperature recovery from door opening
Fully redundant systems offer peace of mind (display, electrical, refrigeration and controls)
We designed the interior to be fully customizable ; from vials to bulk containers, cassettes and bioshells.
Optional shelving system is available

Options:
