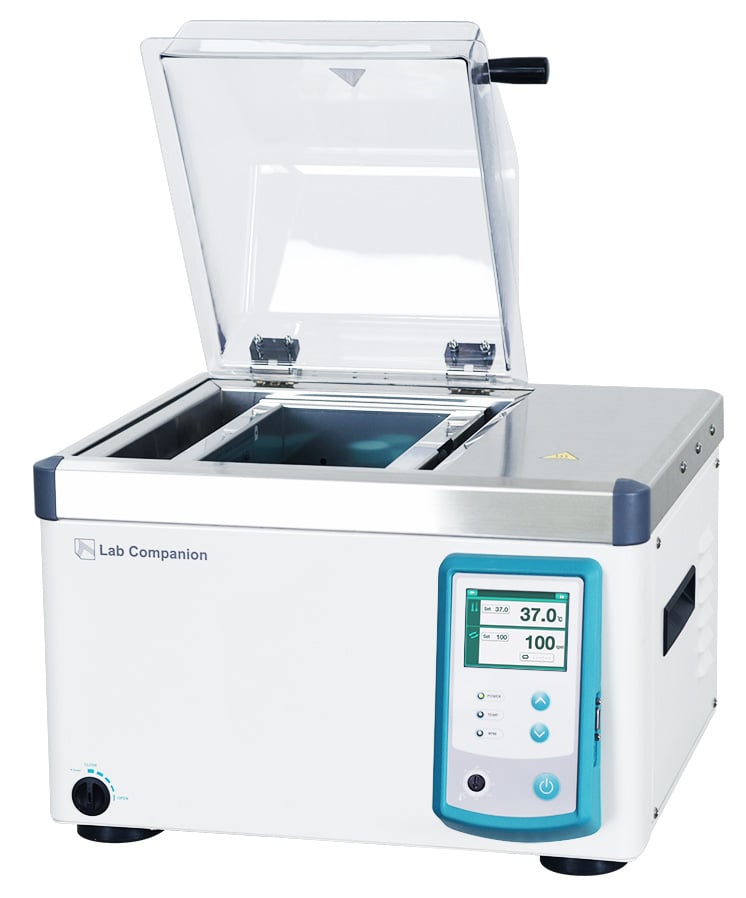

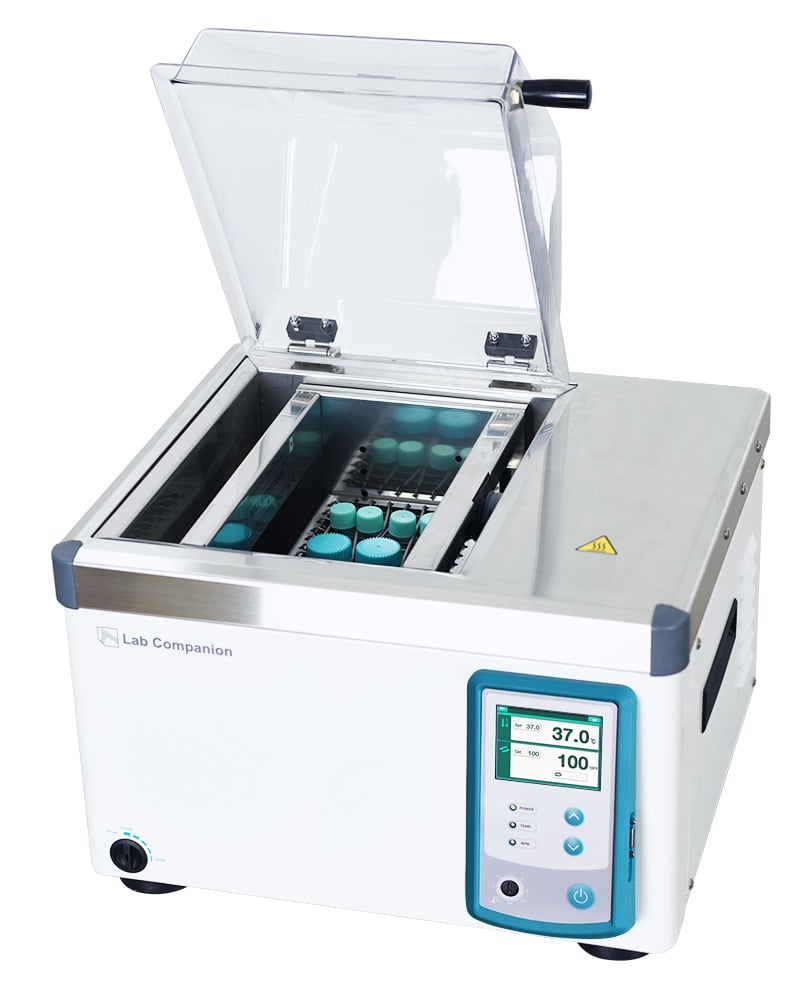

JeioTech BS2-10 Reciprocal Shaking Heating Bath | 17L
Item#: AAH44103UIdeal for sample incubation condition for DNA, tissue culture, heat-sensitive samples.
$3,700.00 $3,515.00
- Bath volume (L / cu ft): 17 / 0.6
- Temperature
- Working temp. range (℃ / ℉): Amb. +5 to 100 / Amb. +9 to 212
- Temp. stability at 50℃ (±℃ / ℉): 0.1 / 0.18
- Shaking system
- Motion type: Reciprocal
- Frequency (rpm): 30 to 200
- Stroke length (mm / inch): 25 / 0.98
- Dimension
- Bath opening / depth (W x L x D) (mm / inch): 143 x 269 x 192 / 5.6×10.6 x 7.6
- Exterior (W x L x H) (mm / inch): 474 x 417 x 426 / 18.7 x 16.4 x 16.8
- Net weight (kg / lbs): 23 / 51
- Electrical requirements (120V, 60Hz, A): 7.1
Performance
- Temperature range from ambient +5°C to 100°C (amb. +9℉ to 212℉).
- Precise rpm(Max 200rpm) and temperature(Max 100℃) control with accuracy.
- Excellent temperature distribution by shaking motion. (50℃ ±0.1℃)
- Better performance with 3-points temperature calibration and 1-point shaking calibration.
- Optimal PID control for the Bath.
- Bath structure for a smooth water circulation flow.
- Extended height for larger sample volumes. (maximum 2.8L of flasks)
Convenience
- Automatic On/Off timer. (up to a maximum of 999 hours and 59 minutes)
- Easy operation with a touch color display.
- Drain port of better accessibility located on the side.
- USB port to connect to PC for recording and monitoring.
- Transparent gable roof-shape cover prevents condensed water from falling onto specimen.
- Corrosion resistance spring wire rack (1ea) is provided. (Standard)
- Real-time temperature and rpm control via mobile monitoring system. (Option)
Safety
- Audio and visual alarms and heater shutdown in case of water shortage.
- Alarm for temperature and rpm discrepancies or abnormal condition of temperature sensor.
- Over-current and short circuit protection of device.
