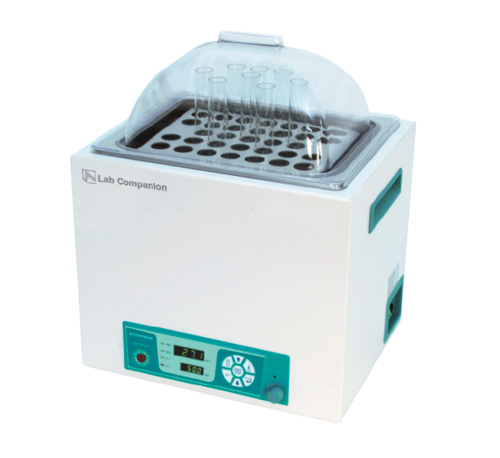

Lab Companion BW-10H Heating Bath l 11.5L
Item#: AAH45123UDual model heating bath with agitation function and independent control.

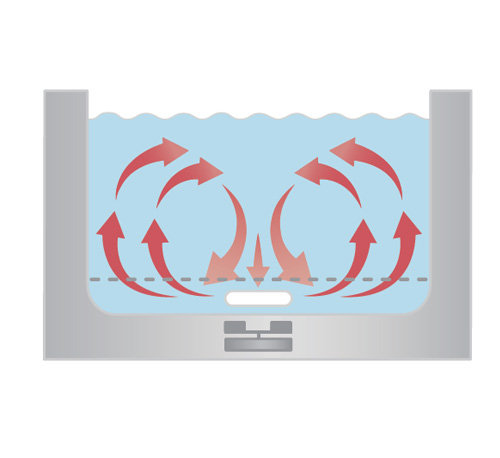

- Circulation of solution by an agitator.
- Independent temperature control for each bath.
- 120V 60Hz 21lbs 14.33 x 14.44 x 12.5 11.5L (0.4cu ft)
Please Note: image shown includes additional accessories not included with purchase
$1,276.00 $1,212.20
- Type: Single Bath
- Bath volume (L / cu ft): 11.5 / 0.4
- Working temp. range (℃ / ℉): Amb. +5 to 100 / Amb. +9 to 212
- Temp. stability at 50℃ (±℃ / ℉): 0.1 / 0.18
- Heat up time to 70℃ (min): 45
- Bath opening / depth (W x L, D) (mm / inch): 300 x 240, 200 / 11.8 x 9.5, 7.9
- Exterior (W x L x H) (mm / inch): 364 x 316 x 318 / 14.3 x 14.4 x 12.5
- Net weight (kg / lbs): 9.5 / 21
- Electrical requirements: 120V, 60Hz, 8.3A
Structural Functional Features
- Incorporates agitation function by magnetic stirring to mix solution uniformly and improve temperature distribution
- Dual type is a model series that allows for independent temperature
- control for each bath and also reduces space and costs of experiments.
- Compact design for excellent space utilization.
- The internal bath is integral structure. It is made of stainless steel and has excellent durability.
- The control part at the bottom front is tilted, making it easier to set up the product and check information.
- Convenient for carrying and moving with handles on the left and right sides.
Use Convenience Features
- Microprocessor PID method for precise temperature control.
- Optimized temperature control with temperature auto-tuning.
- Calibration function minimizes temperature difference.
- Save and use 3 frequently used temperatures.
- Possible to select whether to use the agitation function or not, and scale-type agitation speed control makes it easy to operate.
- Automatic restart of operation when power is restored after sudden
- power failure.
Outstanding Safety
- Top-rated overheating prevention system. (registration 10-0397583)
- Over temperature limit function.
- Malfunction prevented by controller lock function.
- Safe structure in which the heater, sensor, and pump inside the bath are separated by covering plates.
- If an error occurs during operation, the details of the error are shown on the display and an alarm is sounded.
- Safe structure in which the heater, sensor, and pump inside the bath are separated by covering plates.
