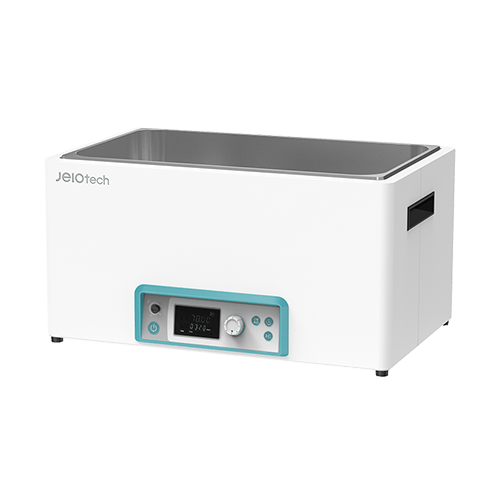

Jeio Tech BW3-20G Heating Bath | 20L
Item#: AAH41326UThe Jeio Tech BW3-20G Heating Bath is a 20L laboratory water bath designed for reliable sample heating and temperature-sensitive applications. It features microprocessor PID temperature control, auto-tuning, 3-point calibration, and a clear VFD display to support accurate, user-friendly operation in daily lab workflows. Built with a durable stainless steel bath, integrated safety protections, convenient drain valve and side handles, plus memory and timer functions, the BW3-20G offers dependable performance and practical operation for routine heating tasks.
$1,246.00 $1,146.00
- Bath volume (L / cu ft): 20 / 0.7
- Temperature
- Working temp. range (℃ / ℉): Amb. +7 to 100 / Amb. +12.6 to 212
- Temp. stability at 50℃ (±℃ / ℉): 0.3 / 0.54
- Heat up time to 70℃ (min): 44
- Dimension
- Bath opening / depth (W x L, D) (mm / inch): 498 x 300 x 200 / 19.6 x 11.8 x 7.9
- Exterior (W x L x H) (mm / inch): 564 x 356 x 294 / 22.2 x 14 x 11.6
- Net weight (kg / lbs): 18.5 / 40.8
- Electrical requirements (120V, 60Hz, A): 8.3
- Plug Type: Type B l NEMA 5
- Cat. No.: AAH41326U
Structural Functional Features
- Drain valve for easy draining of bath solution.
(except for BW3-05G model) - Convenient structure for sample handling with device control part located on the inside.
- Convenient for carrying and moving with handles on the left and right sides.
- The internal bath is integral structure. It is made of stainless steel and has excellent durability.
- Compact design for excellent space utilization
Use Convenience Features
- Clear VFD panel for clear information display.
- Microprocessor PID method for precise temperature control.
- Optimized temperature control with temperature auto-tuning.
- 3-point calibration function minimizes temperature difference.
- Wait On/Off timer. (up to 99 hours 59 minutes)
- Save and use 3 frequently used temperatures.
- Automatic restart of operation when power is restored after sudden power failure.
Outstanding Safety
- Top-rated overheating prevention system.
(registration 10-0397583) - Over temperature limit function.
- Safe structure in which the heater, sensor, and pump inside the bath are separated by covering plates.
- Malfunction prevented by controller lock function.
