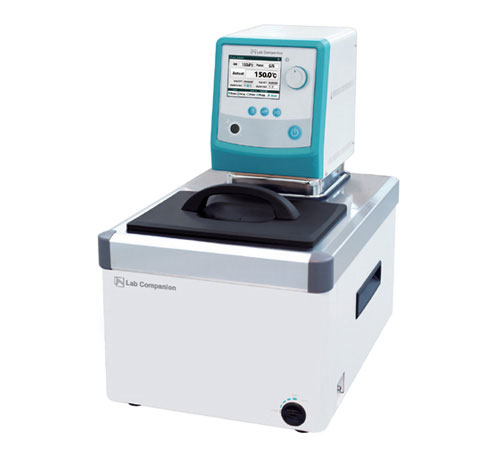

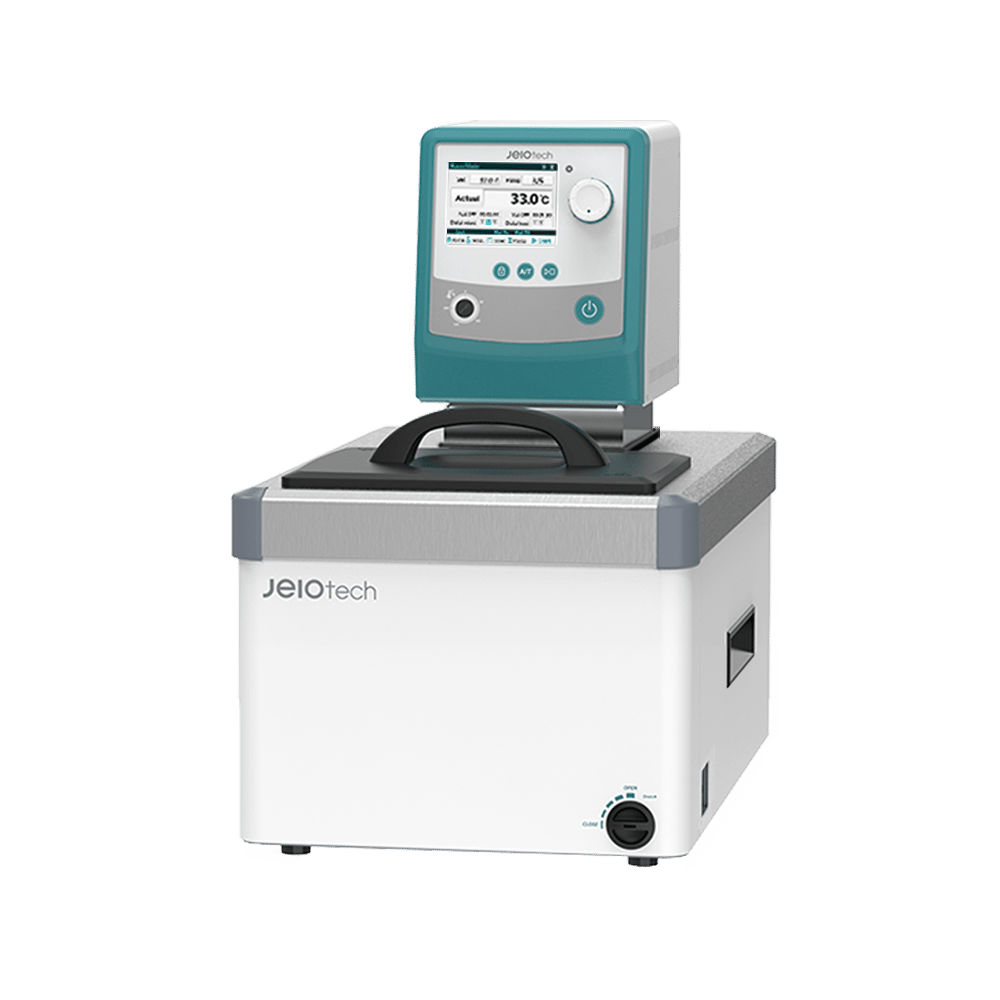

Jeio Tech CW3-10P Heating Bath Circulator | 10L

Name: Jeio Tech CW3-10P Heating Bath Circulator | 10L
Brand: Jeio Tech
SKU: AAH52752U
Availability: InStock

Item#: AAH52752U

The CW3-10P Heating Bath Circulator is suitable for precise temperature testing above ambient temperature

~~$2,752.00~~ $1,499.00

Supplier: Jeio Tech

Bath volume (L / cu ft): 10 / 0.4
Temperature
- Working temp. range (℃ / ℉): Amb. +10 to 150 / Amb. +18 to 302
- Temp. stability (±℃ / ℉): 0.05 / 0.09
- Heat up time to 70℃ / 158 ℉ (min): 31
Dimension
- Bath opening / depth (W x L x D) (mm / inch): 211 x 154 x 180 / 8.3 x 6.1 x 7.1
- Exterior (W x L x H) (mm / inch): 289 x 450 x 444 / 11.4 x 17.7 x 17.5
- Net weight (kg / lbs): 15.0 / 33.1
Electrical requirements (120V, 60Hz, A): 8.6A
Plug Type: Type B l NEMA 5
Cat. No.: AAH52752U

Program Type Features

Structural Functional Features

Minimizes evaporation of internal solution at high temperatures and low-heat conductivity bath cover is provided as standard.
Minimized usage space with compact design.
Excellent durability even at high temperatures and repeated us.
Internal circulation and internal/external circulation of solution.
Easy to move and manage with the body handle.
Stainless steel material inside and at the top of the bath is excellent in terms of corrosion resistance and clean maintenance.
Drain valve for easy draining of bath solution.
Includes rubber feet for stable product operation.
5-steps pump speed adjustment with simple operation.

Outstanding Safety

Top-rated overheating protection system. (Registration KR 10-0397583)
Over temperature limiting function.
Prevention of mal-operation with controller lock function.
Check and alert of temperature sensor abnormality.
If an error occurs during operation, the details of the error are displayed on the screen and an alarm is sounded.
Safe structure in which the heater, sensor, and pump inside the bath are separated by covering plates.

Use Convenience Features

Temperature calibration of up to 3 points provides more reliable temperature control.
Optimized control with auto-tuning.
Save and use 3 frequently used temperatures.
Wait On/Off timer. (up to 999 hours 59 minutes)
Microprocessor PID method for precise temperature control.
Convenient remote control and data management through built-in dedicated software.
Notification of low solution. (low level limiter)
Automatic restart of operation when power is restored after power failure.
Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system)
(when purchased LC GreenBox)
