- Bath volume (L / cu ft): 5 / 0.2
- Working temp. range (℃ / ℉): -25 to 150 / -13 to 302
- Temp. stability (±℃ / ℉): 0.05 / 0.09
- Cooling Capacity
- at +20℃ (+68℉), W: 560
at 0℃ (+32℉), W: 360
at -20℃ (-4℉), W: 180
- at +20℃ (+68℉), W: 560
- Bath opening / depth (W x L x D) (mm / inch): 211 x 154 x 180 / 8.3 x 6.1 x 7.1
- Exterior (W x L x H) (mm / inch): 366 x 532 x 780 / 14.4 x 20.9 x 30.7
- Net weight (kg / lbs): 44 / 97
- Electrical requirements (120V, 60Hz, A): 12.6
- Plug Type: Type B l NEMA 5
- Cat. No.: AAH57053U

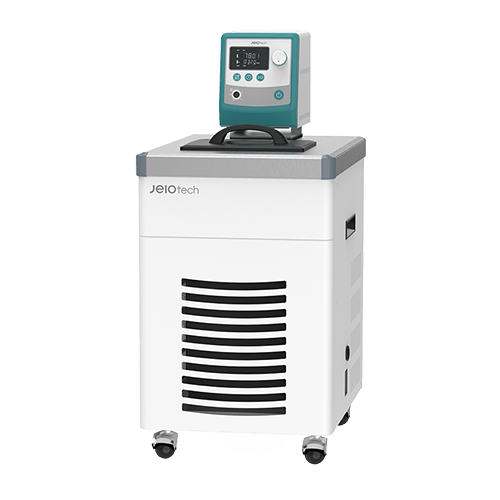

Lab Companion-RW3-1025 Refrigerated & Heating Bath Circulator including RS-232 interface and software (10L)Item#: AAH57053U
Stable internal/external temperature control
- Various temperature range and capacity.
- Smart refrigerating system.
- 120V 60Hz
REQUEST A QUOTE
- Alert function when deviation from control temperature upper limit and lower limit occurs.
- Easy and convenient to use with simple operation.
- Clear VFD panel for clear information display.
- Applies smart refrigeration system using Lab Companion’s technology.
- Optimized control reduces overall power consumption.
- Easily removable condenser grill structure.
- Equipped with advanced filter with flat plate structure. in refrigeration condenser.
- Compact structure design.
Structural Functional Features
- Internal circulation and internal/external circulation of solution.
- Refrigerator stopped automatically when it rises too high of temperature, saving power, extending freezer life, and reducing noise generation.
- High-efficiency refrigeration through application of electronic expansion valve.
- Built-in bath cover with handle.
- Internal bath with seamless integral structure.
(except RW3-3025, 3035 models)
- Stainless steel material inside and at the top of the bath is excellent in terms of corrosion resistance and clean maintenance.
- Left and right handles for convenient handling.
- Drain valve for easy draining of bath solution.
- Easy-to-clean refrigerator condenser filter.
- Equipped with easy-to-move/install caster.
- 8 models provided according to temperature range, capacity, etc.
- 5-steps pump speed adjustment with simple operation.
- Top-rated overheating protection system.
(Registration KR 10-0397583)
- Over temperature limiting function.
- Prevention of mal-operation with controller lock function.
- Check and alert of temperature sensor abnormality.
- If an error occurs during operation, the details of the error are displayed on the screen and an alarm is sounded.
- Safe structure in which the heater, sensor, and pump inside the bath are separated by covering plates.
Use Convenience Features
- Temperature calibration of up to 3 points provides more reliable temperature control.
- Optimized control with auto-tuning.
- Save and use 3 frequently used temperatures.
- Wait On/Off timer. (up to 999 hours 59 minutes)
- Microprocessor PID method for precise temperature control.
- USB/RS-232 connection and software provide convenient computer operation and data management.
- Notification of low solution. (low level limiter)
- Automatic restart of operation when power is restored after power failure.
- Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system)
(when purchased LC GreenBox)
