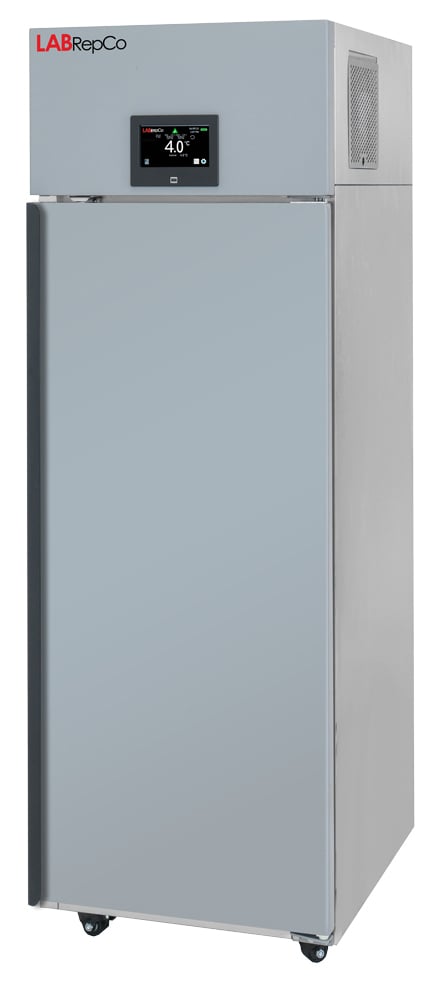

LabRepCo 22 cu. ft. High-Performance Laboratory Refrigerator | Solid Door
Item#: LM-22-SDDesigned for laboratory, pharmacy, clinical, and healthcare environments, the LabRepCo brand 22 cu. ft. High-Performance Laboratory Refrigerator delivers tight temperature control, fast recovery, and energy-efficient operation in a space-optimized footprint. With a solid door and advanced variable-speed refrigeration, this unit supports reliable medication and vaccine storage while maintaining excellent visibility and compliance.
$8,758.00 $6,743.66
- Storage Volume: 22 cu ft
- Exterior (w x d x h inches): 26.75 x 33.4375 x 79.09
- Interior (w x d x h inches): 23.25 x 26.4687 x 57.875
- Temperature Range: 2-8°C
- Set-Point: +5°C
- Net Weight (lbs): 390
- Shipping Weight (lbs) 447
- Electrical Power: 115V
- Maximum Current: 5.83
- Facility Supply Rating: Branch circuit with earth ground, compliant with plug ratings and local electrical codes. 110-120V AC: 15 A (minimum)
- Power Plug/Power Cord Length: NEMA 5-15P, Hospital Grade/9.5 ft
- Certifications: ETL
- Refrigerant: R290
- Application Environment: Non-hazardous
- Ambient Temperature & R.H.: 80°F / 27°C / 55% R.H.
- Uniformity | °C: (+/-) 1.0
- Recovery to 5°C after 1 min door opening | min 9
- Stability | °C 0.70
- Energy consumption | kWh/day 2.49
- Noise emission | dB 47
- Pull-down time to 5°C | min 19
- Peak Variation from Set Point + 0.27 / -1.12
- Warranty: 7 years compressor, 3 years parts & labor
- Refrigeration System: Forced-air, Monoblock Condensing Unit
- Compressor: Variable Speed, 2,000 to 4,500 RPM
- Condenser Type: Finned Condenser
- Expansion Device: TXV Valve for dynamic refrigerant modulation
- Evaporator Type: Electrostatic Coated Finned Evaporator
- Defrost Method: Automatic
- Insulation: CFC-free Eco Polyurethane Insulation
- Exterior Finish: Powder Coated Steel Door & Motor Cover 304 Stainless Steel Ends
- Interior Finish: White Aluminum Walls, 304 Stainless Steel Floor
- Casters: 3" | 2 Locking, 2 Non-locking
- Doors: (1) Solid (glass door model available)
- Access Port: 2 3/8” Diameter
- Shelves: (9) Standard
- LED Lights: 120 second time out, adjustable
- Clearance Requirements: Minimum of 8” above top and 3” behind back and along sides of unit for proper ventilation
Optional Features & Accessories:
- Integrated access control
- Stainless steel interior
- Chart recorder
- Remote alarms
- Floor and wall bracket kit
- Floor anchoring kit
- Storage trays
- Tray dividers
- Wire shelves
- USB drive for downloading
- Left-hinge door
- Certificate of calibration
- Temperature validation
- Validation guide (IQ/OQ)
- Extended warranty
