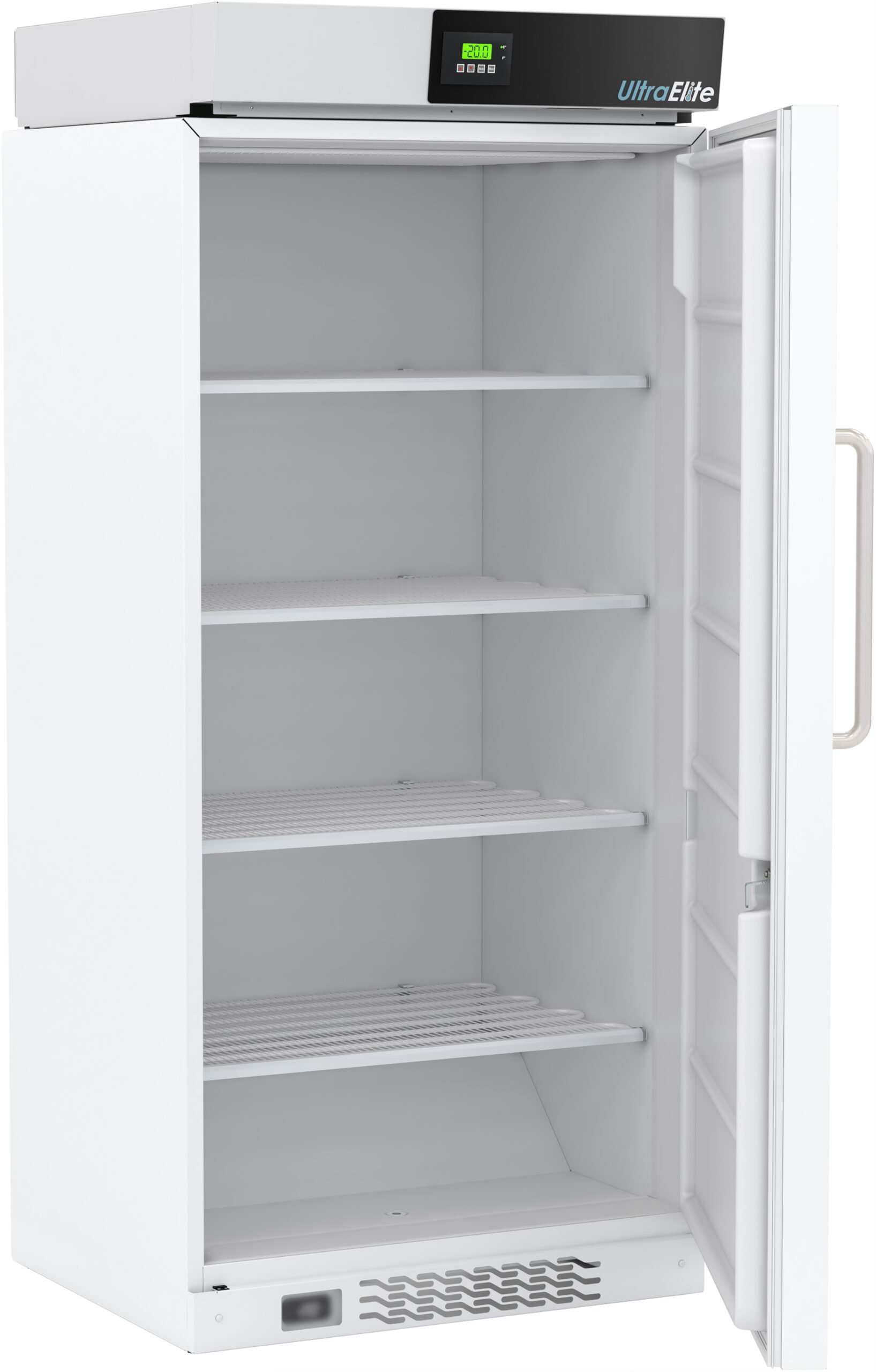

LabRepCo Ultra Elite 30 cu. ft. Flammable Material Storage Freezer (-20°C) with Natural Refrigerants | Manual Defrost
Item#: LHCE-30-FFThe LabRepCo Ultra Elite 30 Cu. Ft. Flammable Material Storage Freezer is engineered for the controlled storage of volatile materials in compliance driven laboratory environments. Designed to align with NFPA and OSHA guidelines 45 and 70, this manual defrost model maintains temperatures between -15°C and -25°C using a variable speed hermetic compressor and precision microprocessor control. A 0.1°C resolution digital display with simulated product temperature, remote alarm contacts, and multi layer audible and visual alarm protection help safeguard valuable contents. Utilizing EPA SNAP compliant R290 refrigerant and optimized for energy conscious operation, this freezer delivers dependable performance while supporting safe flammable material storage.
$12,970.00 $9,986.90
- Cu. Ft.: 30
- Door(s): One solid swing, right hinged; stainless steel door handle; magnetic door gasket
- Exterior Dimensions: 35.75" W x 35.5" D x 79" H (Door swing 30.5", Total open Depth 66")
- Interior Dimensions: 32" W x 22.5" D x 61.75" H
- Shelves: Four (4) fixed evaporator shelves
- Mounting & Installation: Leveling Legs
- External probe access: 3/4" probe access port on rear wall
- Insulation: EPA compliant high density urethane foam
- Exterior Materials: Powder coated steel
- Access Control: Keyed door lock
- General Warranty: Two (2) year parts and labor warranty
- Compressor Warranty: Five (5) year compressor parts warranty
- Product Weight (lbs): 300
- Shipping Weight (lbs): 330
- Rated Amperage: 3.3 Amps
- Power Plug/Power Cord: NEMA 5-15P plug, 6 ft long cord
- Facility Electrical Requirement: 110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
- Agency Listing and Certification: UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard, in compliance with the requirements for Flammable Materials Storage Refrigerators as defined by NFPA 99 and 45
- Uniformity (Cabinet air): +/- 3°C
- Stability (Cabinet air): +/- 3°C
- Maximum temperature variation (Cabinet air): 7°C Total
- Energy Consumption (KWh/day): 5.2 kWh/day
- Average Heat Rejection (BTU/hr): 740 BTU/hr
- Pull down time to nominal operating temp: 65 min (empty)
- Compressor: Hermetic, variable speed
- Refrigerant: EPA SNAP compliant R290 propane
- Condenser: Static - exterior walls of cabinet with auxiliary fan
- Evaporator: Evaporator shelves
- Defrost: Manual Defrost
- Controller technology: Microprocessor temperature controller with variable frequency compressor control
- Battery Backup: Temperature display & alarm only (no active cooling)
- Display Technology: Digital temperature display, sample simulated digital temperature display; .1° resolution
- Adjustable Temperature Range: -15° C to -25° C
- External alarm connection: Remote alarm contacts
- Alarms: Audible and visual high and low temperature alarms, remote alarm contacts, Sensor error alarm, power failure alarm, resettable 1-point min/max history,alarm validation (audible, visual, and remote alarm), alarm mute with ring back
- Display Probe: Product simulator bottle with glass bead media
- Disclaimers:
- Defrosting of the unit will need to be performed periodically to prevent severe ice build-up.
- Indoor use only, +18° C to +26° C (+65° F to +78° F), <70% RH
- Specifications are subject to change.
- Equipment requires 4” of clearance around back and sides of the unit for proper ventilation – improper installation will void the warranty and will lead
to temperature maintenance issues, overheating and possible failure. - Performance claims are based on testing at 22°C ambient using unbuffered air temperatures in an empty freezer at steady state operation.
- Performance may vary with environmental conditions, product load, or door openings.
