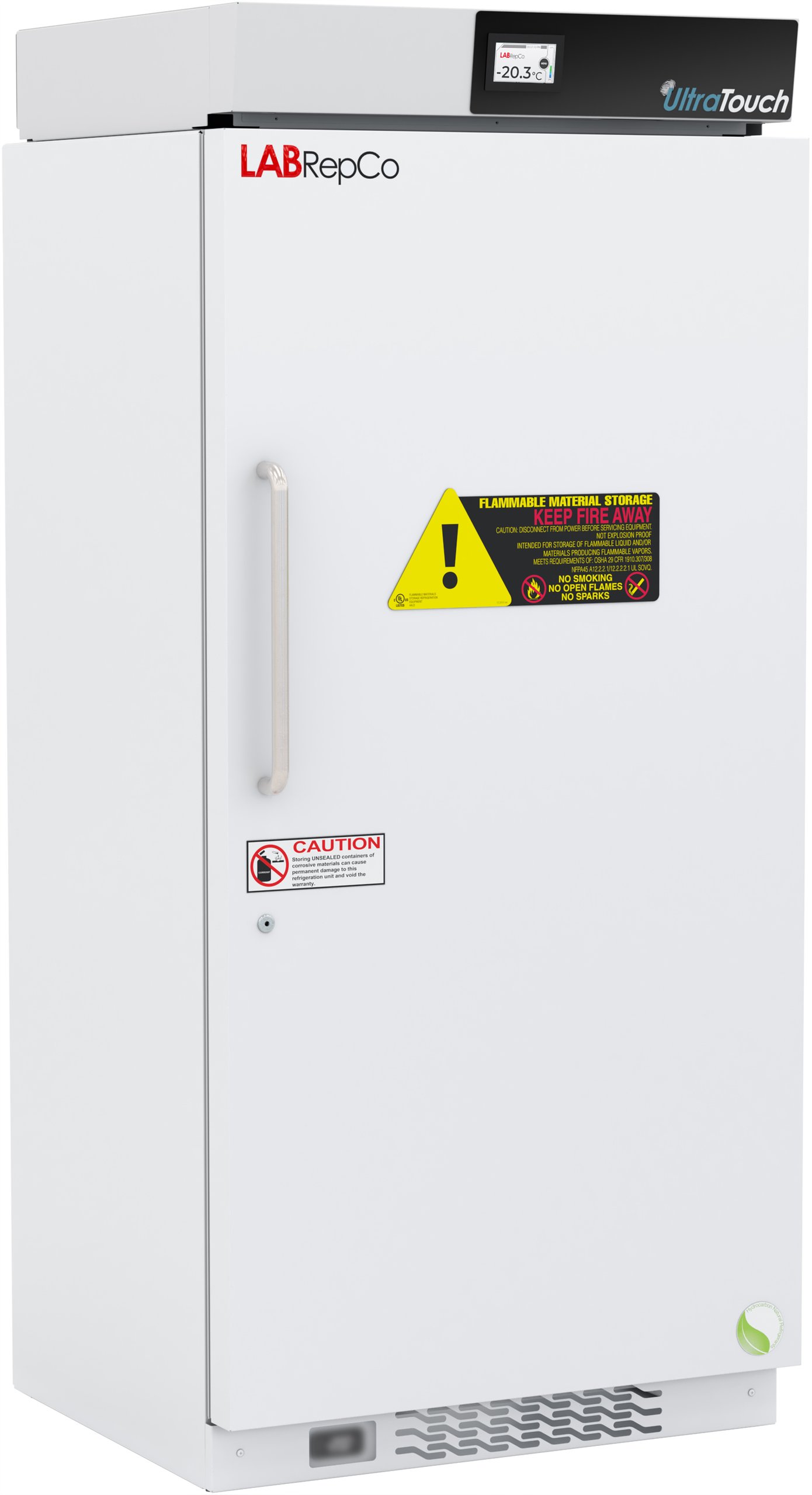

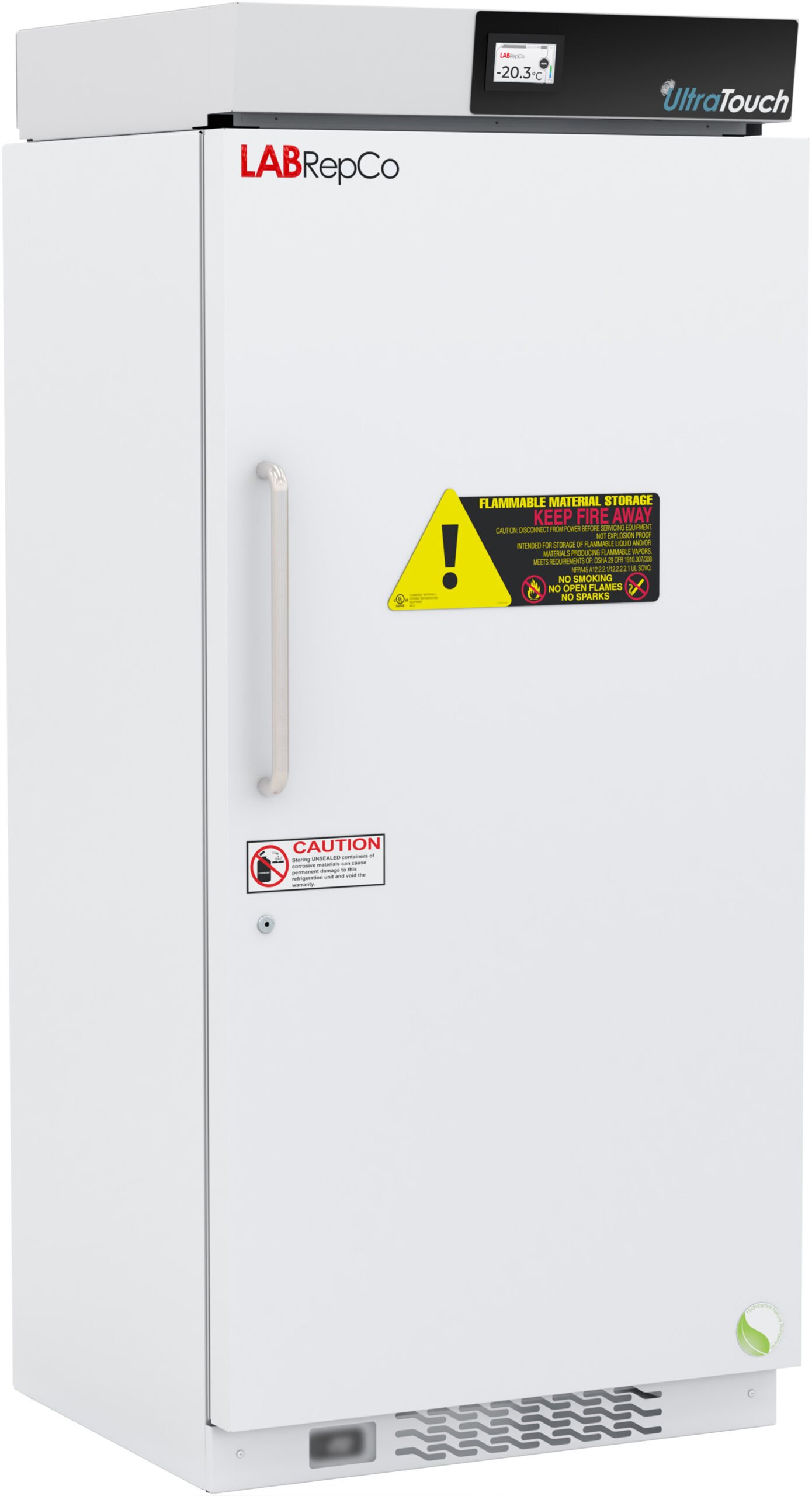

LabRepCo Ultra Touch 30 cu. ft. Flammable Storage Freezer (-20°C) with Natural Refrigerants | Manual Defrost

Name: LabRepCo Ultra Touch 30 cu. ft. Flammable Storage Freezer (-20°C) with Natural Refrigerants | Manual Defrost
Brand: LabRepCo
SKU: LHCT-30-FF
Availability: InStock

Item#: LHCT-30-FF

The LabRepCo Ultra Touch 30 Cu. Ft. Flammable Storage Freezer is engineered for the safe storage of volatile materials while delivering precise temperature control down to -25°C. Designed to meet NFPA and OSHA guidelines 45 and 70, this manual defrost unit combines microprocessor driven performance with a variable speed compressor and EPA SNAP compliant R290 refrigerant for efficient, eco friendly operation. The intuitive touchscreen interface provides real time monitoring, a digital 24 hour temperature chart, downloadable data logging, and customizable audible and visual alarms supported by battery backup and remote alarm contacts. With exceptional temperature uniformity and comprehensive compliance features, this freezer offers a dependable solution for laboratories requiring secure flammable storage and detailed performance documentation.

~~$15,430.00~~ $11,881.10

Request a Quote

Supplier: LabRepCo Refrigeration

Tags: Cold Storage Products, Flammable Material Storage Refrigerators and Freezers, Manual Defrost Freezers

Cu. Ft.: 30
Door(s): One solid swing, right hinged; stainless steel door handle; magnetic door gasket
Exterior Dimensions: 35.75" W x 35.5" D x 79" H (Door swing 30.5", Total open Depth 66")
Interior Dimensions: 32" W x 22.5" D x 61.75" H

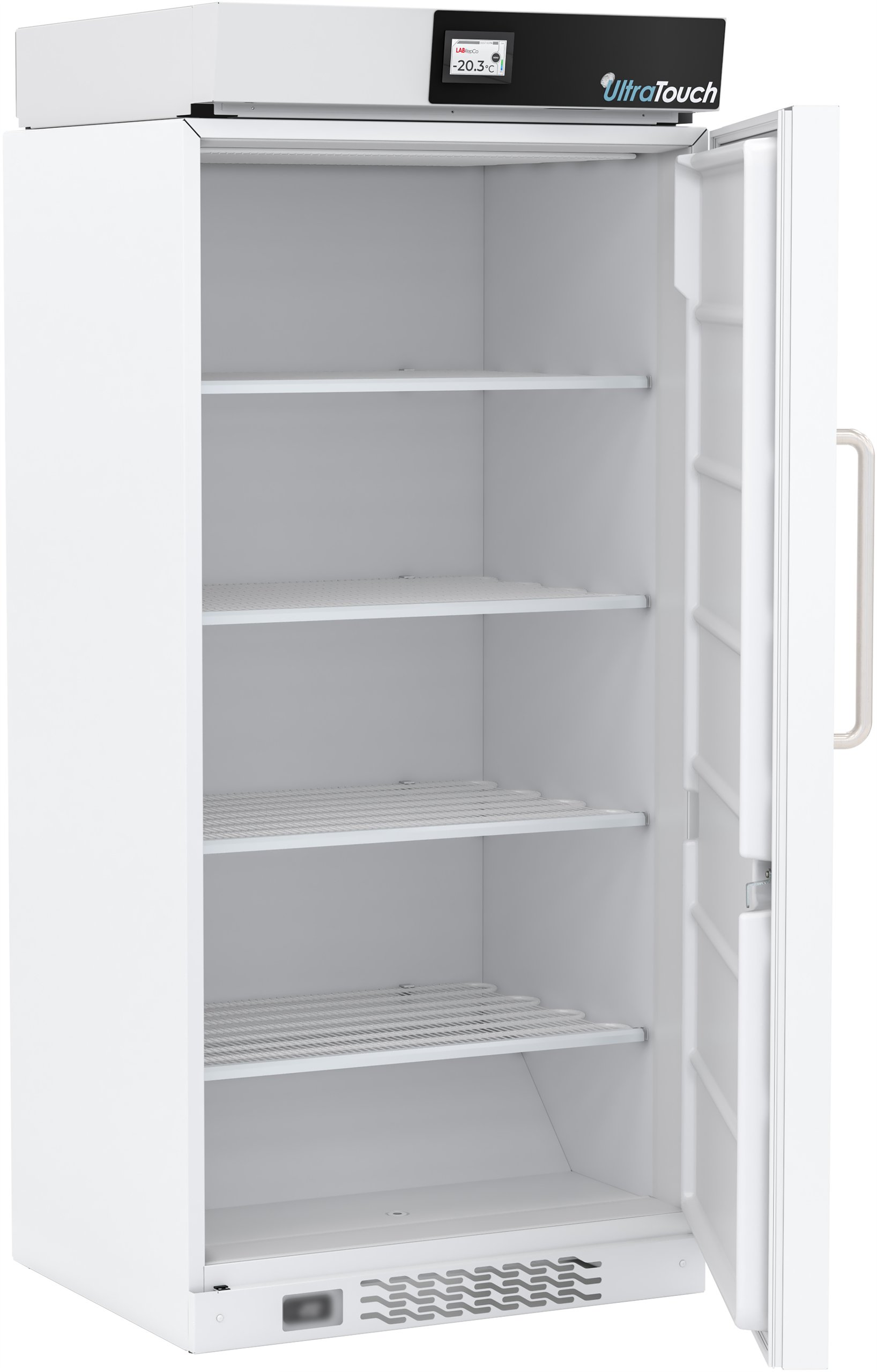

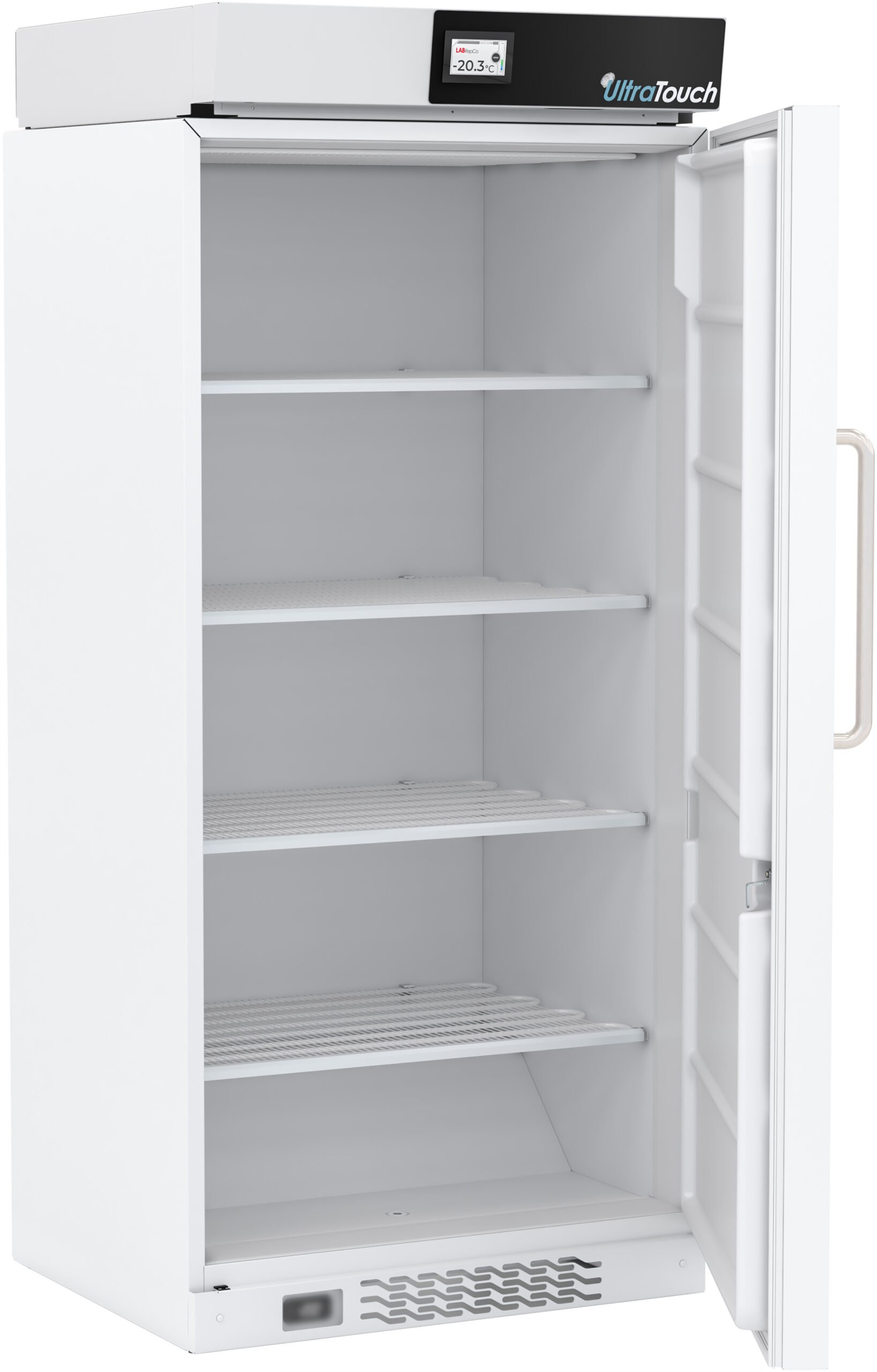

Shelves: Four (4) fixed evaporator shelves
Mounting & Installation: Leveling Legs
External probe access: 3/4" probe access port on rear wall
Insulation: EPA compliant high density urethane foam
Exterior Materials: Powder coated steel
Access Control: Keyed door lock
General Warranty: Two (2) year parts and labor warranty
Compressor Warranty: Five (5) year compressor parts warranty
Product Weight (lbs): 300
Shipping Weight (lbs): 330
Rated Amperage: 3.3 Amps
Power Plug/Power Cord: NEMA 5-15P plug, 6 ft long cord
Facility Electrical Requirement: 110 - 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification: UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard, in compliance with the requirements for Flammable Materials Storage Refrigerators as defined by NFPA 99 and 45
Uniformity (Cabinet air): +/- 2.5°C
Stability (Cabinet air): +/- 3.5°C
Maximum temperature variation (Cabinet air): 7.5°C Total
Energy Consumption (KWh/day): 7.7 kWh/day
Average Heat Rejection (BTU/hr): 1100 BTU/hr
Pull down time to nominal operating temp: 120 min (empty)

Compressor: Hermetic, variable speed
Refrigerant: EPA SNAP compliant R290 propane
Condenser: Static - exterior walls of cabinet with auxiliary fan
Evaporator: Evaporator shelves
Defrost: Manual Defrost
Controller technology: Microprocessor temperature controller with variable frequency compressor control
Battery Backup: Temperature display & alarm only (no active cooling)
Display Technology: Touch screen digital temperature display with user friendly interface, real-time operational display clock, active temperature scale bar display, resettable 1-point min/max history, digital 24- hour temperature chart, and temperature data logging
Adjustable Temperature Range: -15°C to -25°C
External alarm connection: Remote alarm contacts
Alarms: Audible and visual high and low temperature alarms, remote alarm contacts, sensor error alarm, power failure alarm, resettable 1-point min/max history, alarm validation (audible, visual, and remote alarm), alarm mute with ring back
Display Probe: Product simulator bottle with glass bead media
Disclaimers:
- Defrosting of the unit will need to be performed periodically to prevent severe ice build-up.
- Indoor use only, +18° C to +26° C (+65° F to +78° F), <70% RH
- Specifications are subject to change.
- Equipment requires 4” of clearance around back and sides of the unit for proper ventilation – improper installation will void the warranty and will lead
  to temperature maintenance issues, overheating and possible failure.
- Performance claims are based on testing at 22°C ambient using unbuffered air temperatures in an empty freezer at steady state operation.
- Performance may vary with environmental conditions, product load, or door openings.

LHCT-30-FF Datasheet

Download
