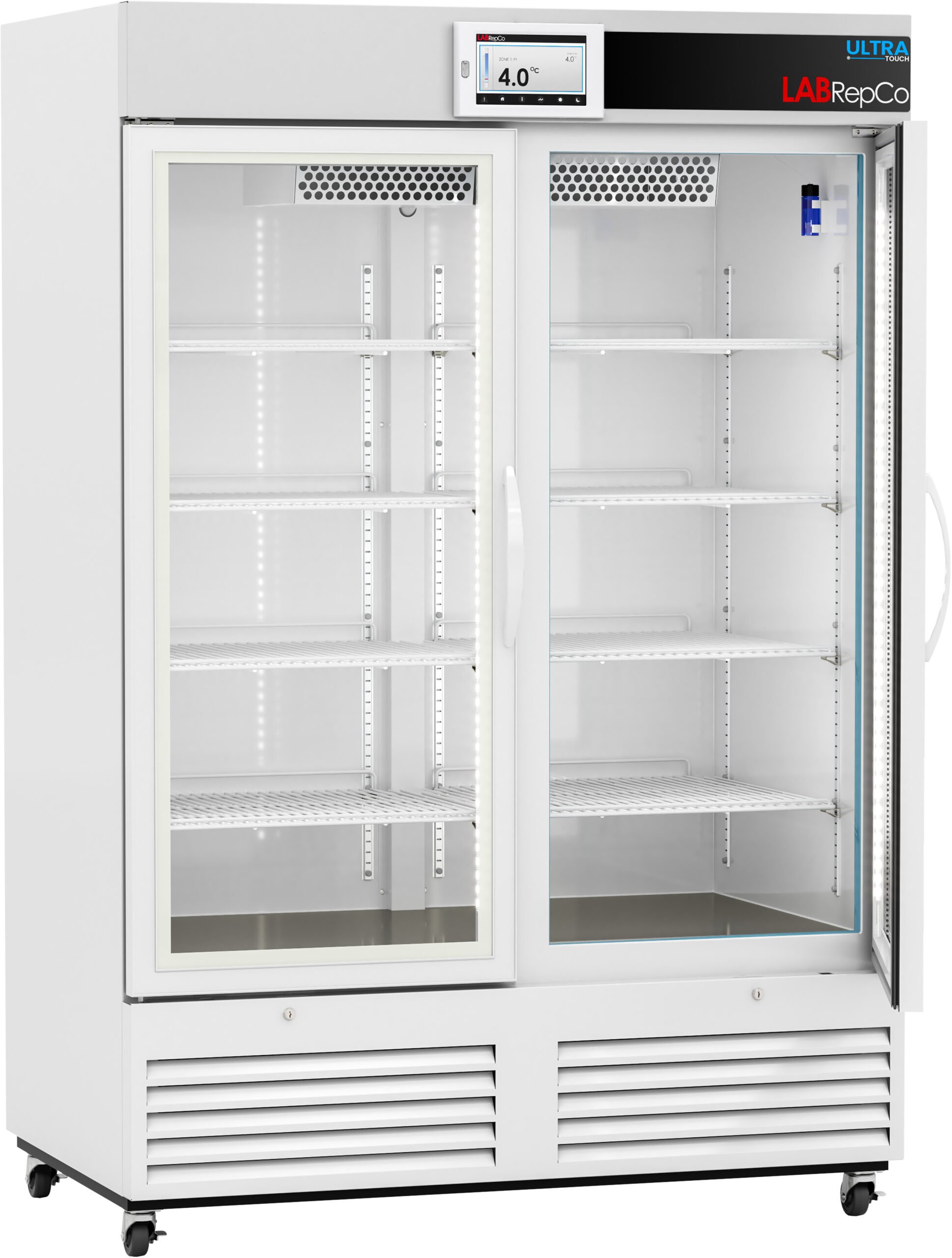

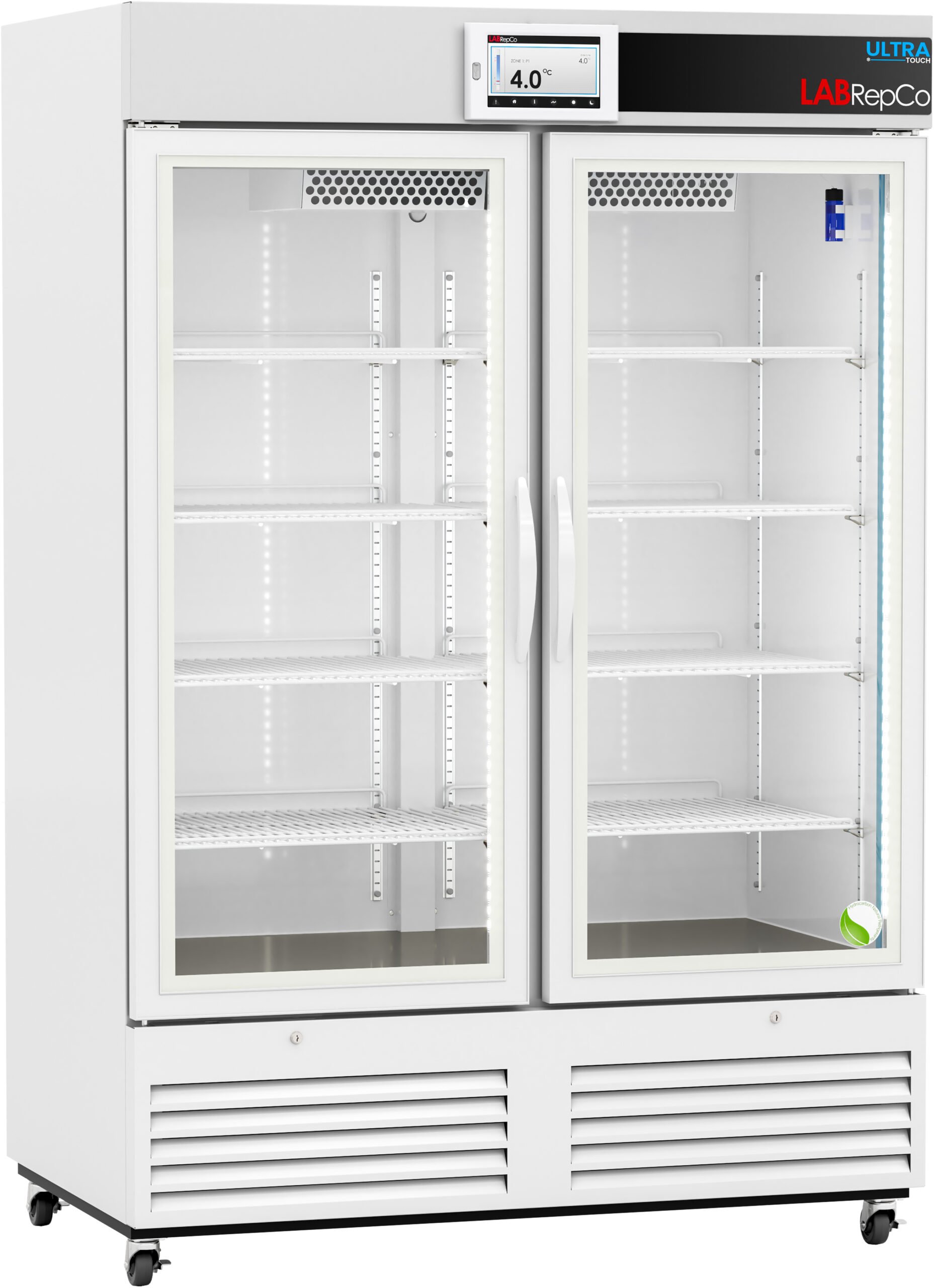

LabRepCo Ultra Touch Series 49 Cu. Ft. Laboratory Refrigerator | Glass Door
Item#: LHTV-49-HGThe LabRepCo Ultra Touch Series 49 Cu. Ft. Laboratory Refrigerator with glass doors delivers advanced monitoring and high-capacity cold storage for demanding laboratory environments. A variable speed compressor paired with a microprocessor temperature controller maintains stable temperatures between 2°C and 15°C while supporting ENERGY STAR v2.0 efficiency with environmentally responsible R600a refrigerant. The integrated 8-inch touchscreen interface provides intuitive control with multi-level user access, real time temperature visualization, and customizable alarm management. Forced draft air circulation with patented airflow technology promotes uniform cabinet conditions while dual self-closing glass doors allow quick sample visibility without unnecessary temperature fluctuations. The powder coated steel cabinet includes safety shielded LED lighting, adjustable shelving for flexible storage organization, and a keyed door lock for secure access. Audible and visual alarms with remote contacts and battery backed monitoring help safeguard valuable laboratory materials while the seven-year compressor warranty supports reliable long-term performance.
$12,212.00 $9,403.24
- Cu. Ft.: 49
- Door(s): Two (2) swing glass doors, self-closing, right hinged, not reversible, magnetic door gasket
- Exterior Dimensions: 54” W x 34.75” D x 81.75” H with casters
- Interior Dimensions: 49.25"W x 27.5"D x 48.75"H
- Shelves: Eight (8) adjustable shelves (adjustable in ½” increments)
- Mounting and Installation: Swivel casters - locking front casters
- Interior lighting: LED interior lights are safety shielded and switch controlled
- Airflow Management: Forced draft air circulation, patented air flow technology
- External probe access: 3/4" probe access port on rear wall
- Insulation: Cabinet is foamed-in-place with EPA compliant high-density urethane foam
- Exterior materials: White powder coated steel
- Access control: Keyed door lock; compatible with optional digital lock (Pyxis, Omnicell, and AcuDose RX)
- General warranty: Three (3) year parts and labor warranty
- Compressor warranty: Seven (7) year compressor warranty
- Product Weight (lbs): 462
- Shipping Weight (lbs): 545
- Rated Amperage: 3 Amps
- Power Plug/Power Cord: NEMA 5-15 plug
- Facility Electrical Requirement: 110-120V AC, 15A breaker, NEMA 5-15 receptacle
- Agency Listing and Certification: ETL, C-ETL listed. Meets or exceeds ENERGY STAR® v2.0 for Laboratory Refrigerators.
- Maximum temperature variation (Cabinet air): +/- 1° C
- Stability (Simulator ballast): +/- 0.2° C
- Adjustable Temperature Range: 2° C to 15° C
- Stability (Simulator bag): Non-applicable
- Energy Consumption (KWh/day): 2.5 KWh/day *meets ENERGY STAR® v2.0 for Laboratory Refrigerators
- Average Heat Rejection (BTU/hr): 630 BTU/h
- Noise Pressure Level (dBA): 40 dBA or less installed
- Pull down time to nominal operating temp: <40 min (empty)
Performance Note: Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
- ENERGY Star Certified
- Compressor: Hermetic, variable speed
- Refrigerant: EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
- Condenser: Tube and grid, high efficiency fan forced air
- Evaporator: Fin and tube, high efficiency fan forced air
- Defrost: Cycle Defrost
- Controller technology: Microprocessor temperature controller with variable frequency compressor control, C°/F° switchable, resolution is 0.1° C/0.2° F
- Battery Backup: High capacity 12V battery for controller temperature and alarm display and logging only, no cooling active
- Display Technology: 8" touchscreen featuring: Security and Access: Multi-Level Password Protection: User, Supervisor, and Admin roles for access and control. Advanced Controls: Customizable Passwords/PINs: Ensures tailored access for your team. Calibration adjustments: fine-tune temperature offsets for precise measurements. visual and user interface: intuitive touch screen: pinch-to-zoom, scrollable graphs, and customizable display options. Adjustable display settings: screen brightness, real-time temperature comparison to alarm points.
- Digital Communication: 4-20mA Output
- Data Transfer: Non-applicable
- External alarm connection: Remote alarm contacts
- Alarms: Audible & Visual Alarms: customizable sounds and volumes; silent mode with visual persistence. Alarm delays: Adjustable settings for door, temperature, and power loss alarms to prevent nuisance alerts. Ring-back functionality. Audible alarms re-engage after a preset delay if the condition persists.
- Display Probe: Product simulator bottle with glass bead media
Disclaimers: Refrigerator requires a minimum 2” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) - improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
