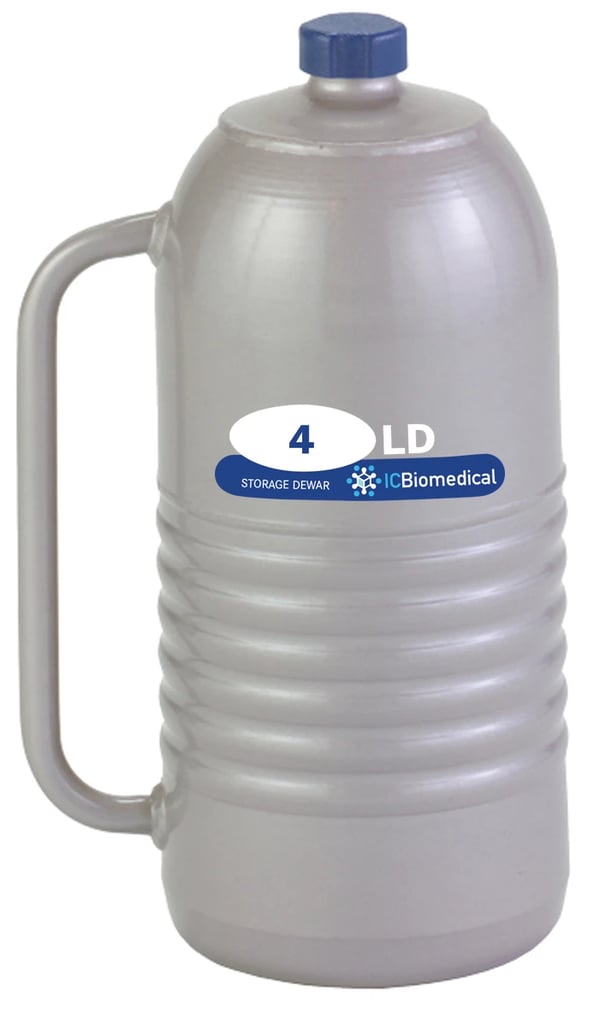

IC Biomedical LD4 Aluminum Cryogenic Dewar (Capacity: 4L)
Item#: 4LDBThe LD4 Aluminum Cryogenic LN2 dewar from IC Biomedical is designed for storing and dispensing up to 4L of liquid nitrogen capacity. The IC Biomedical (formerly Taylor Wharton) LD Series of cryogenic dewars are designed for laboratory research and clinical applications.
Due to part supply issues in the cryogenic industry, this product has an extended lead time. Please inquire for details.
$913.00 $776.05
- Static Holding Days(1): 10
- Evaporation Rate(1): 0.40
- Liquid Nitrogen Capacity: 4 liters
- Weight Empty: 6.6 lbs. / 3.0 kg
- Weight Full: 13.7" / 6.2 kg.
- Neck Diameter: 1.2" / 30mm
- Overall Height: 17.0" / 432mm
- Overall Diameter: 7.6" / 193mm
*Not suitable for the use of the liquid withdrawal device.
(1) Evaporation rate and static holding time are nominal. Actual rate may be affected by the nature of the contents, atmospheric conditions, container history, and manufacturing tolerances.
- High performance modern construction and advanced insulation materials assure high thermal efficiency
- New rugged construction, ribbed high strength aluminum body, magniformed necktube design, and more durable paint system
- Easy operation lightweight snap-on cap and necktube assures tight closure and easy access, convenient larger handles
- Superior vacuum performance with super insulation provides maximum holding times
-
Warranty: 5 year vacuum
-
Transfer Hose for IC Biomedical LN2 Systems- 6′ – CGA 295 x CGA 295
Item #: 1600-9C68$529.00$449.65 -
Transfer Hose for IC Biomedical LN2 Systems- 6′ – CGA 295 to 3/8″ NPT
Item #: 1600-9C66$451.00$383.35 -
Transfer Hose for IC Biomedical LN2 Systems- 4′ – CGA 295 to 3/8″ NPT
Item #: 1700-9C65$405.00$344.25 -

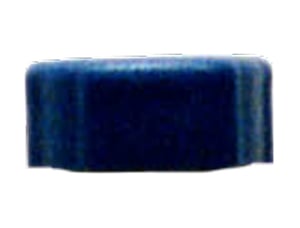

IC Biomedical Cap for LD4 Series Dewar
Item #: D004-9C11$27.00$22.95 -
Model 82 Phase Separator for IC Biomedical LN2 Systems (1 1/4″ x 1″ OD, 3/8″ FNPT)
Item #: 1193-8C82$60.00$51.00 -
LN2 Dipper for IC Biomedical Liquid Nitrogen Systems
Item #: R018-8C50$156.00$132.60 -
IC Biomedical Model 83 Phase Separator (1 1/4″ x 1/2″ OD, 1/8″FNPT)
Item #: 1193-8C83$64.00$54.40 -
Model 80 Phase Separator for IC Biomedical LN2 Systems (2 3/4″ x 1 3/8″ FNPT)
Item #: 1193-8C80$107.00$90.95
