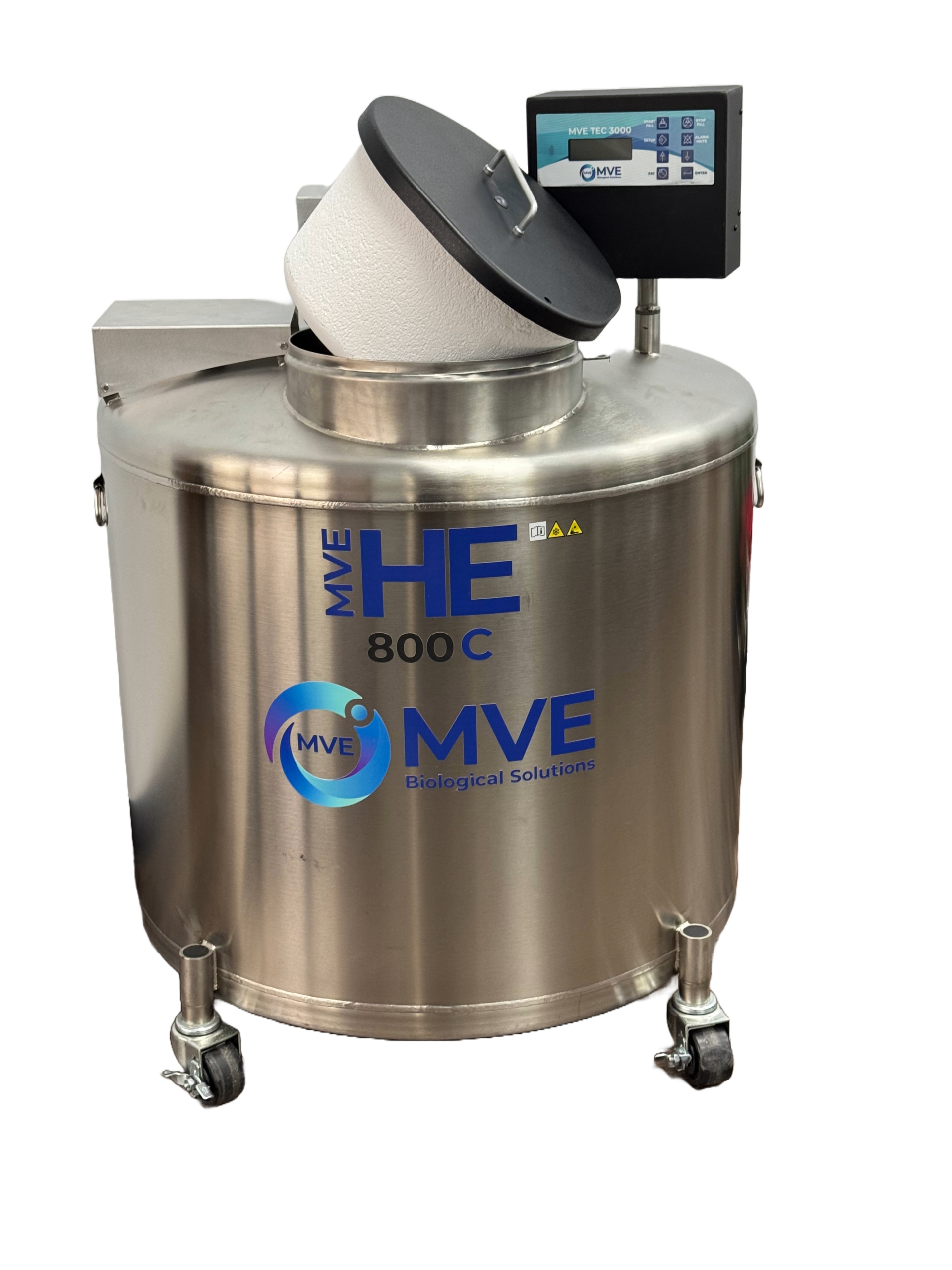

MVE HE 800 C Compact LN2 Freezer (Capacity: 5,680 x 2.0 ml vials)

MVE HE 800 C Compact LN2 Freezer (Capacity: 5,680 x 2.0 ml vials) - Image 2

MVE HE 800 C Compact LN2 Freezer (Capacity: 5,680 x 2.0 ml vials) - Image 3

MVE HE 800 C Compact LN2 Freezer (Capacity: 5,680 x 2.0 ml vials)

Item#: HE800C

The MVE HE 800 C from MVE Biological Solutions is a compact, high performance cryogenic storage system designed to optimize space, efficiency, and sample management in laboratories and clinical environments.

Where the MVE HE 800 C Excels:

IVF Facilities
Clinical Laboratories
Research Laboratories
Biopharma Applications
Backup or Quarantine LN2 Freezer

Request a Quote

Supplier: MVE

Static NER: 5 L / Day
LN2 Capacity Liquid Full: 205 L
LN2 Capacity Vapor Storage: 62 L
Static Hold Time - Vapor: 11 Days
Static Hold Time - Liquid Full: 40 Days

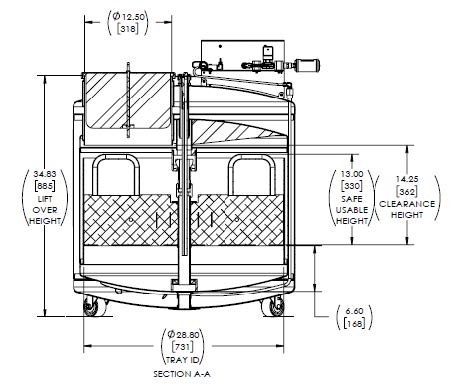

Neck Opening: 12 1/2”
Usable Internal Height: 13”
Inner Diameter: 28 13/16”
Overall Height: 44 9/16”
Liftover Height: 34 13/16”
Outside Diameter: 32”
Internal Diameter (Tray): 28 13/16
Weight Empty: 330 lbs [145 kgs]
Weight Liquid Full: 695 lbs [310 kgs]
Weight Vapor Storage: 440 lbs [195 Kgs]

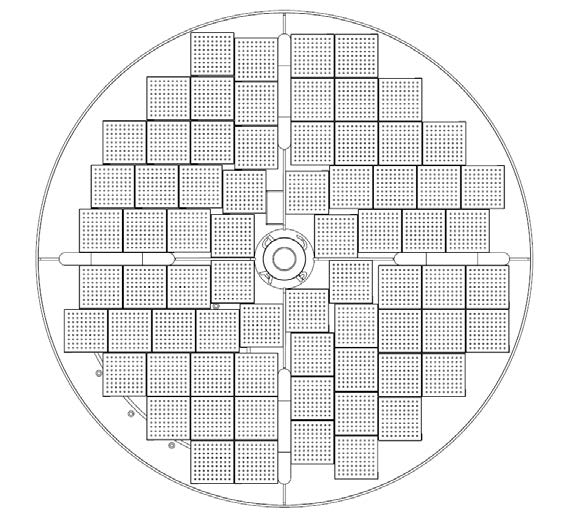

Working Capacity:
- SUC-1 Canisters: 71
- 1.0ml Vials: 9,798
- 1.2ml Vials: 10,224
- 2.0ml Vials: 5,680
- 1/2cc Straws: 22,010

Sleek, Modern Design: Compact design and footprint make it suitable for labs with space constraints.
Enhanced Ergonomics: Lower lift-over height for improved accessibility and reduced physical strain.
Streamlined Inventory Management: Compatibility with SUC-1 systems ensures faster and more organized sample retrieval.
Performance: Consistent performance maintaining cryogenic temperatures with superior thermal stability for reliable sample preservation.
Space-Saving: Compact design ideal for constrained environments.
Operational Capacity: 7 XC 47/11 = 1 HE 800 C
LN2 Efficiency: Consumes less LN2 than a wide-neck dewar or open-top freezer
Enhanced Ergonomics: Reduced physical strain by eliminating reaching under shelfs or cabinets, virtually eliminating the need to bend over to lift cannisters. Retrive samples at counter-top height.
Reliable Preservation: Maintains premium thermal stability for sample integrity.
Energy-Efficient: Lower operation costs without compromising performance with controlled automated filling.
