Ohaus Frontier™ High Speed Micro Centrifuge FC5515R | 21,953g | 120V
Item#: 83042058The OHAUS Frontier™ 5515 and 5515R Benchtop Micro Centrifuges provide high-speed operation for a wide variety of tube volumes and capacities. With refrigeration capabilities (FC5515R), 10 acceleration/deceleration settings and multiple safety features, the FC5515 and FC5515R ensure stable liquid separation for applications requiring high-speed operation in molecular and cell biology, clinical, research and industrial applications.
$8,125.00 $6,906.25
- Speed Range: 200 rpm – 15200 rpm (10 rpm / increments)
- Maximum Relative Centrifuge Force (x g): 21,953 g (10 rpm / increments)
- Maximum Capacity (rotor): 44 x 1.5 / 2.0ml; 12 x 5 ml
- Refrigeration Range: -20 °C to 40 °C (1 °C/increments)
- Ambient temperature: 5 °C up to 35 °C
- Max. relative humidity: Max. relative humidity 80 % for temperatures up to 31 °C/Decreasing linearly to 50 % relative humidity up to 35 °C.
- Refrigerant: R290 (Propane)
- Running Time: Quick Spin, 10 sec to 99 hr 59 min, or continuous
- Noise Level: ≤57±2 dB(A)
- Acc/Dec Levels: 10/10
- Allowable Density at Maximum Speed: 1.2 g/ml
- Allowable Kinetic Energy: 7204 Nm
- AC Power: 120 V/50-60 Hz
- Voltage Fluctuation: ± 10%
- Current Consumption: 5.1A
- Power Consumption: 560W
- Dimensions (WxDxH): 11.0 x 21.9 x 11.3 in (280 x 555 x 287 mm)
- Shipping Dimensions (WxDxH): 15.4 x 27.2 x 15.4 in (390 x 690 x 390 mm)
- Net Weight (without rotor): 77 lb/35 kg
- Shipping Weight (without rotor): 97 lb/44 kg
- For indoor use only
- Use up to an altitude of 2000 m
*Not suitable for use in hazardous environments.
-
Excellent functionality when used with rotors compatible with high throughput and BIOSEALS options for 1.5/2.0 ml or 5 ml microtubes, spin columns, and cryo tubes. Additionally, when equipped with the appropriate rotor options, these centrifuges can also be used in diagnostic settings for hematocrit capillaries and PCR tubes/strips.
-

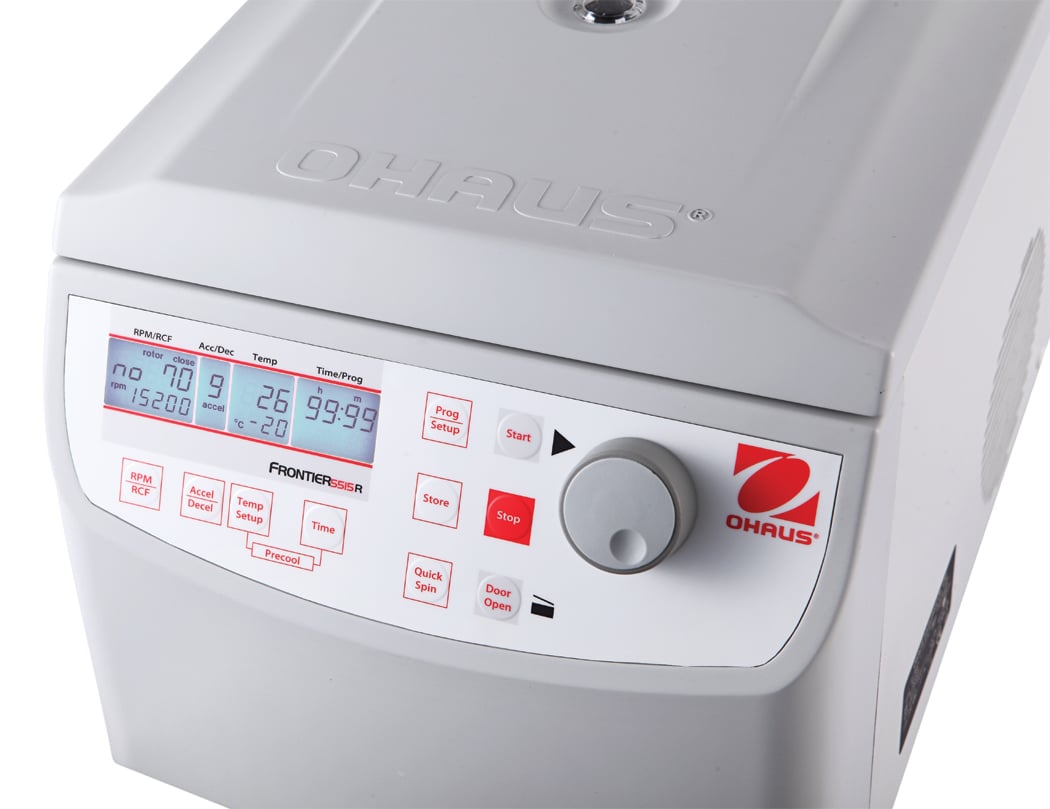

Designed for ease of operation, Frontier Micro centrifuges feature convenient control on an intuitive interface, which allows for responsive operation – even when wearing gloves.
-
Enclosing all their functionalities within a small footprint, Frontier Micro centrifuges save valuable space on the lab bench.
- Easy-to-turn rotary knob for parameter adjustments
- Waterproof keypad provides protection that helps significantly increase the lifespan of the product
- One-touch toggling between speed, G-force, and temperature controls (R model only)
- LCD display with light blue backlight which projects information in real time
- View and adjust user parameters from the main screen; no need to navigate through sub-screens
- Powerful induction motor reaches speeds up to 15200 RPM in less than 16 seconds
- Maximum G-force of 21953 RCF
- 10 acceleration/deceleration settings
- 99 memory sets to quickly store and recall commonly used parameters
- FC5515R model has refrigeration capabilities from 40 °C to -20 °C
- Cools down from 23 °C to 4 °C in less than 10 minutes
- R290, an environmentally friendly coolant, contributes to the eco-friendliness of refrigerated centrifuges by minimizing their environmental impact and supporting efforts to combat global warming
- Pre-cool feature quickly lowers the temperature of rotor and chamber before a run
- Motorized lid-locking system prevents centrifuge from opening during operation
- Rotor imbalance sensing systems stops the unit when it detects an imbalanced load
- Sealed and TÜV certified rotors to safeguard operators from harmful aerosols

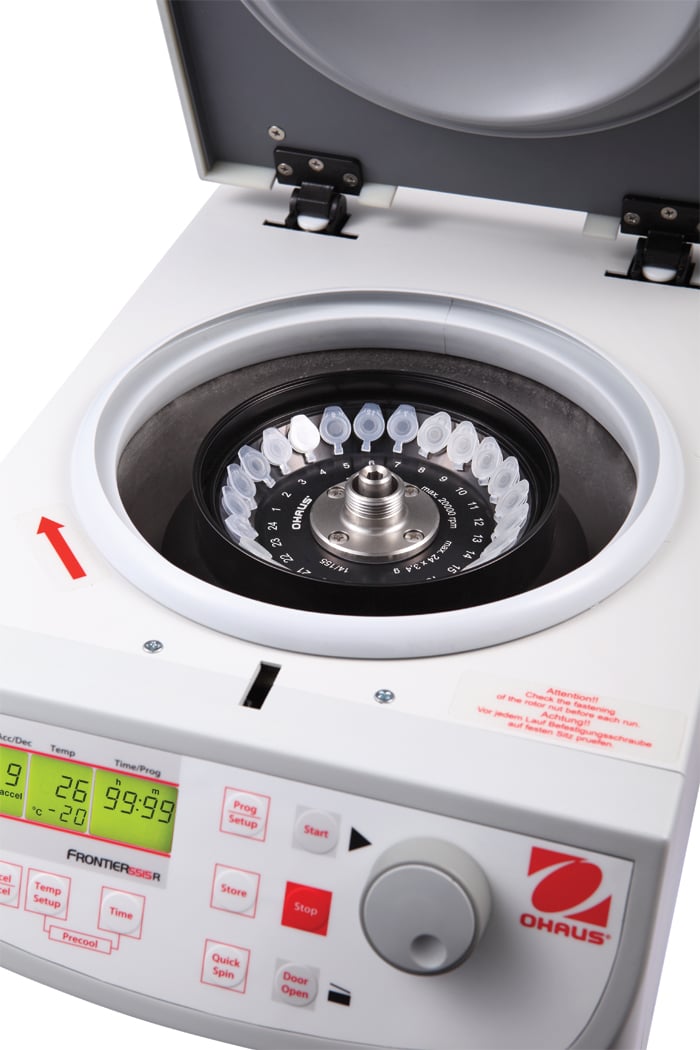

- Works with microtube rotors with different rotor capacity – 24 x 1.5/2.0 ml, 30 x 1.5/2.0 ml or 44 x 1.5/2.0 ml
- Compatible with 6 rotors (7 rotors on FC5515 model), including spin column rotor, hematocrit rotor, PCR Strips/tubes rotor and angle rotor for 5ml tubes
- An ergonomically designed rotors for microtubes, spin columns and PCR Stripes/tubes quickly and easily closes with 1/4 of a turn
