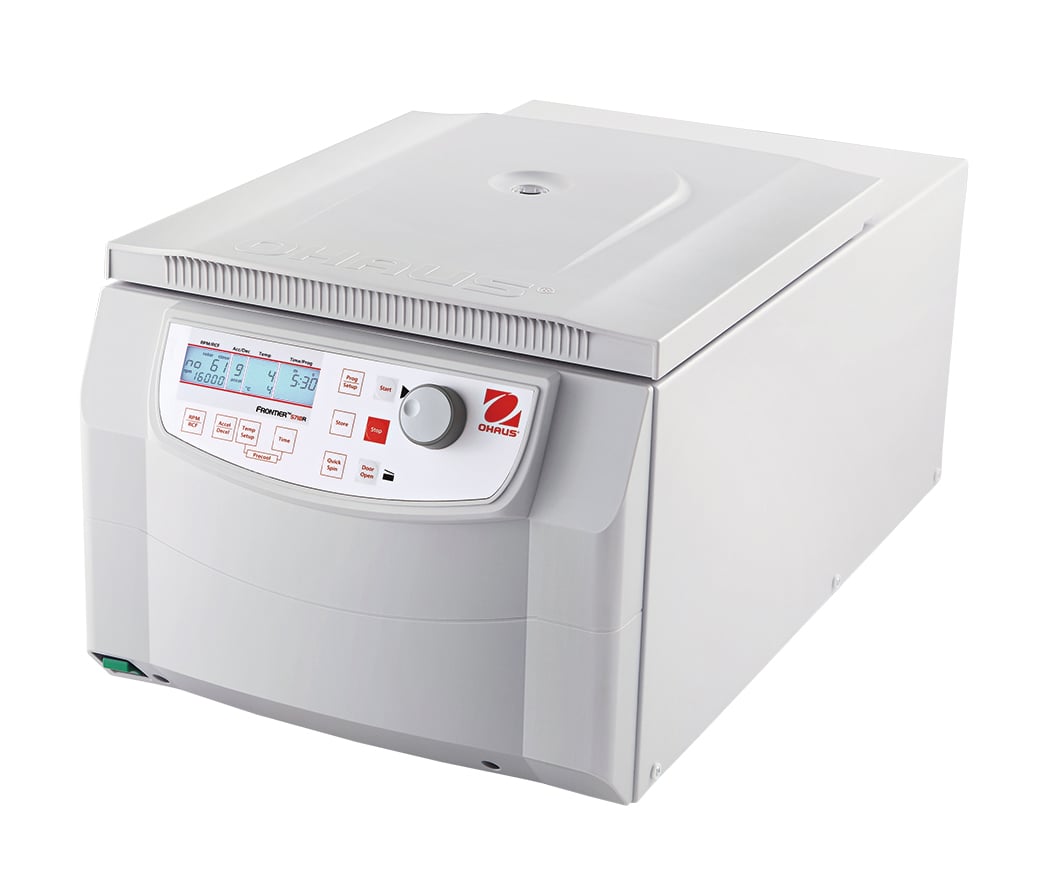

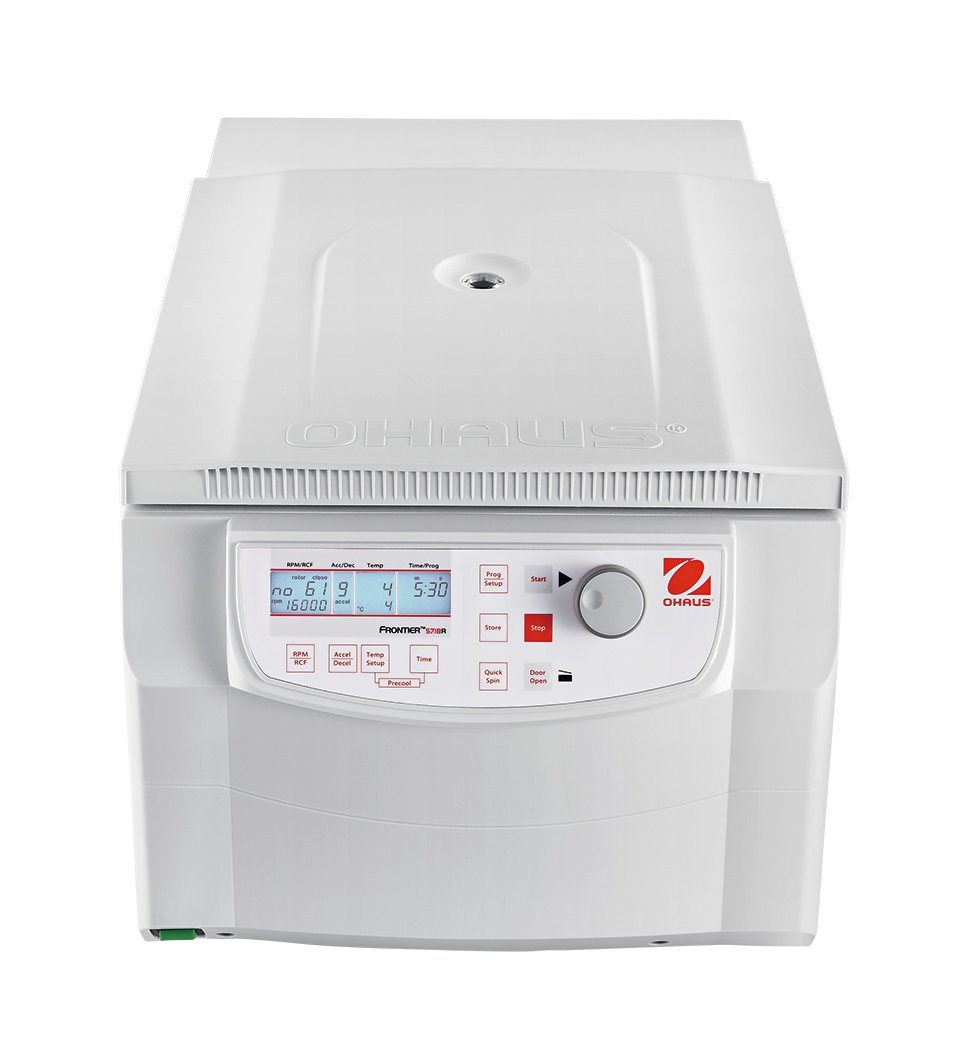

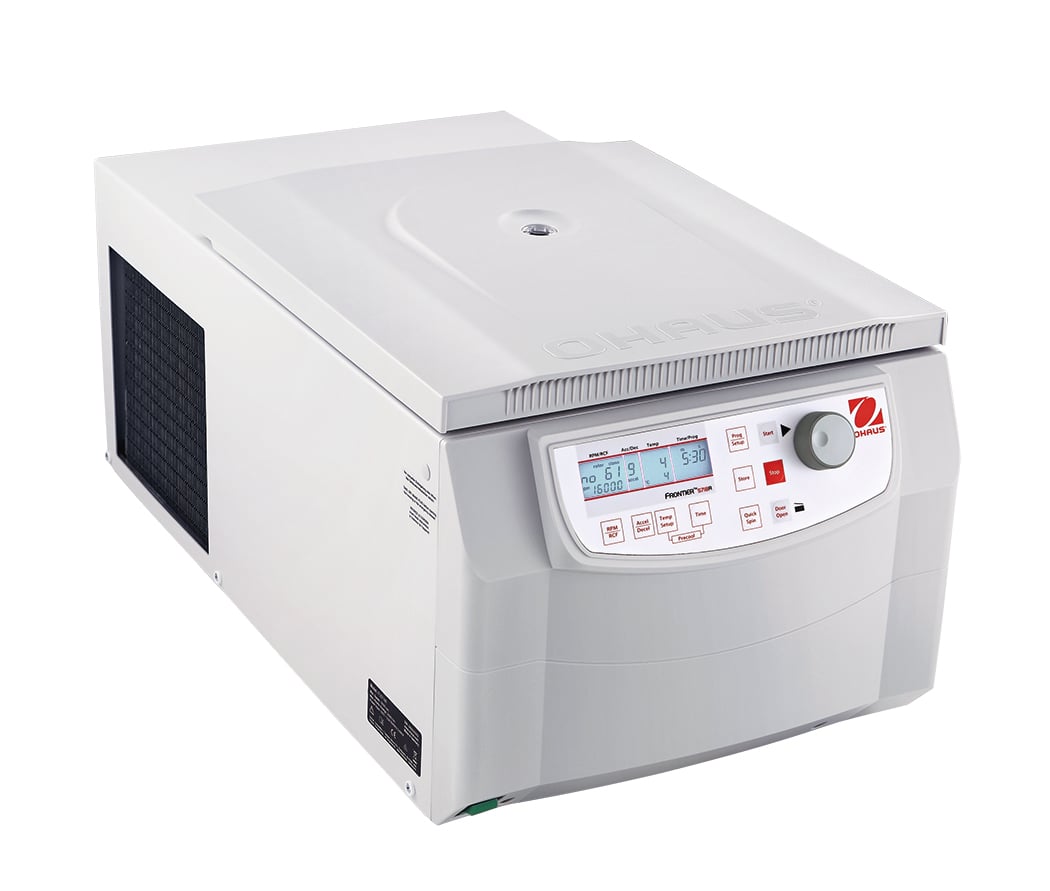

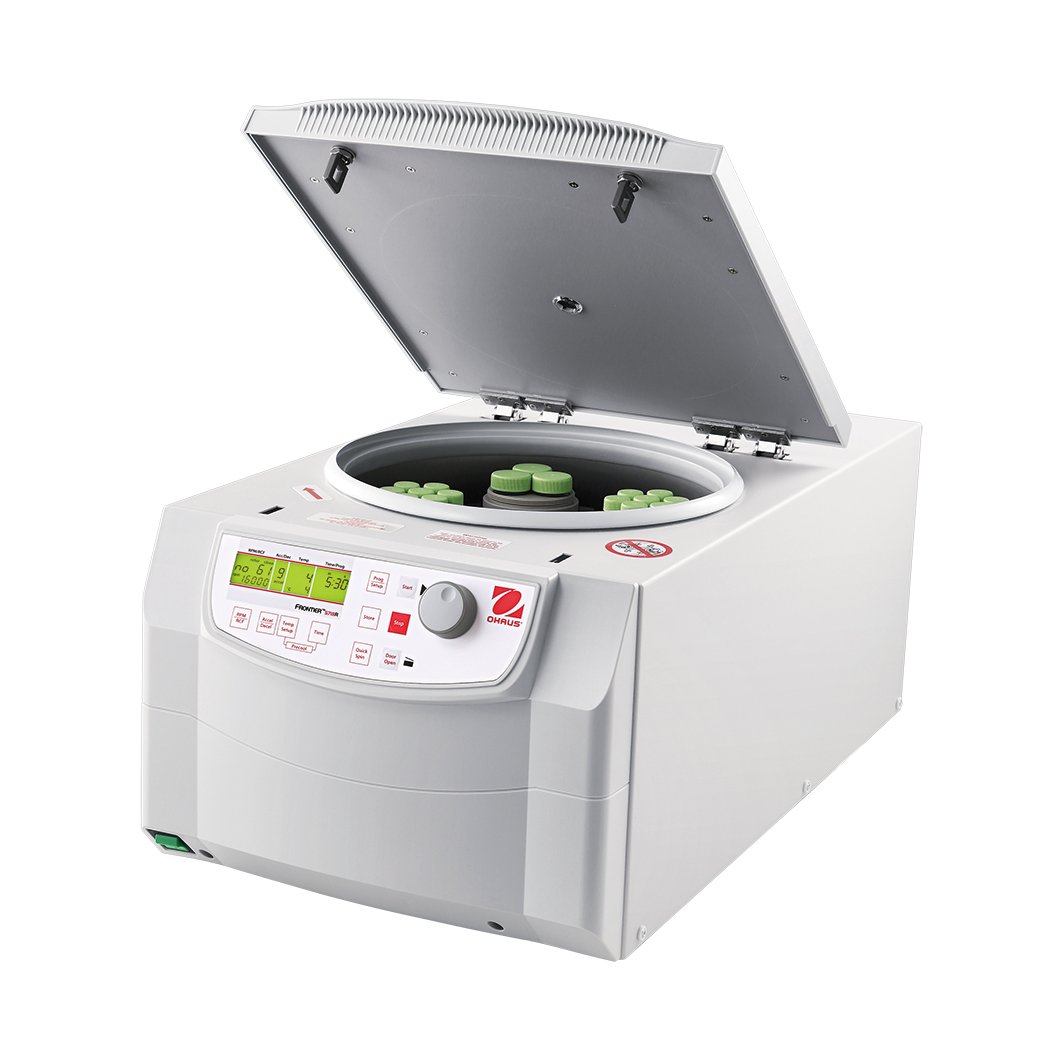

Ohaus Frontier™ Multi-Pro High Speed Centrifuge FC5718R | 23,542g | 120V
Item#: 83042046The Ohaus Frontier 5718 and 5718R are designed for multipurpose use in various applications within research, industrial, and clinical laboratories. It can be combined with our range of rotors and accessories for customized use. The FC5718 and FC5718R is able to spin containers from 0.2 ml to 4 × 200 ml with swing-out and fixed angle rotors. They feature highspeed performance at maximum volume, automatic rotor identification, and multiple safety features. Depending on the centrifuge model, they can process large quantities and different sizes of blood collection tubes, conical cell culture tubes, plates, and various volumes and types of bottles.
$9,916.00 $8,428.60
- Speed Range: 200 rpm – 18000 rpm (10 rpm / increments)
- Angle Rotor: 18000 rpm
- Swing out Rotor: 5000 rpm
- Maximum Relative Centrifuge Force (x g): 23,542 g (10 rpm / increments)
- Angle Rotor: 23542 x g
- Swing out Rotor: 4136 x g
- Maximum Capacity (rotor):
- Angle Rotor: 6 x 85 ml
- Swing out Rotor: 4 x 200 ml
- Temperature Range: -20 °C to 40 °C (1 °C/increments)
- Ambient temperature: 5 °C up to 35 °C
- Max. relative humidity: Max. relative humidity 80 % for temperatures up to 31 °C/Decreasing linearly to 50 % relative humidity up to 35 °C.
- Refrigerant: R290 (Propane)
- Running Time: Quick Spin, 10 sec to 99 hr 59 min, or continuous
- Noise Level: ≤60 + 2 dB(A)
- Acc/Dec Levels: 10/10
- Allowable Density at Maximum Speed: 1.2 g/ml
- Allowable Kinetic Energy: 25111 Nm
- AC Power: 120 V/50-60 Hz
- Voltage Fluctuation: ± 10%
- Current Consumption: 6.0A
- Power Consumption: 660W
- Dimensions (WxDxH): 15.7 x 28.7 x 14.2 in (400 x 730 x 360 mm)
- Shipping Dimensions (WxDxH): 25.2 x 32.3 x 18.5 in (640 x 820 x 470 mm)
- Net Weight (without rotor): 132 lb/60 kg
- Shipping Weight (without rotor): 170 lb/77 kg
- For indoor use only
- Use up to an altitude of 2000 m
*Not suitable for use in hazardous environments.
- Compatible with up to 19 optional rotors and 115 accessories
- Capacity of up to 4 x 200 ml with the ability to spin up to 32 blood tubes or 20 x 15 ml conical tubes and 10 x 50 ml conical tubes
- High-speed centrifugation (>10 000 rpm) from 0.2 ml up to 1.5/2.0 ml tubes
- FC5718R has refrigeration capabilities from 40 °C to -20 °C
- R290, an environmentally friendly coolant, contributes to the eco-friendliness of refrigerated centrifuges by minimizing their environmental impact and supporting efforts to combat global warming
- Pre-cool feature quickly lowers the temperature of rotor and chamber before a run
- Automatic rotor recognition (RFID) makes switching between applications extremely easy
- Simple one-hand operation enabled by the selection button / rotary knob combination – even when wearing gloves
- Large backlit LCD display shows centrifugation settings and real-time parameters on one interface
- Program storage up to 99 runs including parameter settings and rotor types
- Maintenance-free induction motor provides maximum G-force of 23542 × g
- Optimized airflow system to keep samples cool (FC5718)
- Chemical and corrosion-resistant stainless steel rotor chamber ensures durability in lab environments
- Self-diagnostic program to record usage and error history for easy maintenance and to minimize downtime
