MVE SC 3/3 Cryogenic Dewars (Capacity: 1,122 x 1/2cc Straws)
Item#: 9918009The MVE SC Series LN2 dewars are designed for the user who has small capacity needs, but requires long-term storage and low liquid nitrogen consumption in a convenient lightweight package.
$1,193.00 $1,014.05
Supplier: MVE
Tags: Cold Storage Products, Liquid Nitrogen Tanks- Capacity (Liters.): 3.6
- Empty Weight: 8 lbs. (3.6 kg)
- Full Weight: 14.4 lbs. (6.5 kg)
- Neck Diameter: 2.18" (55mm)
- Outer Diameter: 8.7" (222mm)
- Total Height: 16" (406mm)
- Static Evaporation Loss Rate (Liters/day): 0.13
- Static Holding Time (Days): 17
- Canister O.D.: 1.65" (41.9mm)
- Canister Height: 5" (127mm)
- No. of Canisters (No.): 6
- Straw Holding Capacity Single Level (0.5ml): 1122
- Straw Holding Capacity Double Level (0.5ml): n/a
- Warranty: 3 years vacuum
*Does Not Include Straws and Vials*
- Designed for large capacity storage
- Low liquid nitrogen consumption
- Convenient lightweight package
- Durable, tamper-proof lid design
- High strength neck tub reduces liquid nitrogen loss
- Strong light weight aluminum construction
- Advanced chemical vacuum retention system
- Spider design on platform for easy retrieval and insertion of product canisters
- Warranty: 2 year parts ; 3 year vacuum
-
Replaceable Neck Cork for MVE SC 11/7, SC 3/3, SC 8/5, DOBLE QWICK 10 / 660, & Doble 11 Series Liquid Nitrogen Systems (Dewar Neck Opening Diameter: 2.18″)
Item #: 13820534$135.00$114.75 -
Medium Aluminum Dewar Phase Separator for MVE LN2 Systems (1 5/16″ x 3″)
Item #: 10615877$120.00$102.00 -
Transfer Hose with Medium Sized Phase Separator for MVE LN2 Systems (use with discharge device)
Item #: 14044151$187.00$158.95 -
Transfer Hose for MVE LN2 Systems (6′ x 1/2″ Dia.)
Item #: 9713109$301.00$255.85 -
Phase Separator with Rigid Discharge Device Nozzle for MVE LN2 Systems
Item #: 11734421$205.00$174.25 -

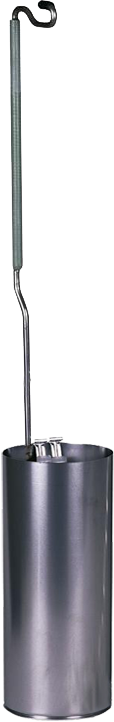

5″ Canister for MVE SC 3/3 Liquid Nitrogen System
