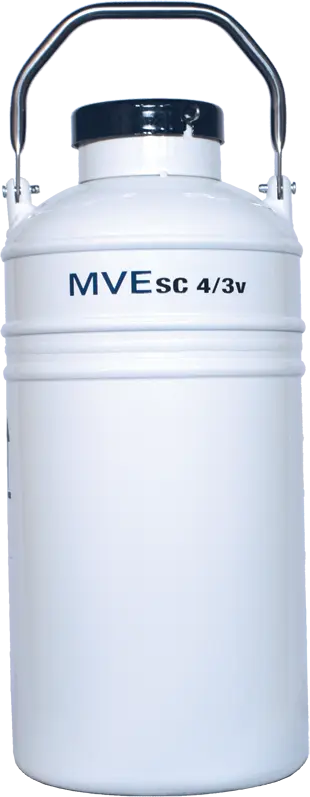

MVE SC 4/3V CryoShipper with QWick™ Technology and (1) 11″ Canisters (Capacity: 48 x 2.0 mL Vials)
Item#: 10817330MVE CryoShippers are designed for the safe transportation of biological samples at cryogenic (-150°C or colder) temperatures. MVE CryoShipper Series utilizes an advanced QWick Charge material that charges with liquid nitrogen in fewer than two hours, providing the capacity for same-day vapor shipping. Manufactured from durable, lightweight aluminum, both series employ a hydrophobic compound, which absorbs the liquid nitrogen to ensure dry, spill-free vapor-phase shipping. In addition, a protective shipping carton is available for this model to ship your samples with a “non-hazardous” classification throughout the world, thus reducing costs and helping to assure sample viability.
This model is compliant to IATA Dangerous Goods Panel (DGP) Special Provision A152 for transportation of non-infectious biological samples.
$1,516.00 $1,288.60
- Static Holding Time Days: 21
- Weight Empty lb. (kg): 11.0 (5.0)
- Weight Charged vapor lb. (kg): 17.0 (7.7)
- Weight Full liquid lb. (kg): 21.0 (9.5)
- Maximum Storage Capacity
- Number of Canisters: 1
- No. of 1/2 cc Straws 10/cane: 120
- No. of 1/2 cc Straws 1 Level Bulk: 210
- No. of 1/4 cc Straws 1 Level Bulk: 452
- No. of 1.2 & 2.0 ml Vials 5/cane: 40
- No. of 1.2 & 2.0 ml Vials 6/cane: 48
- No. of blood bags stored 4R9953: N/A
- Performance
- Liquid Nitrogen Capacity L: 4.3
- Static Evaporation Rate L/day: 0.20
- Unit Dimensions
- Neck Opening in (mm): 2.00 (51.0)
- Overall Height in (mm): 19.4 (492)
- Outside Diameter in (mm): 8.70 (222)
- Canister Height in (mm): 11.0 (278)
- Canister Diameter in (mm): 1.81 (46)
*Straws, vials and protective shipping container not included.
*Protective Shipping Container NOT INCLUDED, please purchase part: 20750409
- Low liquid nitrogen consumption
- Convenient lightweight package
- Durable, tamper-proof lid design
- High strength neck tube reduces liquid nitrogen loss
- Strong, lightweight aluminum construction
- Advanced chemical vacuum retention system
- Hydrophobic liquid nitrogen absorbent system
- CHARGES IN LESS THAN TWO HOURS
- Warranty: 3 year vacuum
-
Medium Aluminum Dewar Phase Separator for MVE LN2 Systems (1 5/16″ x 3″)
Item #: 10615877$120.00$102.00 -
Cool Reach for Retrieving Ampules and Canes
Item #: 13051579$280.00$238.00 -
Short Liquid Measuring Stick (24″)
Item #: 5613469 $40.00 -
Transfer Hose for MVE LN2 Systems (4′ x 1/2″ Dia.)
Item #: 9713159$226.00$192.10 -
Transfer Hose for MVE LN2 Systems (6′ x 1/2″ Dia.)
Item #: 9713109$301.00$255.85 -
Replaceable Neck Cork for MVE SC 4/3V & CryoShipper QWick 14/48 Liquid Nitrogen Systems (Dewar Neck Opening Diameter: 2″)
Item #: 10507083$126.00$107.10 -
Small Aluminum Dewar Phase Separator for MVE LN2 Systems (11/16″ x 1 1/2″)
Item #: 10615885$67.00$56.95 -

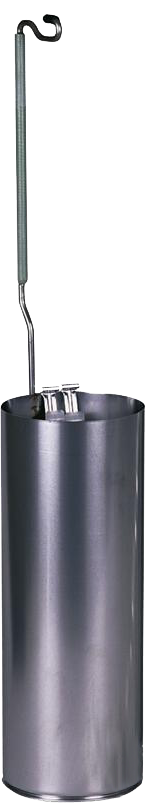

11″ Canister for MVE SC 4/3V and CryoShipper QWick 14/48 Liquid Nitrogen System
