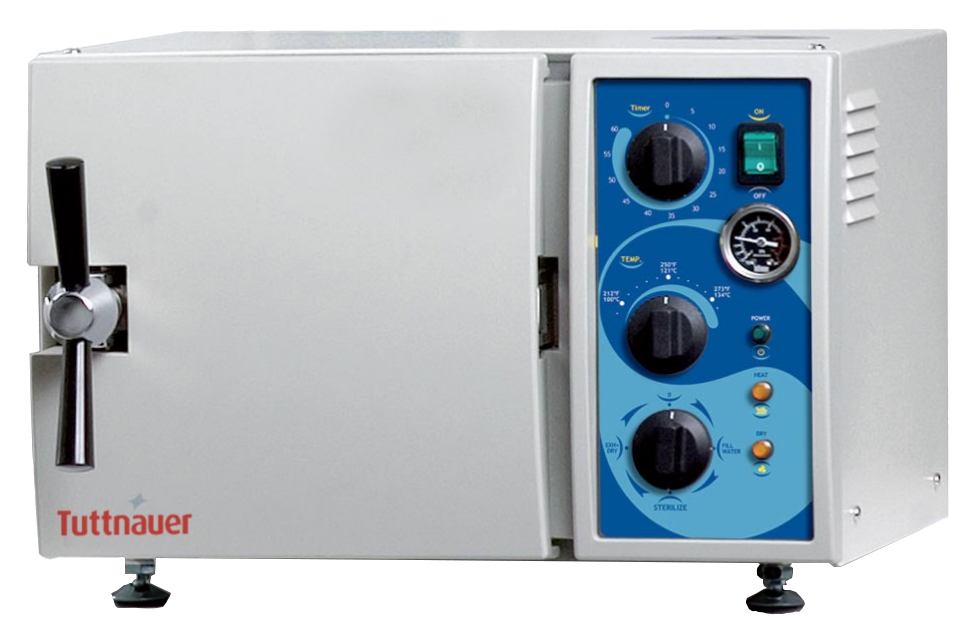

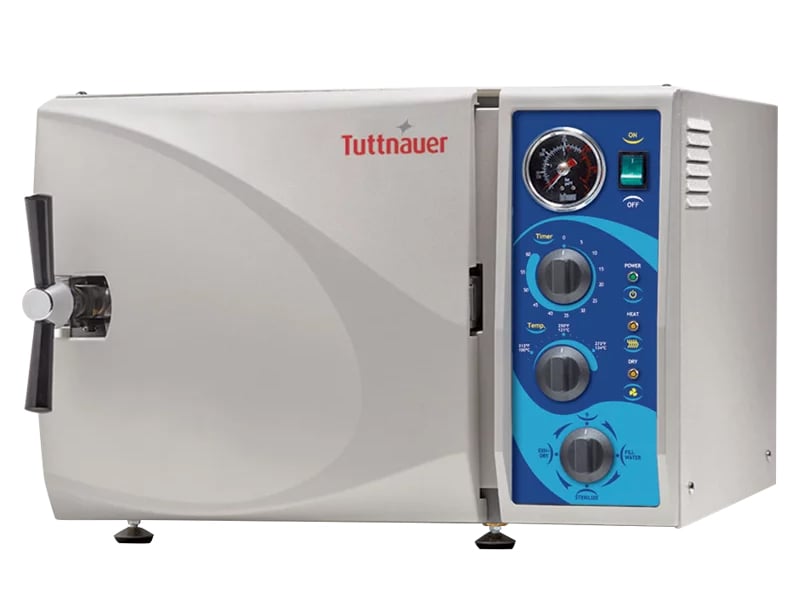

Tuttnauer Benchtop Analog Steam Sterilizer Model 1730M (120V)
Item#: 023210002The Tuttnauer 1730M is a 7.5L benchtop laboratory autoclave for repeatable steam sterilization of media, glassware, instruments, and waste. Its front-loading stainless steel chamber combines laboratory capacity with an advanced multicolor control display. Configurable options support liquid, biohazard, waste, drying, and fast-cooling applications.
$6,148.45 $5,718.06
- Power Supply: 1,050W
- Current: 11A
- Phase: 1
- Chamber Volume: 2 gallons (7.5L)
- Chamber Dimensions (Dia. X D): 7” x 12” (17.8 cm x 30.5 cm)
- Tray Dimensions (W x D x H): 4.7” x 11.6” x 0.8” (12 cm x 29.5 cm x 2 cm)
- Overall Dimensions W x D x H): 17” x 16” x 12.5” (43.2 cm x 40.6 cm x 31.8 cm)
- Bottom Tray to Top of Chamber: 5”
- Reservoir Volume: 0.8 gallons (3L)
- Minimum Water: 0.21 gallons (0.8L)
- Number of Stainless Steel Trays: 3
- Net Weight: 55 lbs (25kg)
- 4980 Erlenmeyer Flask Size: 125ml = 5
- Nema Plug: 120V (5-15R)
- Max. Allowable Working Pressure: 2.76 bar (40 psi)
- Air Pump Fuse: 2.0 amps
- 60-minute cycler timer
- Temperature selection from 100C to 134C (212F to 273F)
- Combination pressure and temperature gauge with peak indicator
Standard Operating Features:
- Self-contained design eliminates external plumbing and hardwiring for easy installation
- Simple operation
- ASME- stamped, 316 L stainless steel chamber ensures long-lasting reliability, durability and high corrosion resistance
- Fast/slow exhaust; fast exhaust allows quick cycle time of solids and slow exhaust prevents media and liquid boil-over
- Closed-door drying system maintains sterility
- Drying cycle removes residual moisture after sterilization
- Continuous pressure purge eliminates air pockets and ensures thorough, even sterilization
- Large-capacity reservoir provides ample water supply to avoid frequent fill-ups; the water drain is conveniently located on top to allow for quick and easy cleaning of the reservoir
- Automatic shut-off feature saves energy
- Industry leading 3 year warranty
- Standard Safety Features:
- Heat-insulated, double-locking door protects against accidental burns; the door cannot be opened while the chamber is under pressure
- Automatic low water level shut-off prevents damage to the heater elements if there is insufficient water for the sterilization cycle
- Over-temperature cut-off and over-pressure valve ensures safe operation
- UL- and CSA-approved
