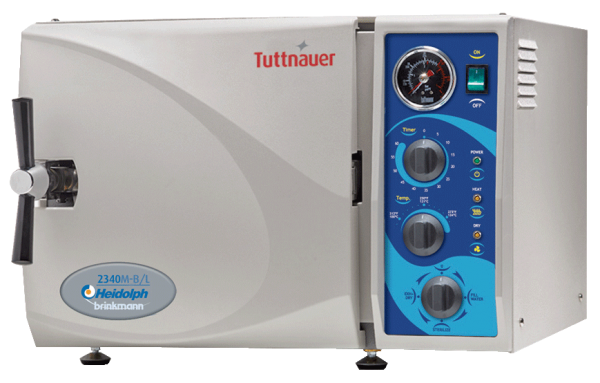

Tuttnauer Benchtop Analog Steam Sterilizer Model 2340M (120V)
Item#: 023210100Tuttnauer* benchtop autoclaves provide a safe benchtop steam sterilization solution for your lab. This economical, manually operated model features analog controls and gauges for simple operation.
*Distributed in the US under Heidolph
$6,561.47 $6,233.40
- Power Supply: 1,400W
- Chamber Dimensions (Dia. X D): 9” x 18” (22.9 cm x 45.7 cm)
- Tray Dimensions (W x D x H): 6.7” x 16.3” x 0.8” (17 cm x 41.5 cm x 2 cm)
- Overall Dimensions (W x D x H): 20” x 20” x 15” (50.8 cm x 50.8 cm x 38.1 cm)
- Bottom Tray to Top of Chamber: 6”
- Reservoir Volume: 0.8 gallons (3L)
- Minimum Water: 0.21 gallons (0.8L)
- Number of Stainless Steel Trays: 3
- Net Weight: 79 lbs (36kg)
- 4980 Erlenmeyer Flask Size:
- 125ml = 12
- 500ml = 4
- Nema Plug: 120V (5-15R)
- Max. Allowable Working Pressure: 2.76 bar (40 psi)
- Air Pump Fuse: 2.0 amps
- Current: 12A
- Phase: 1
- Chamber Volume: 5 gallons (19L)
- 60-minute cycler timer
- Temperature selection from 100C to 134C (212F to 273F)
- Combination pressure and temperature gauge with peak indicator
Standard Operating Features:
- Self-contained design eliminates external plumbing and hardwiring for easy installation
- Simple operation
- ASME- stamped, 316 L stainless steel chamber ensures long-lasting reliability, durability and high corrosion resistance
- Fast/slow exhaust; fast exhaust allows quick cycle time of solids and slow exhaust prevents media and liquid boil-over
- Closed-door drying system maintains sterility
- Drying cycle removes residual moisture after sterilization
- Continuous pressure purge eliminates air pockets and ensures thorough, even sterilization
- Large-capacity reservoir provides ample water supply to avoid frequent fill-ups; the water drain is conveniently located on top to allow for quick and easy cleaning of the reservoir
- Automatic shut-off feature saves energy
- Industry leading 3 year warranty
- Standard Safety Features:
- Heat-insulated, double-locking door protects against accidental burns; the door cannot be opened while the chamber is under pressure
- Automatic low water level shut-off prevents damage to the heater elements if there is insufficient water for the sterilization cycle
- Over-temperature cut-off and over-pressure valve ensures safe operation
- UL- and CSA-approved
