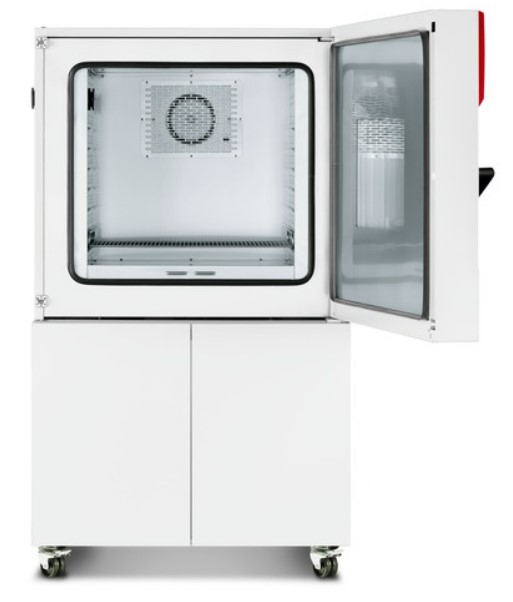

BINDER MKFT 240 Dynamic Climate Chambers for Rapid Temperature Changes | Humidity Control & Extended Low-Temp Range | 8.05 cu ft
Item#: 9020-0383The BINDER MKFT 240 dynamic climate chamber provides precise temperature and humidity control for demanding testing applications, with a temperature range of -70°C to +180°C and humidity control from 10% to 98% RH. APT.line™ preheating technology, programmable ramp functions, condensation protection, and cascade compressor cooling support rapid temperature changes and reliable environmental conditions. An intuitive touchscreen controller, internal data logging, USB and Ethernet connectivity, integrated chart recorder, and multiple safety features simplify operation, monitoring, and documentation.
$65,222.00 $61,960.90
- Temperature range: -70 to 180 °C
- Temperature uniformity dependent on set value: 0.2 to 1.8 ± K
- Temperature fluctuation dependent on set value: 0.1 to 0.5 ± K
- Average heating-up rate according to IEC 60068-3-5: 5. K/min
- Cooling down time from 180°C to -70°C: 110 min
- Average cooling down time according to IEC 60068-3-5: 4.2 K/min
- Temperature range with humidity: 10 to 95 °C
- Humidity range: 10 to 98 % RH
- Temperature fluctuation with humidity dependent on set value: 0.1 to 1.5 ± K
- Humidity fluctuation with humidity dependent on set value: ≤2,5 ± % r.F.
- Max. heat compensation at 25°C and 90% RH: 400 W
- Interior volume: 228L
- Net weight of the unit (empty): 415kg
- Load per rack: 30kg
- Permitted load: 70kg
- Wall clearance back: 300mm
- Wall clearance sidewise: 200mm
- Internal Dimensions (wxhxd): 735mm x 700mm x 443mm
- Temperature range: -70 °C to +180 °C
- Humidity range: 10 % to 98 % RH
- Integrated water-storage tank, 20 liters
- 4 zero-voltage relay contacts
- APT.line™ preheating chamber technology
- Programmable condensation protection for test material
- Intuitive touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out in open format via USB
- Heated viewing window with LED interior lighting
- Humidity regulation with capacitative humidity sensor and vapor humidification
- BINDER Multi Management Software APT-COM™ Basic Edition
- Troubleshooting system with visual and audible alarms
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- Access port with silicone plug: 50 mm, left
- 4 castors, two with brakes
- Computer interface: Ethernet
- Adjustable ramp function
- Integrated chart recorder
- Real-time clock
- Door heating
- Alarm notification in the event of insufficient water in fresh water tank
- 1 stainless steel rack
- Complete safety connection kit for water supply and drainage, up to 1 m in height
- Inner chamber made of stainless steel
- CFC-free refrigerants R-452A and R-23
- Cooling with cascade compressor cooling unit
